Installation
Using ENTASYS 200 Optional Brackets
The Universal Mounting Kit (E200-UMK) may be used with any of the four ENTASYS 200 Series
Models. The UMK is a rugged bracket that can be attached to third-party mounting products. The

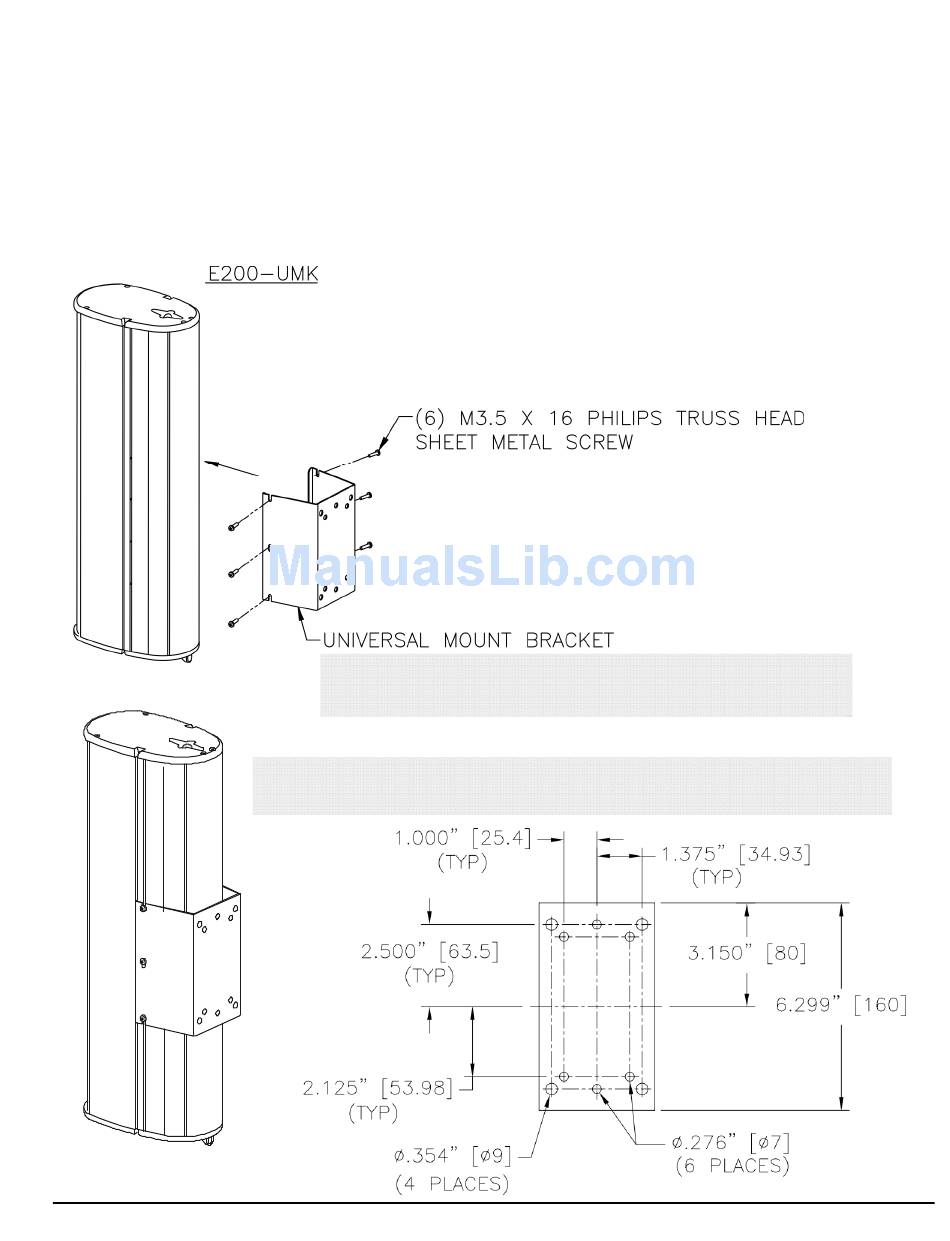

illustrations below show how the E200-UMK is attached. Tighten all fasteners firmly, but do not
over-tighten to avoid stripping the threads. Always use the safety attachment point at the top of
the loudspeaker enclosure for a safety cable. Not intended as a primary suspension point.
UMK Installed
The UMK Bracket is designed to flush mount a single ENTASYS 200
loudspeaker enclosure tightly against a wall or ceiling.
The E200-UMK is predrilled with standard spacings to accommodate third-party
(30 lb. or 60 lb. working loads) mounting products. See bolt pattern below.
ENTASYS 200 Installation/Operation Manual — Page 19
