Altronix AL602ULADA Application Manual page 5

7. Using a Single FACP Output:
When only one FACP output is available, you may connect both Input1 and Input2 to it. Wire [RET1+ and RET1- to
INP2+ and INP2-]. Both visual and audible notification appliances will be activated simultaneously (Fig. 7).

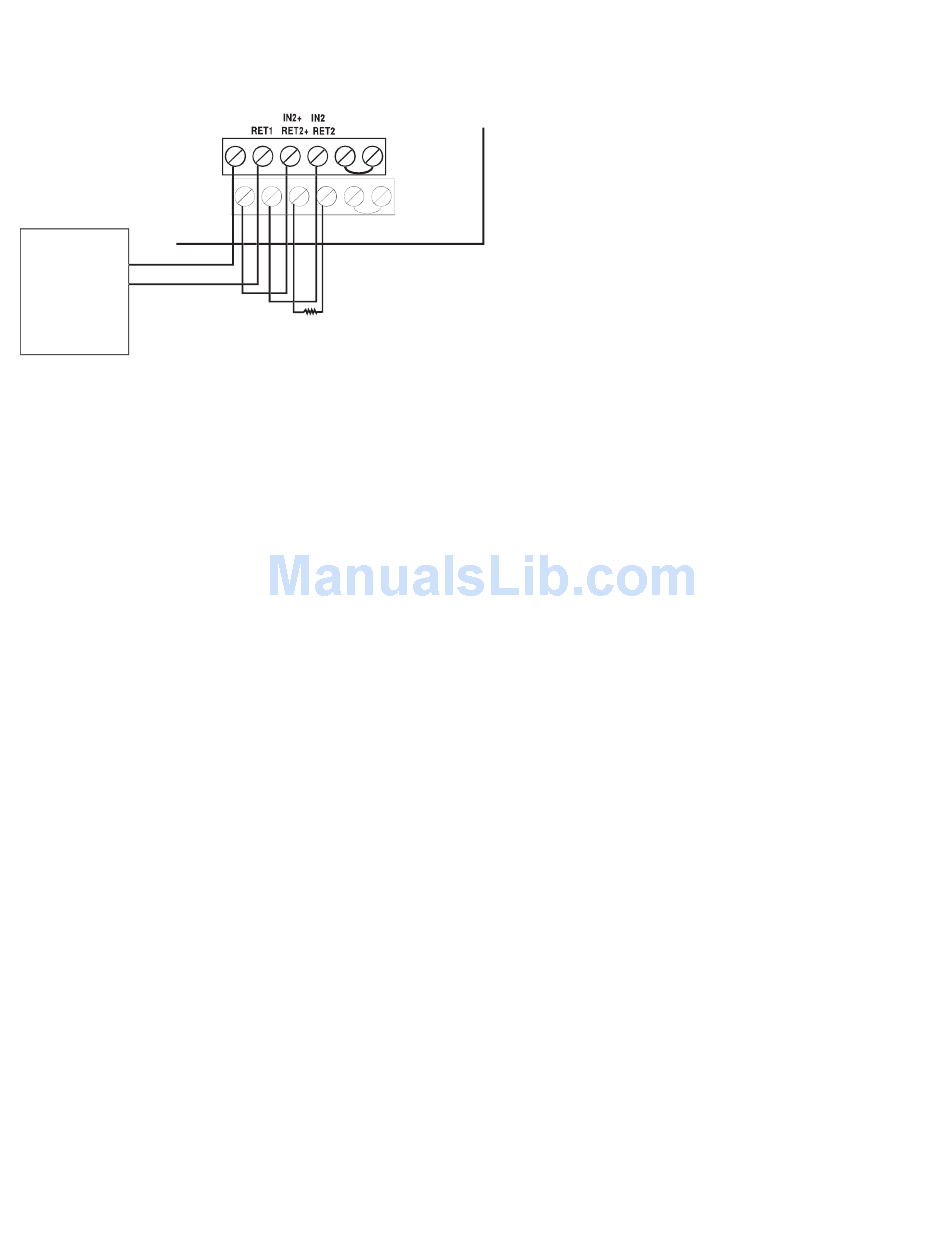

Fig. 7A
IN1+ IN1--
-- C "DRY1" NC
RET1+ --
-- C "DRY2" NC
UPPER TERMINALS
LOWER TERMINALS
FACP
EOL
or
Next Device
