ITEM NO.: HE10M 10 x 10 HDMI Matrix Switcher
HE10M 10x10 HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The 10x10
HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D
support, UltraHD 4K2K, and with 2U Rack mountable for professional installations. In addition, the
allows for effortless control of up to 10 devices through Ethernet control, Android/IOS App
HE10M
Control, IR remote control, RS-232 and the front panel.
Features:
Connect up to 8 HDMI and 2 HDBaseT source to 8 x HDMI and 2 HDBaseT display monitors.
HDMI 1.4 with 3D, HDCP & DVI Compliant.
High definition video up to 4K2K@24/25/30Hz@8bits, 1080p@60Hz@12bits
Easy to use front panel control of switching or using the included remote control.
Built in Ethernet Control and
Built in RS232 console port to select input/output.
Input/Output status could be displayed at front panel LCM & LED.
Optional CAT5e/CAT6 Transmitter Model:
HE02EIT: 70m HDMI and IR mono directional Transmitter
HE02ET: 100m HDMI Transmitter
HE02T :
100m HDMI, bidirectional IR and RS232 Transmitter
HE02NT :
100m HDMI, bidirectional IR and RS232,Ethernet Transmitter
Optional CAT5e/CAT6 Receiver Model:
HE02EIR: 70m HDMI and IR mono directional Receiver
HE02ER: 100m HDMI Receiver
HE02R :
100m HDMI, bidirectional IR and RS232 Receiver
HE02NR :
100m HDMI, bidirectional IR and RS232,Ethernet Receiver
HDMI Matrix Switcher Series
Android/IOS App Control.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE10M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SC&T HE10M

Summary of Contents for SC&T HE10M

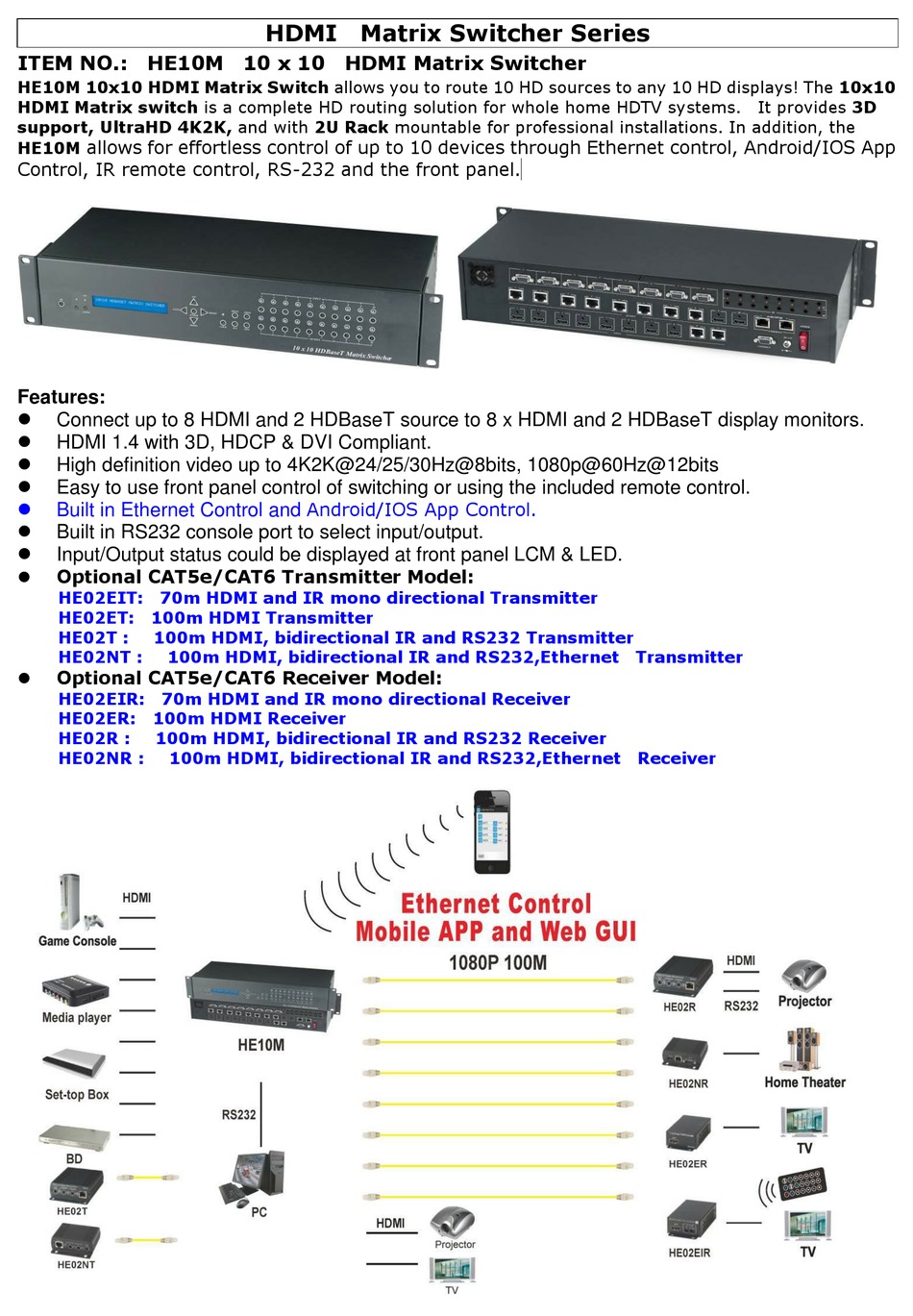

  • Page 1 ITEM NO.: HE10M 10 x 10 HDMI Matrix Switcher HE10M 10x10 HDMI Matrix Switch allows you to route 10 HD sources to any 10 HD displays! The 10x10 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support, UltraHD 4K2K, and with 2U Rack mountable for professional installations.

  • Page 2: Hdbaset

    1.0 HE10M Panel View: 2.0 HE10M Connection View: BD PLAYER IR Remote Control RS232 Control IR Receiver Cable IR Emitter Cable ETHERNET (IR-CR01) (IR-CT01) RS232 *8 IR TX IR RX RJ45*2 IR Receiver 10M/100M/1Gbps CONSOLE RS232 HDBaseT HDBaseT HDMI HDBaseT...

  • Page 3: Keypad And Leds

    3.0 Keypad and LEDs 3.1 Back Panel Switch: POWER Power on Power off 3.2 Back LED Indication: 10M/100M/1G bps Yellow 10M/100M bps link speed Green 1G bps link speed 3.2 Front LED Indication: BLUE Power on Standby LED off Power Off INPUT 1~10 BLUE...
  • Page 4 3.3 Panel button Function: OUTPUT 1~10 ＆ INPUT 1~10 Press OUTPUT 1~10 to select output port then the input at IN line of LCM will blink, press INPUT 1~10 to select input port to switch the channel ALL : Press ALL button, the IN line of LCM will blink, press INPUT 1~10 to select input port to all output port.

  • Page 5: Main Menu Option

    3.3 LCM Panel Function: Power on Main Screen When the power is on and the main screen appears 10X10 HDMI MATRIX Channel Setting on Main Screen The Matrix will jump to channel setting screen after 10 seconds, press the MENU key to enter the main 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10...
  • Page 6 4.0 LCM Main MENU Function Operations: 4.1 SWITCH：(Default: 1 2 3 4 5 6 7 8 9 10) This function is used to switch the input/output port. Enter the SWITCH menu. Press the ENTER key, then the LCM second line INPUT will flash. Press LEFT or RIGHT button to select the output to be modified.

  • Page 7: Subnet Mask

    4.3 Ethernet * IP Address Subnet Mask Gateway DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.10) IP Address 192.168. 0.10 This function can be setup MATRIX host intranet ”IP Address”, press the ENTER, the left-most number of second row will flash, then press the UP or DOWN button to change the numbers, , press LEFT or RIGHT to move to another location, the move to a position number will flash, press ENTER to complete the setting.
  • Page 8 DHCP Client: (Default Disable) DHCP Client Disable When DHCP Clients setup at “Enable”, the MATRIX host will automatically get IP Address, Subnet Mask, Gateway, if setup at “Disable”, the MATRIX Host IP Address need go through “ ETHERNET” menu to set IP Address, Subnet Mask, Gateway, to press the ENTER, the second row will flash, then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the setting.

  • Page 9: Copy Mode

    5.1 channel. After enter BUILD-IN MODE menu, press UP or DOWN key to select 1080P LPCM-2CH or 1080P LPCM-5.1CH, then press ENTER to confirm setting. 1080P LPCM-2CH 1080P LPCM-5.1CH HE10M HDMI – 1 Player - 1 EDID HDMI –...

  • Page 10: Edid Mode

    4.4.3 I. EDID MODE In this mode, the MATRIX checks all the connected monitors and copies the EDID of the monitor that presents the lowest resolution. This EDID is then transmitted to all sources. E.g., if there is a monitor 1080p and a monitor 720p, the matrix transmits to the sources the EDID of the 720p monitor.

  • Page 11: Firmware Version

    4.5 REMOTE ID：(Default IR ID: 4) This function must be set to match the Matrix remote control IR01 with the matrix itself. A conflict with other devices remote control is avoided. After entering MATRIX IR ID menu, press ENTER, the LCM LINE 1 number will flash. Then Press UP or DOWN button to select the number, and then press ENTER to confirm.
  • Page 12 FIX MODE is one to one transmission, RS-232 port 1 only work with HDBaseT port 1,  RS-232 port 2 only work with HDBaseT port 2, and so on… ＊ FIX MODE MATRIX MODE HE10M RS232 Cable HE02R - 1 Projector RS232 - 1 HDBaseT - 1...
  • Page 13 FIX MODE is one to one transmission, IR port 1 only work with HDBaseT port 1, IR port  2 only work with HDBaseT port 2, and so on… ＊ FIX MODE MATRIX MODE HE10M HE02R - 1 IR - 1 HDBaseT - 1 HE02R - 2 IR - 2...
  • Page 14 DOWN button to select O or X. Then press ENTER to confirm setting. HDBaseT 1 2 3 4 5 6 7 8 IR TX O X O 0 0 0 0 0 O : on X : off HE10M IR-CR01 IR-CT01 HE02R - 1 HDBaseT - 1 HE02R - 2...
  • Page 15 O or X. Then press ENTER to confirm setting. HDBaseT 1 2 3 4 5 6 7 8 IR RX O X O 0 0 0 0 0 O : on X : off HE10M Player IR-CT01 HE02R - 1 IR-CR01 Remote Control...
  • Page 16 0 to 9, total 10 groups. (See 5.2) These settings on IR01 remote control have to be done the first time you use the IR01 or when you change the batteries. IR01 HE10M ＋ ＋ HDBaseT - 1 HDBaseT - 2 ＋...
  • Page 17 5.0 Remote Control Function (IR01): 5.1 To command the matrix locally, setup the remote control IR01 ID with the same code of the Matrix (see 4.2). The default code is 4. (Power+4) 5.2 Warning: These settings have to be done the first time you use the IR01 or when you change the batteries.
  • Page 18 (same as Matrix) no function Local side (HE10M Matrix) remote control quick key operation: For example: to connect output port 1 to input port 4, press the quick key 1 (OUTPUT 1) and then press the quick key 4 (INPUT 4).
  • Page 19 6.0 REMOTE Control Function： HE10M support RS232 and TCP/IP control by same command as below: For RS232 CONSOLE: Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5)
  • Page 20 DHCP△[y] DHCP client on/off IP_ADDRESS△[x.x.x.x] Set Matrix IP address SUBNET_MASK△[x.x.x.x] Set Matrix subnet mask GATEWAY△[x.x.x.x] Set Matrix gateway MEDIA_TYPE△[z] Network speed select MAC_FILTER△[y] Mac filter on/off STATUS Show connection status VERSION Show firmware version HELP Help [Symbol] [Parameter] ------------------------- ------------------------------------------- 01~10, ff=ALL 00=off, 01~10=1~10 FIX | MATRIX...
  • Page 21 8. Brown DATA3 - Caution: 1. First time to use HE10M remote control or change new batteries must set up IR ID. 2. The wiring must away from any equipment with electromagnetic wave, i.e.: microwave, mobile phone, radio equipment, high voltage, Fluorescent light fixtures, power lines, etc.

  • Page 22: Web Control Function

    7. Web Control Function: Initial IP Configuration 1. Setup MATRIX IP Address same as your PC with same domains.(Default 192.168.0.10) MATRIX IP Address method, please refer. to “ETHERNET” Chapter 2. Input IP Address on a web page, you could link to the Web UI of the MATRIX host. 3.
  • Page 23 Advanced:  IP address : Change IP address  Subnet mask : Change Subnet mask  Gateway IP : Change Gateway IP  Media Type : Change detect 10 / 100 / Auto  DHCP Client : When setup at Enable, the MATRIX host will automatic get IP Address、 Subnet Mask、Gateway, If setup at Disable, the MATRIX host IP Address、Subnet Mask、...
  • Page 24 Aliases:  Aliases page can change input/output name, enter Apply to finish the setting after change The new name will update and correspond to SWITCH SETTING page Output / Input.  Press Back jump back to advanced page. MAC Filter: ...
  • Page 25 Scene:  Save : Save 10 set of channel settings, automatically back to main screen after save  Load : Reload 1 of the channel settings  Back : Back to Advanced page...
  • Page 26 8. Android APP Function: APP name: Matrix Controller System Requirement Android 4.0 and up Size: 1.2M Language: English, Traditional Chinese, Simplified Chinese Google Play Download Link https://play.google.com/store/apps/details?id=sct.com.matrixcontroller Google Play Download QR code System Setting Connect mobile phone to Wi-Fi and set the IP/ subnet mask same with matrix network segment Default IP address of 10 by 10 matrix is 192.168.0.10 Default IP address of 4 by 4 matrix is 192.168.0.200 Default subnet mask is 255.255.255.0...
  • Page 27 Main Page: When first time enter the APP will see the main page Bottom left「+」to add matrix Bottom right「Info」to show information Scan Device Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list Touch the IP in list to enter「Add Device」page...
  • Page 28 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...

  • Page 29: Modify Device

    Modify Device Press the matrix name to show pop-up dialog Touch「Modification」to enter modification page. Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices...
  • Page 30 Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 31 Return to Modification page you will see the output have been changed Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 32 Output Channel Switching Left : icon for matrix Center upper big font for matrix name, Center middle small font for matrix IP Center lower small font for matrix type (4 by 4 or 10 by 10) Notice: if shows「Specify the host does not exist」means the matrix not exist Touch the block of matrix to enter Controler page Top right 「Refresh」to renew the status of matrix...
  • Page 33 Touch input device to switch or ON/OFF icon to power on/off It will return to Controller page after switching and refresh the status of channel...
  • Page 34 Save Scene In Controller page touch bottom left「Save Scene」to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically. Notice: if it shows”Please update device firmware” means your matrix do not support this function, please upgrade your firmware to enable this function...
  • Page 35 Load Scene In Controller page touch bottom right「Load Scene」to enter Load Scene page Touch scene column to load saved channels setting for all output It will return to Load Scene page automatically. (Default is Output 1 to Input 1, Output 2 to Input 2 and so on…) Notice: if it shows”Please update device firmware”...
  • Page 36 Delete Matrix Press the block of matrix in Controller page to show pop-up dialog then touch「Delete」 Touch「Delete」to delete the matrix...
  • Page 37 9. iOS APP Function: iTunes Download Link https://itunes.apple.com/us/app/matrix-control/id904487754?l=zh&ls=1&mt=8 iTunes Download QR code System Setting Connect mobile phone to Wi-Fi and set the IP/ subnet mask same with matrix network segment Default IP address of 10 by 10 matrix is 192.168.0.10 Default IP address of 4 by 4 matrix is 192.168.0.200 Default subnet mask is 255.255.0.0 You could also set to DHCP mode, please refer user manual...
  • Page 38 Main Page When first time enter the APP will see the main page Top left「+」to add matrix Top right 「Edit」to enter delete mode Bottom right「Info」to show information Scan Matrix Touch「+」button at main screen to enter「Scan Device」page Touch bottom left「Scan Device」to start scan Touch bottom right pen icon to input the IP address manually Add Matrix After scanning it will show all matrixes in the list...
  • Page 39 Enter the name of matrix then touch「Add Device」to finish setting Notice：Name should be unique, not allow duplicate It will show「+」icon in front of the IP address when finished Return to main screen you will see the matrix which just add...
  • Page 40 Modify Device Touch the gear icon to enter Modification page Yellow block shows matrix name and icon Green block shows name and icon of output devices Brown block shows name and icon of input devices Touch yellow block to modify matrix name and icon Input the name and select the icon you prefer then touch「Save」to finish...
  • Page 41 Return to Modification page you will see the matrix have been changed Touch green block to modify output name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the output have been changed...
  • Page 42 Touch brown block to modify input name and icon Input the name and select the icon you prefer then touch「Save」to finish Return to Modification page you will see the input have been changed...
  • Page 43 Output Channel Switching Left: icon for matrix Center upper big font for matrix name, Center middle small font for matrix IP Center lower small font for matrix type (4 by 4 or 10 by 10) Right gear icon: enter Modification page Notice: if shows「Specify the host does not exist」means the matrix not exist Touch the block of matrix to enter Controller page...
  • Page 44 Touch input device to switch or ON/OFF icon to power on/off It will return to Controller page after switching and refresh the status of channel...
  • Page 45 Save Scene In Controller page touch bottom left 「Save Scene」 to enter Save Scene page Touch the Scene column to show pop-up dialog Touch 「Save」to save current channels setting for all output It will return to Save Scene page automatically. Notice: if it shows “Please update device firmware”...
  • Page 46 Load Scene In Controller page touch bottom right「Load Scene」to enter Load Scene page Touch scene column to load saved channels setting for all output It will return to Load Scene page automatically. (Default is Output 1 to Input 1, Output 2 to Input 2 and so on…) Notice: if it shows”Please update device firmware”...
  • Page 47 Delete Matrix Touch top right「Edit」button to enter delete mode Touch 「-」button in the left of matrix Touch「Delete」to delete the matrix Touch top right 「Done」to exit...

  • Page 48: Specification

    Specification: ITEM NO HE10M HDMI Video Support 4096x2160p@24/25/30Hz 8bit RGB444, 1080p@60Hz 12bit, 3D Up to LPCM 7.1 192KHz、Dolby TrueHD、DTS-HD MA HDMI Audio Support Video Input Interface HDMI Type A x 8, HDBaseT x 2 Video Output Interface HDBaseT x 8, HDMI Type A x 2...
