CyberData 011186 Operation Manual page 23

J1
Operations Guide

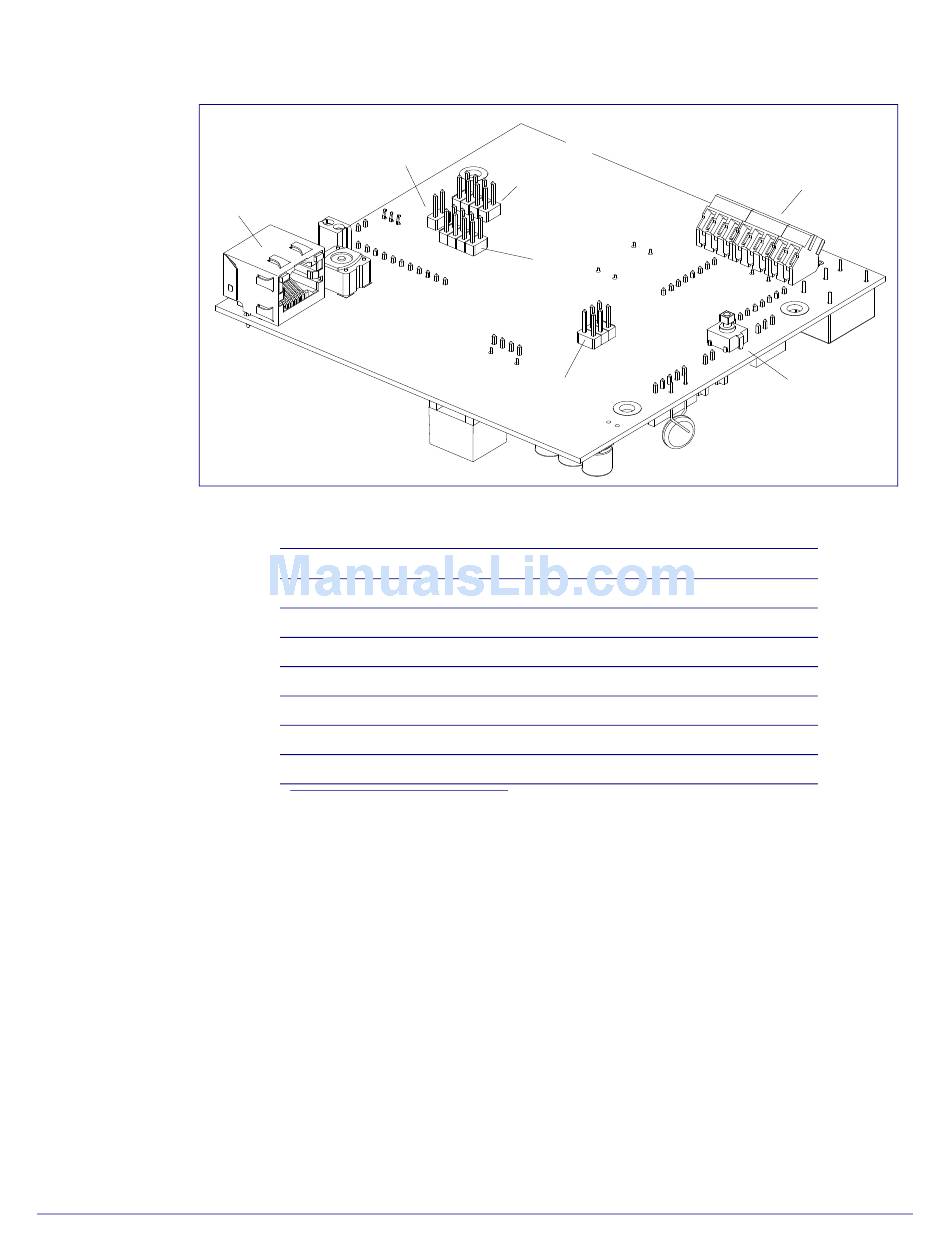

Figure 2-5. Connector Locations
JP1
Table 2-3. Connector Functions
Connector Function
JP1 Reset jumper
J1 PoE Network Connection (RJ-45 ethernet)
J3 Terminal Block (see
J4 Factory Only—Console Port
J5 Factory Only—JTAG
J12 Reserved for factory diagnostics
SW1 RTFM
a.Do not install a jumper. Momentary short to reset. Permanent instal-
lation of a jumper would prevent the board from running all together.
930796B
Installing the VoIP Outdoor Intercom
J12
J5
J4
a
Figure 2-2)
Intercom Setup
J3
SW1
CyberData Corporation
16
