Dimensions

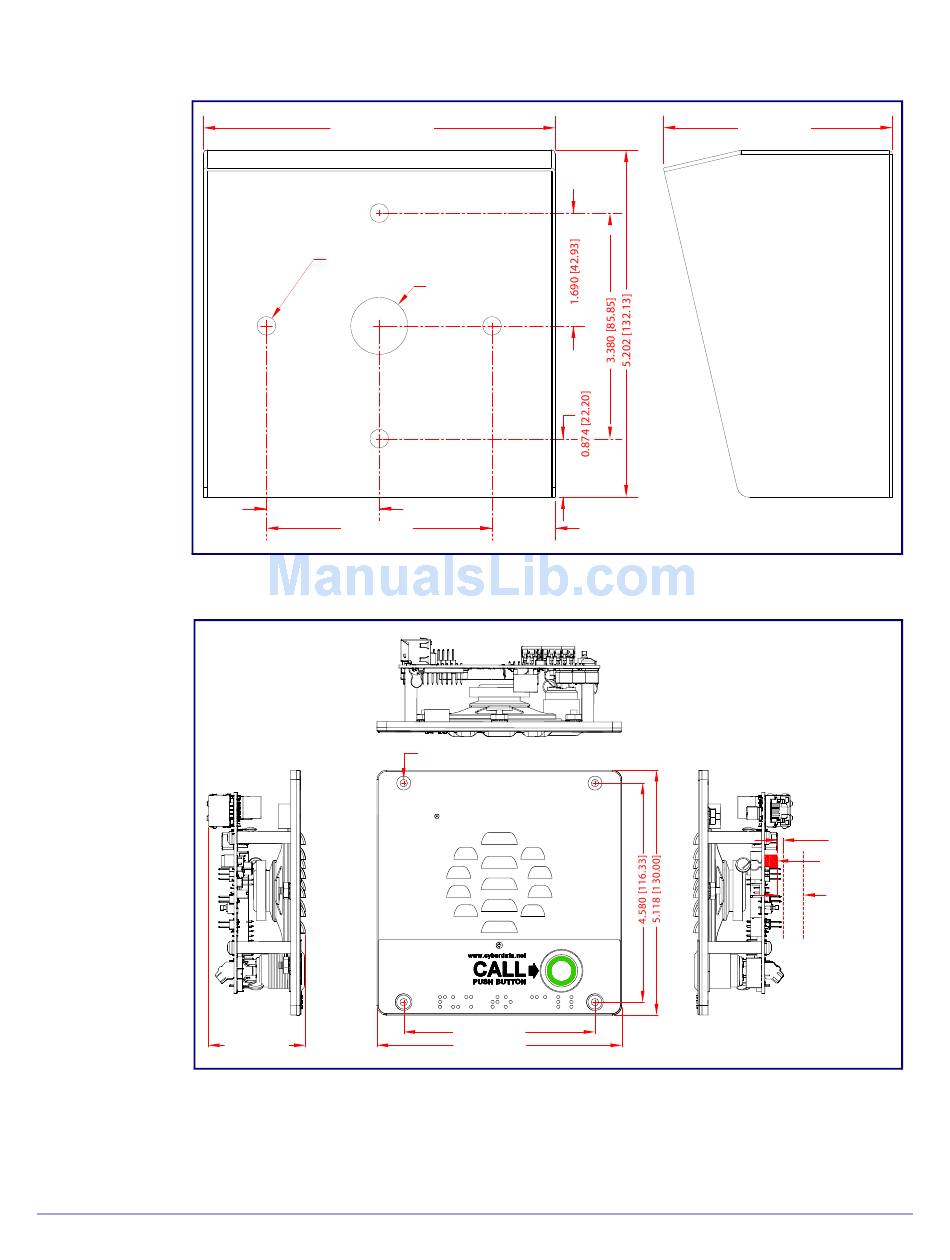

Figure 1-7. Shroud Dimensions and Mounting Hole Locations (shroud sold separately)
5.276 [134.00] 3.434 [87.23]
ø0.280 [ø7.11]
(4 PLACES)
ø0.854 [ø21.69]
1.690 [42.93]
3.380 [85.85] 0.948 [24.07]
Dimensions are in Inches [Millimeter]
Figure 1-8. Unit Dimensions and Intrusion Sensor Range without the Gang Box
*
Effective Range for
Intrusion Sensor to Function
Affix Reflective Surface Above
0.156" [4.0] THROUGH HOLE
Intrusion Sensor
82 DEGREES COUNTERSUNK (4 PLACES)
from 3 mm (Minimum)
to 14 mm (Maximum)
0.118 [3.00]
*
Intrustion
Sensor
0.551 [14.00]
4.000 [101.60]
2.026 [51.47] 5.118 [130.00]
DIMENSIONS ARE IN INCHES [MILLIMETER]
