GB 556/586
50 556

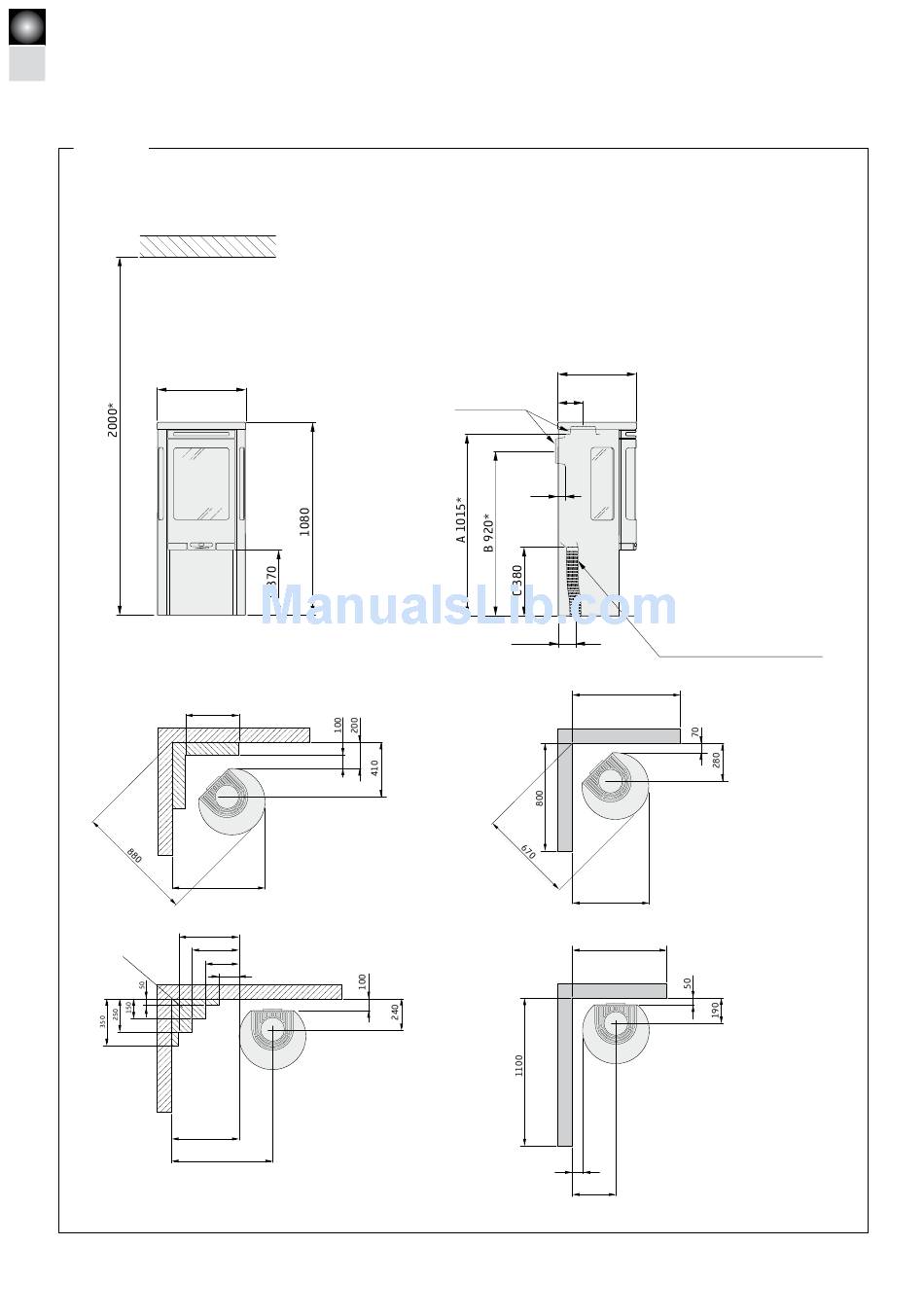

Installation distances
C556
Combustible roof
495
Permitted
area for
combustible
material
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate. Also applies to
separate glass hearth plates (accessory).
** To prevent discolouration of painted non-flammable walls, we recommended the same side distance as to combustible walls.
WHEN INSTALLING TURNTABLE (OPTION) the
following installation distances do not apply.
See the separate turntable instructions.
400
Combustible wall
695
450
350
250
150
Combustible wall
500
750
440
140
Ø150
35
100
800
Fire-retardant wall of
brick or concrete
565
700
Fire-retardant wall of
brick or concrete
70**
320**
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
When top connecting a steel
flue please refer to the relevant
manufacturer's installation
instructions. Observe the safety
distances to combustible material
that steel flues require.
A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
D = height from floor to lower edge
of hatch
Air inlet Ø67
