Technical details

Contura 556 Contura 586
Output
Nominal output
Efficiency
Model 556
Weight (kg) 105
Width (mm) 495
Depth (mm) 440
Height (mm) 1080
Type approved in accordance with:
European standard EN-13240
Swedish environmental and quality marking,
P-marking cert. no.220309
Norwegian standard NS 3059, SINTEF 043-140
German standard DIN Plus, RRF-40 10 2253

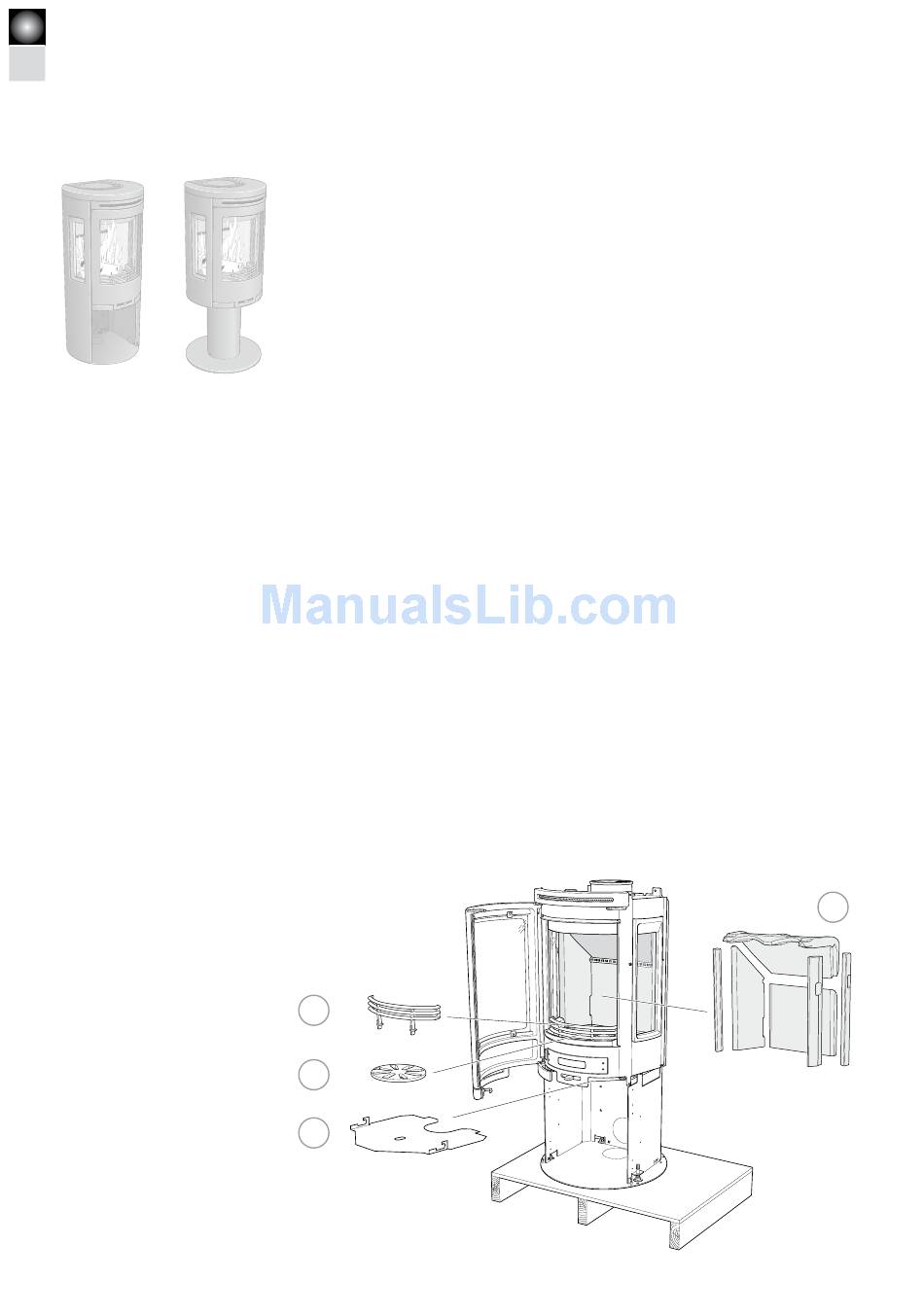

Prior to installation

If the insert needs bedding down
to be moved or if the pillar foot is
to be installed, remove any loose
components. When the stove is
installed reinstall the components in
reverse order.
1 Fire bars
2 Grate disc
3 Heat deflector
4 Hearth cladding (Vermiculite).
Important to remember!
Installation by authorised
technician
This manual contains instructions about
how the stoves must be assembled and
installed. To ensure the function and safety
of the stove, we recommend that the
installation is carried out by an authorised
technician. Contact one of our dealers who
can recommend suitable technicians.
Building application
3-7kW
5 kW
Before installing a stove or erecting a
up to 79%
chimney it is necessary for you to make
a building application permission to your
586
local authority. Ask your local authority for
110
advice regarding building regulations and
495
the application.
440
1160
1
2
3
Structural support
Check that the wood joists are strong
enough to bear the weight of the stove and
chimney. The stove and chimney can usually
be placed on a normal wooden joist in a
single occupancy house if the total weight
does not exceed 400 kg.
Hearth plate
Due to the risk of falling embers, the stove
must be placed on a non-combustible
surface. If the floor under the stove is
flammable, it must be protected by a
hearth plate which covers at least 300 mm
to the front and 100 mm along each side.
The hearth plate can consist of natural
stone, concrete, metal or glass. A painted
metal or glass hearth plate is available as
an accessory for these models.
