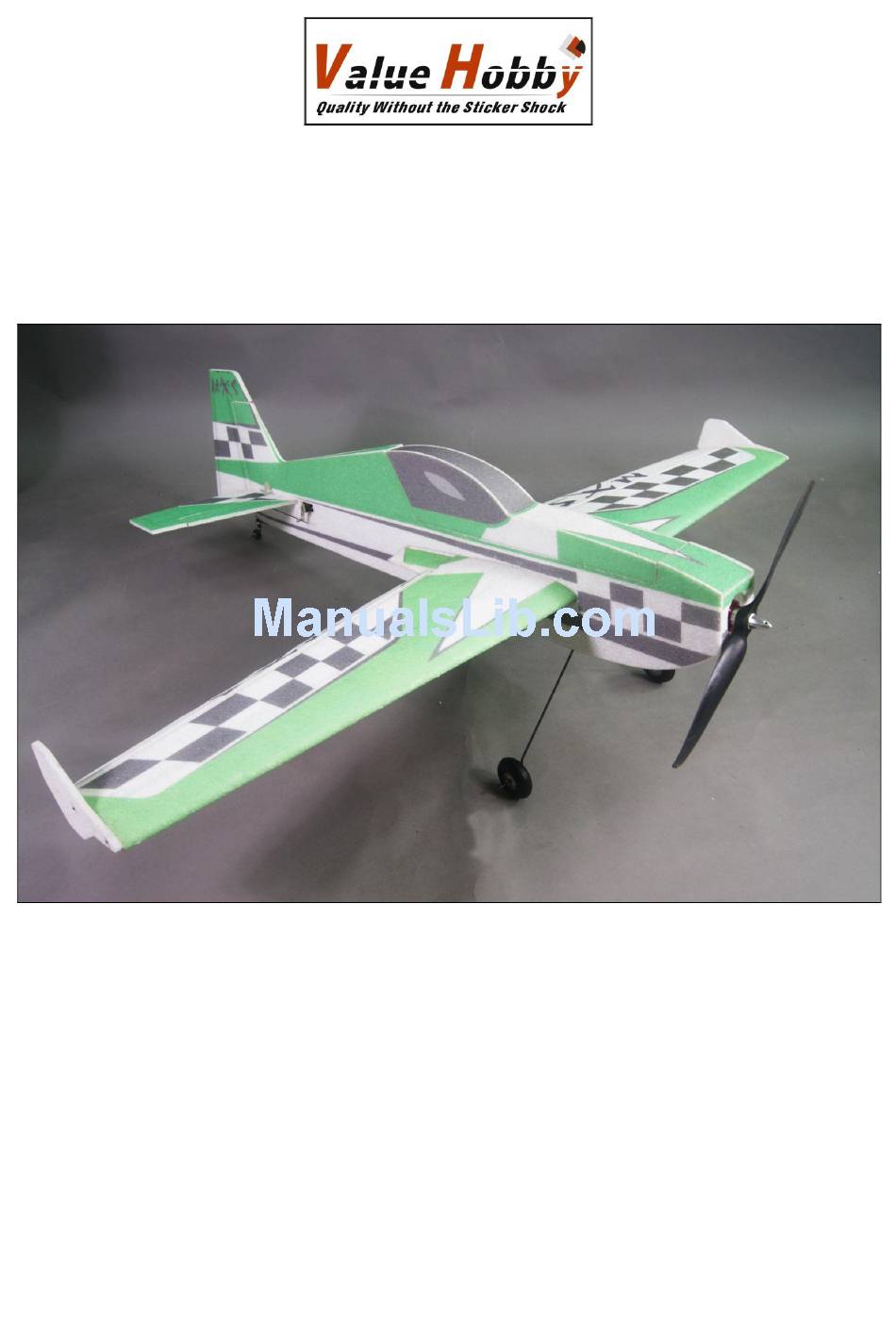

- Page 1 48in EPP MXS Almost‐Ready‐to‐Fly INSTRUCITION MANUAL Specifications Wingspan: 48 in (1230mm) Length: 46in (1170mm) Wing Area: 471sq in (30.4sq dm) Flying Weight: 1.8-2.0lb (800-900g)
-
Page 2: Dear Customer
Dear Customer, Congratulations on your purchase of 48in EPP MXS ARF from Value Hobby. We thank you for your generous support, and hope you enjoy your new airplane. At Value Hobby, we hope to offer competitive prices, good performance, and products that you can setup and use with ease. -
Page 3: Safety In Flying
Small Phillips Screwdriver Set Metric Allen Wrenches Scissors Small Pliers Wire Cutters Masking tape Before Starting Assembly Examination Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. -
Page 4: Recommended Radio Equipment
www.valuehobby.com/48in-mxs-epp.html RECOMMENDED RADIO EQUIPMENT Product Quantity Radio Flysky I6 6CH transmitter and receiver set FLY-RC-4572 Servo Towerpro MG90s metal gear micro servo TWP-SV-0358 Servo Extension Universal (Futaba/JR) Servo Extension 26AWG 12in AMS-AC-0560 Y-Harness Universal (Futaba/JR) Servo Y-Harness 26AWG 6in AMS-AC-2397 RECOMMENDED POWER SETUP Product Motor... - Page 5 www.valuehobby.com/48in-mxs-epp.html Main Parts of Airplane Fuselage x 1 Wing panel x 2 Aileron x 2 Horizontal Stabilizer x 1 Vertical Stabilizer x 1 Elevator x 1 Rudder x 1 SFG x 2...
- Page 6 www.valuehobby.com/48in-mxs-epp.html Small Parts and Accessories: Main landing gear x 1 Plywood inserts x 1 Wheel tail assembly x 1 Plywood bracket x 1 450mm Wing tube x 1 Wing retainer hook x 2 Rubber band x 4 Long servo arm x 4 Control horn x 4 1.8 x 150mm pushrod x 4 M2 x 6mm screws for servo arm x 8...
- Page 7 www.valuehobby.com/48in-mxs-epp.html Section1. Aileron and Aileron Servo installation Step1. Locate the wing panel, aileron and small trailing edge foam. Step4. Apply the epoxy to the control horn, and insert it to the plywood stiffener. Step2. Use the foam glue to glue the foam piece to the wing panel.
- Page 8 www.valuehobby.com/48in-mxs-epp.html Step6. Use two M2*6mm screws and two nuts Step9. With aileron centered, connect the to install the long servo arm to the stock servo pushrod to the servo arm. arm. Install the pushrod connector to the long servo arm. Step10.
- Page 9 www.valuehobby.com/48in-mxs-epp.html Section2. Horizontal stabilizer and vertical Step4. Insert the wing tube into the fuselage stabilizer installation and make it centered. Slide the stabilizer in the place and measure to Step1. Cut 10mm length foam piece from the make sure the distance from the tube to the rudder post stabilizer is the same on the both side, and make sure the stabilizer is centered.
- Page 10 www.valuehobby.com/48in-mxs-epp.html Section3. Tail Wheel and Rudder Installation Step4. Use a hobby knife to trim the bottom of the vertical stabilizer to make sure it is flat. Step1. Assemble the tail wheel as shown and make a mark on the wire (20mm from the metal bracket).
- Page 11 www.valuehobby.com/48in-mxs-epp.html Step7. Drill the mounting holes on the bracket. Section4. Elevator Rudder Installation Step1. Attach the pushrod to the control horn, and use glue to install the control horn into the plywood stiffener. Step8. Secure the tail wheel to the bracket using the screws supplied in the tail wheel assembly bag.
- Page 12 www.valuehobby.com/48in-mxs-epp.html Step4. Use two M2*6mm screws and two nuts Section5. Rudder Servo Installation to install the long servo arm to the stock servo arm. Step1. Attach the pushrod to the control horn, Install the pushrod connector to the long servo and use glue to install the control horn into the arm.
- Page 13 www.valuehobby.com/48in-mxs-epp.html Step4. Use one M2*6mm screws and one to Section6. Landing Gear Installation install the long servo arm to the stock servo arm. Step1. Locate the assembled landing gear and Install the pushrod connector to the long servo plywood insert. arm.
- Page 14 www.valuehobby.com/48in-mxs-epp.html Section7. Wing Installation Step4. Use rubber band to connect the hook together. Step1. Glue the wing retainer hook to the wing root. Step2. Be sure the open end of the hook points the top side of the wing. Step3. Attach two wing panels to the fuselage through the wing tube.
- Page 15 www.valuehobby.com/48in-mxs-epp.html Section8. Motor Installation Section9. Control throws and Exponential Step1. Put the motor in position on the firewall 1. Low/Precision Rates (in degrees and and use a felt-tipped pen to mark the locations inches) and Corresponding Exponential for mounting holes. Remove the motor and drill four mounting Aileron: 15 degrees (0.75in)
