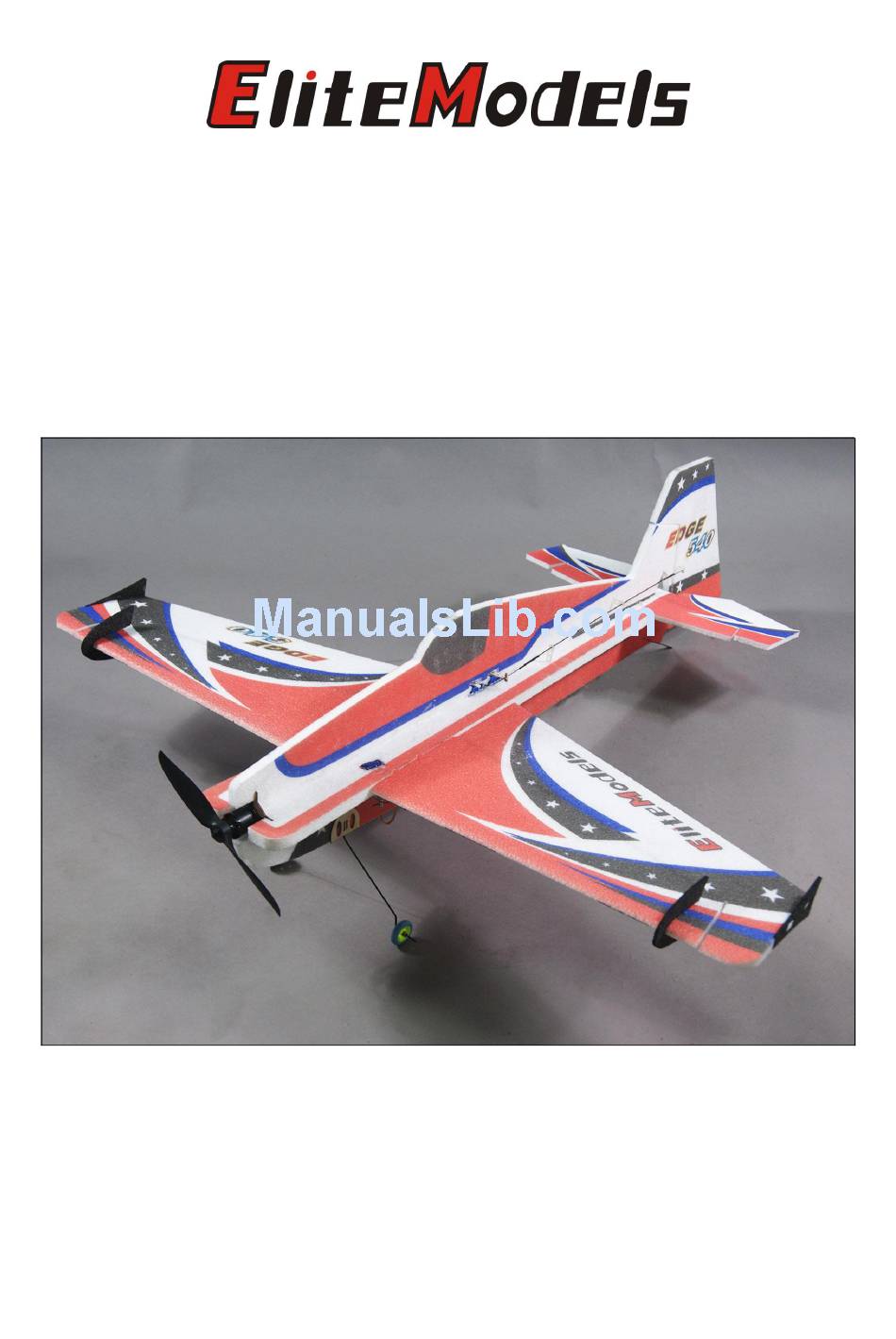

Page 1: Instruction Manual

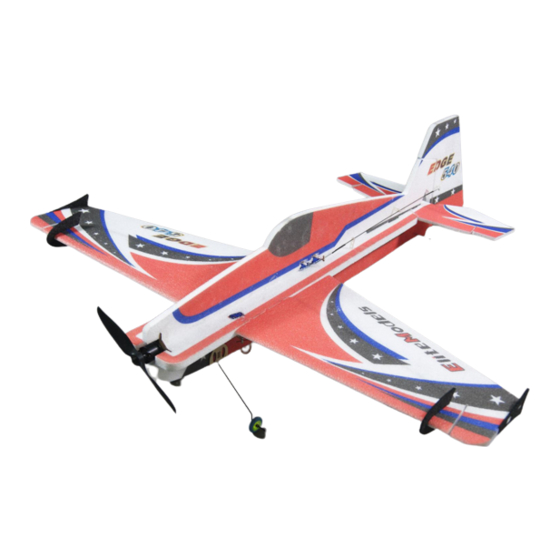

39in EPP Edge-540 Kit Instruction Manual Specifications Wingspan: 39.4in (1000mm) Length: 40.2 in (1020mm) Empty Weight: 8.1oz (230g) Flying Weight: 15.9-17.6oz (450 - 500g) -
Page 2: Dear Customer
Further, Value Hobby reserves the right to modify this warranty without notice. Value Hobby has no control over the final stages of assembly or the material used for the final assembly. No liability shall be assumed nor materials used for the final user-assembled product. By the act of using the final product the user accepts all resulting liability. -
Page 3: Safety In Flying
Small Phillips Screwdriver Set Metric Allen Wrenches Scissors Small Pliers Wire Cutters Masking tape Before Starting Assembly Examination Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. -
Page 4: Main Parts
www.valuehobby.com/39in-edge540-epp.html Main Parts: 1. Vertical Fuselage x 1 2. Horizontal Fuselage x 1 3. Wing Panel x 2 4. Tail x 1... - Page 5 www.valuehobby.com/39in-edge540-epp.html Accessories: List: 1. 3mm plywood motor mount x 1 2. Self-tapping socket head screw for motor x 4 M2.5 x 12mm 3. Hook and loop Velcro tape x 1 length: 150mm 4. Fiberglass square tube (wing spar) x 1 4 x 4 x 850mm 5.
- Page 6 www.valuehobby.com/39in-edge540-epp.html RECOMMENDED RADIO EQUIPMENT Product Quantity Radio Flysky FS-i6 Transmitter and Receiver Set FLY-RC-4572 Servo -0352 Towerpro SG90 9g servo TWP-SV Y-harness Universal Y-harness 6in (15cm) AMS-AC-2397 RECOMMENDED POWER SETUP Product Motor GForce E400(2212-1250kv)Brushless Outrunner Motor VHB-MT-5336 GForce 30A Brushless ESC HWG-SC-4496 Battery GForce 30C 1300mah 3S LiPO...
- Page 7 Step1. Locate the wood pieces for landing gear Step5. Glue the wing spar to the slot pre-cut in the mount. wing and fuselage. Step2. Glue the wood pieces together as shown. Step6. Put some weights on the wing till the foam glue fully cures.
- Page 8 www.valuehobby.com/39in-edge540-epp.html Step9. Install the extended servo arm using two M2 Step12. Install elevator servo and rudder servo x 6mm self-tapping screws. onto the fuselage using hot glue. (the rudder servo arm’s direction is toward to left, and the elevator servo arm’s direction is toward to right.) Step10.
- Page 9 www.valuehobby.com/39in-edge540-epp.html Step17. Install the tail skid (92mm long carbon fiber strip). Step15. Cut a slot on the aileron for the control horn and Install an aileron control horn. Step18. Prepare the landing with two wheels installed. Step16. Install the rudder control horn and elevator control horn.
- Page 10 www.valuehobby.com/39in-edge540-epp.html Step20. Cut the 160mm steel wire with z-bend to 2 Step24. Repeat the steps from 20 to 23 to finish wires. the remaining aileron servo linkage installation. Step21. Attach the z-bend wire to the control horn, and one short wire to the push rod connector, then Step25.
- Page 11 www.valuehobby.com/39in-edge540-epp.html Step30. Install the prop to the motor. Step31. Cut the hook and loop tape into two pieces, and stick them to the two sides of the fuselage for the battery and esc. Step28. Finish the rudder servo linkage installation. Recommended CG The recommended CG is 250mm (9.8in) from the nose of the fuselage.
- Page 12 2015-10-05...
