Summary of Contents for Value Hobby Mini Delta Bee ARF

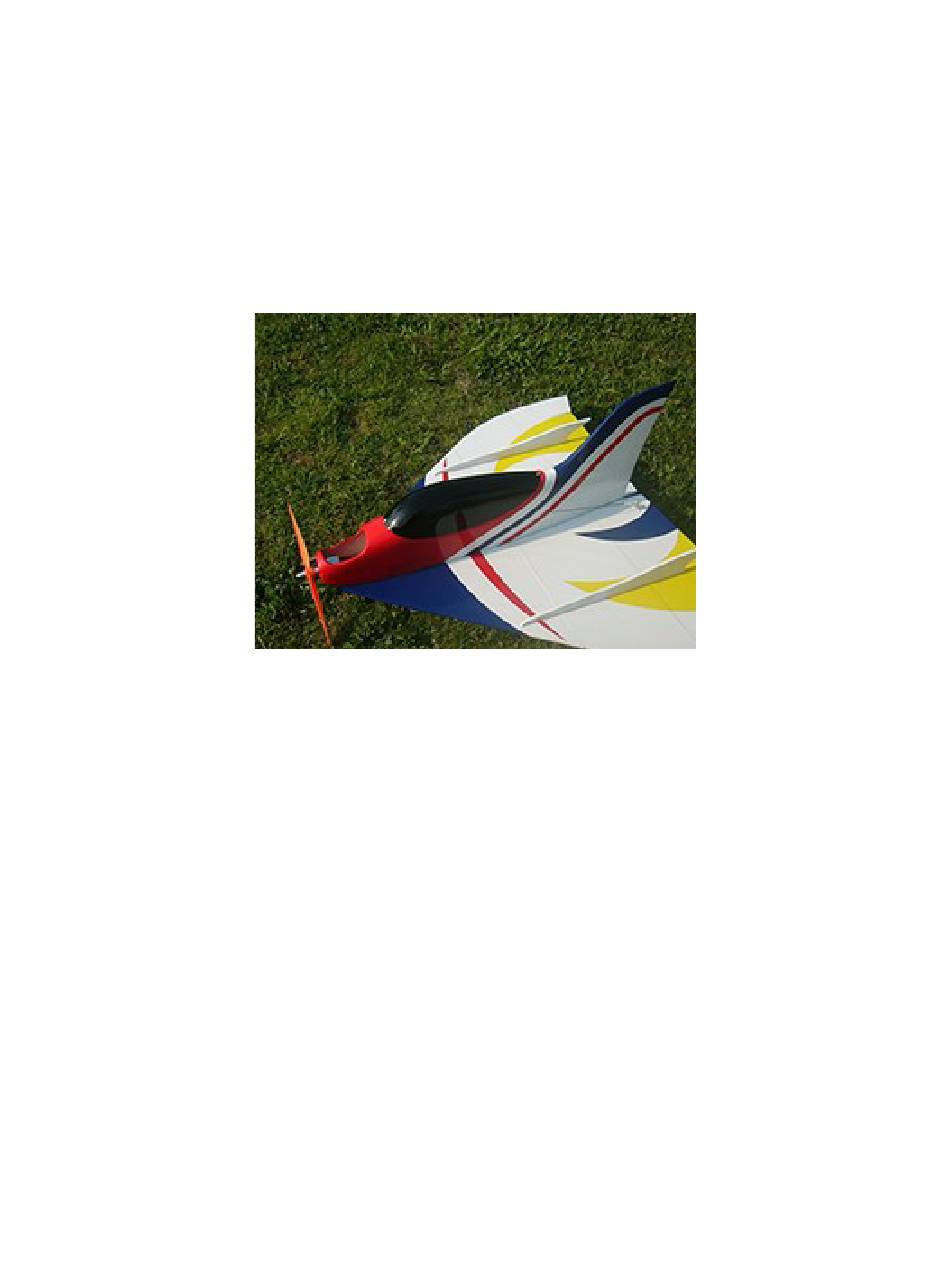

- Page 1 Mini Delta Bee ARF Wing Span: 640mm (25in) Length: 550mm (21.6in) Flying Weight: 410-420g...
- Page 2 Suggested Configuration Motor: 2217 2300KV Battery: 1500mAh 3S ESC: At least 30A Servos: 2 micro servos, such as Towerpro MG90s Prop: 8 x 4 electric prop Radio: At least 4CH Parts of the Airplane and Accessories...
- Page 3 Assembling the Airplane From folded form, unfold the wing into flat form and glue the joint area using CA glue. Secure the vertical fin using CA glue Secure the bottom fin using CA glue...
- Page 4 Drill a 1/8in hole on the left and right side of the fuselage for pushrods. Align the wing with the fuselage so it’s properly centered, then secure the wing onto the fuselage using CA glue. Install two micro servos inside the fuselage as shown. Connect two z-bend pushrods to the servos as shown.
- Page 5 Install the control horns on the wing. Connect the pushrods with the control horns. Install the motor in the front of the fuselage behind the firewall. Suggested CG For the first flights, the suggested center of gravity location is 121mm (4.76in) behind the leading edge of the wing at the wing root.
- Page 6 Suggested Control Throws For beginners we suggest control throws of 30-50% on your programmable radio for the aileron, rudder and elevator. For advanced users we suggest control throws of 60-80% on your programmable radio for the aileron, rudder and elevator.
