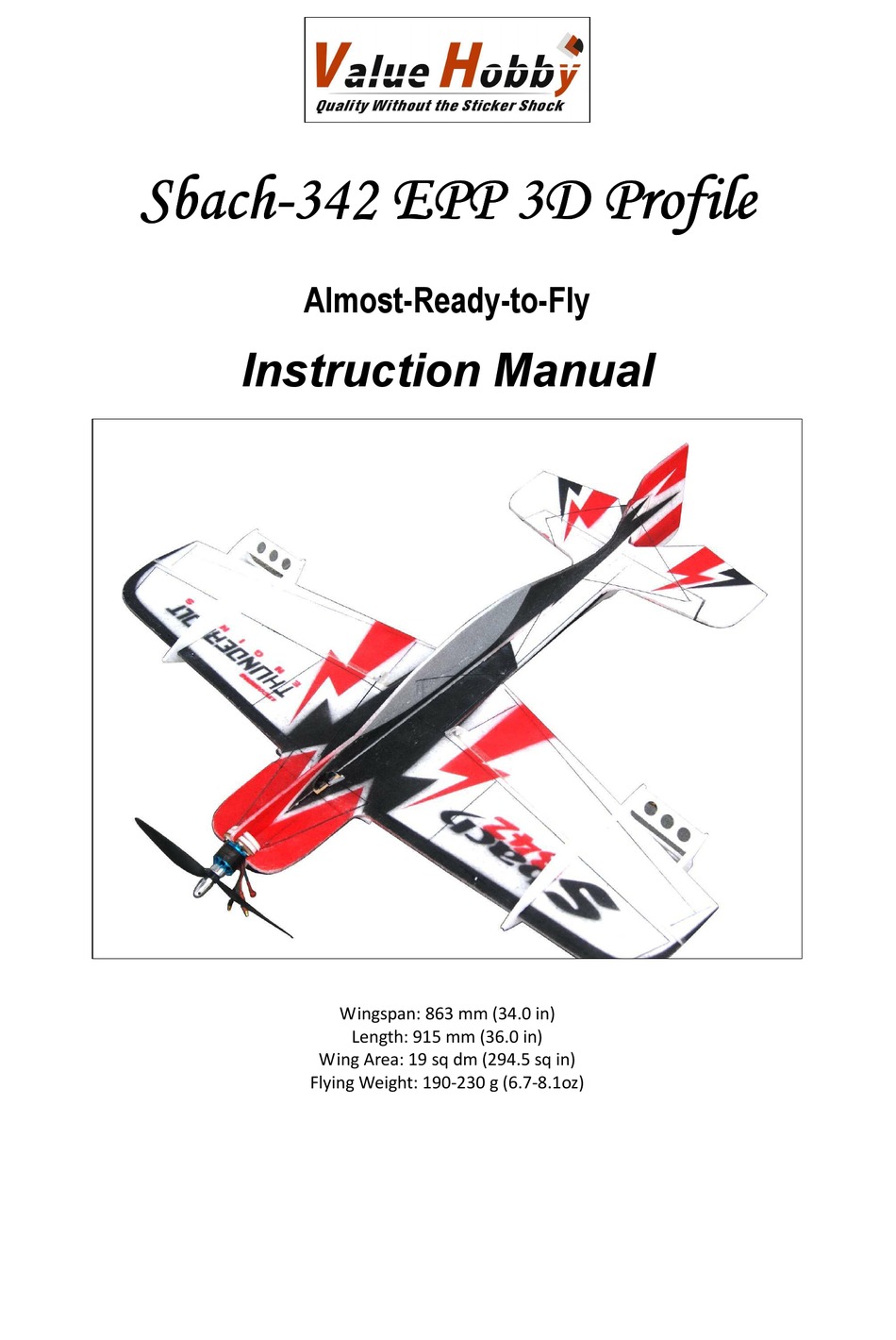

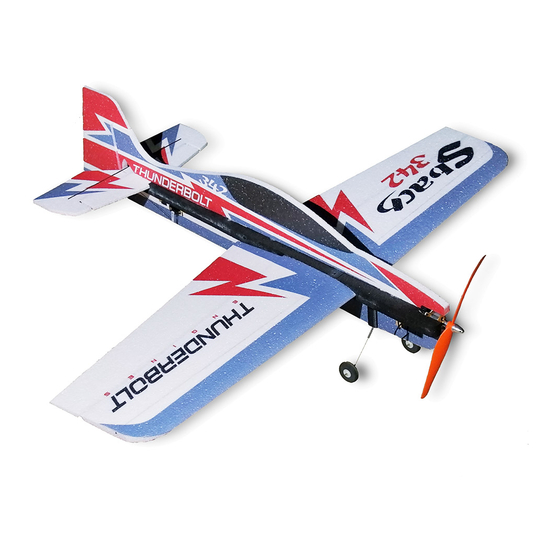

- Page 1 S S S S bach bach- - - - 342 EPP 342 EPP 3D Profile 3D Profile bach bach 342 EPP 342 EPP 3D Profile 3D Profile Almost-Ready-to-Fly Instruction Manual Wingspan: 863 mm (34.0 in) Length: 915 mm (36.0 in) Wing Area: 19 sq dm (294.5 sq in) Flying Weight: 190-230 g (6.7-8.1oz)
-
Page 2: Dear Customer
Further, Value Hobby reserves the right to modify this warranty without notice. Value Hobby has no control over the final stages of assembly or the material used for the final assembly. No liability shall be assumed nor materials used for the final user-assembled product. By the act of using the final product the user accepts all resulting liability. -
Page 3: Required Items
Examination Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. Covering Your airplane was packed in plastic at the factory without any wrinkles in the covering. You may notice some wrinkles now;... - Page 4 www.valuehobby.com/valuehobby-sbach342-epp-foamie.html RECOMMENDED RADIO EQUIPMENT Product Quantity Flysky T6 Transmitter FLY-RC-2563 Radio Towerpro SG90 9g Micro Servo TWP-SV-0358 Servo RECOMMENDED POWER SETUP: Product Motor GForce 2204 1650kv Outrunner Brushless Motor SAT-MT-2493 Hobbywing Flyfun 12A ESC HWG-SC-0236 GForce 30C 500mah 2S 7.4V LiPO RFI-LP-0730 Battery GForce 20C 350mah 3S 1.1V LiPO...
- Page 5 www.valuehobby.com/valuehobby-sbach342-epp-foamie.html...
-
Page 6: Section 1: Horizontal Fuselage Installation
Section 1: Horizontal Fuselage Section 2: Airframe Assembly Installation Step1. Slide the vertical fuselage into the horizontal fuselage. Align the tabs from the vertical fuselage into Step1. Use foam safe CA to glue two pieces of the slots in the horizontal fuselage. horizontal fuselage together. -
Page 7: Section 3: Carbon Rod/Landing Gear Installation
www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Step4. Locate the items shown below and install them Section 3: Carbon Rod/Landing Gear as shown. Installation Step1. Slide the wheel to the landing gear wire and use the heat shrink tube to secure the wheel to the landing gear. Step2. - Page 8 www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Step3. Install the carbon rods to the fuselage and wings as shown.
-
Page 9: Section 4: Aileron Servo Installation
www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Section 4: Aileron Servo Installation Step1. Glue the aileron servo mount to the fuselage. Step2. Install the servo to the mount. (Note: Center the servo before mounting the servo arm). -
Page 10: Section 5: Elevator And Rudder Servo Installation
www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Step3. Install two keeps to the two ends of the aileron Section 5: Elevator and Rudder Servo pushrod (NO.12 Φ1.5 x 169mm). Installation Step1. Install the elevator servo mount to the fuselage using foam safe CA as shown. Step2. Install a 9g servo to the mount using two self-tapping screws. - Page 11 www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Step4. Insert the pushrod support into the fuselage as shown. Step6. Repeat the previous steps for the elevator servo installation. Step5. Install a servo arm to servo. Center the elevator and connect the servo and control horn using assembled pushrod (NO.13 Φ1.5 x 450mm).
-
Page 12: Section 6: Motor Installation
www.valuehobby.com/valuehobby-sbach342-epp-foamie.html Step3. Use four screws to install the motor to the mount. Step4. Install a 9 x 5 prop to the motor. Section 6: Motor Installation Step1. Locate the 3 items shown in the picture. Section 7: Set up CG and control throw The recommended CG is 229mm (9-inch) from the airplane nose. - Page 13 www.valuehobby.com 2013-3-29...
