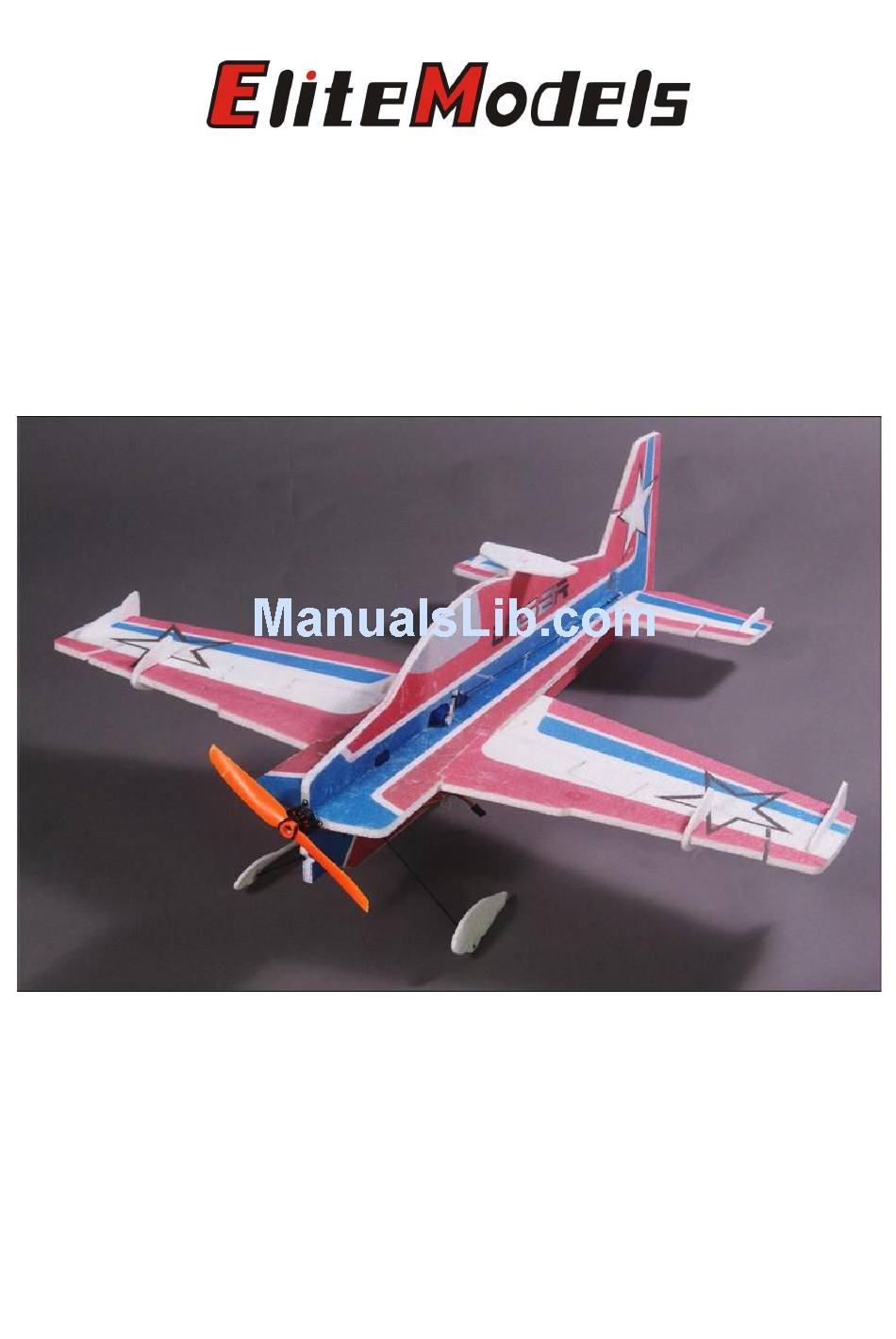

Page 1: Instruction Manual
8mm EPP Laser Instruction Manual Specifications Wingspan: 31.5in (800mm) Length: 31.1 in (790mm) Wing Area: 226sq in (14.6sq dm) Flying Weight: Approx. 8oz (225-240g) -
Page 2: Dear Customer
Further, Value Hobby reserves the right to modify this warranty without notice. Value Hobby has no control over the final stages of assembly or the material used for the final assembly. No liability shall be assumed nor materials used for the final user-assembled product. By the act of using the final product the user accepts all resulting liability. -
Page 3: Safety In Flying
Small Phillips Screwdriver Set Metric Allen Wrenches Scissors Small Pliers Wire Cutters Masking tape Before Starting Assembly Examination Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. -
Page 4: Main Parts
www.valuehobby.com/8mm-epp-laser.html Main Parts: 1. Vertical Fuselage x 1 2. Horizontal Fuselage x 1 3. Wing Panel x 2 4. Tail x 1... - Page 5 www.valuehobby.com/8mm-epp-laser.html Accessories: List: 1. Fiberglass parts including motor mount x 2, control horn x 4, Elevator control horn x 1, wheel x 2, landing gear mounting plate x1, aileron servo arm extension x 1, rudder servo arm extension x 1, elevator servo arm extension x 1, pushrod guide x 9 2.
-
Page 6: Recommended Radio Equipment
www.valuehobby.com/8mm-epp-laser.html RECOMMENDED RADIO EQUIPMENT Product Quantity Radio Flysky FS-i6 Transmitter and Receiver Set FLY-RC-4572 Servo Towerpro SG90 9g servo TWP-SV -0352 3S POWER SETUP Product Motor GForce 2206-1500KV Brushless Outrunner Motor VHB-MT-3530 Hobbywing Flyfun 12A ESC HWG-SC-0236 Battery GForce 30C 500mah 3S LiPO RFI-LP-0732 Prop 8 x 4.5 Slow Flyer Prop (2pcs) -
Page 7: Section 1: Airframe Assembly
Section 1: Airframe Assembly Step1. As shown in the picture, place the fuselage on a work surface, and glue the wings to the fuselage. Step5. Insert the 400mm rod into the pivot. Step2. Put some foam glue into the spar slot. Step6. - Page 8 www.valuehobby.com/8mm-epp-laser.html Step8. Use a hobby knife to cut a slight slot for Step11. Slide the horizontal fuselage into the control horn on the marked location. vertical fuselage. Align the tabs from the vertical fuselage into the slots in the horizontal fuselage. Adjust the vertical fuselage to make it in the center line of the horizontal fuselage.
- Page 9 www.valuehobby.com/8mm-epp-laser.html Step14. As shown, prepare three assembled servo Step17. Glue the elevator control horn onto the arms. stabilizer. Step15. Install the servo arm onto the servo. Step18. Use a knife to cut a 45 degree bevel on the glue edges of the zigzag. Position the zigzag onto the fuselage as shown.
-
Page 10: Section 2: Servos Linkage Installation
www.valuehobby.com/8mm-epp-laser.html Section 2: Servos Linkage Installation Step1. Use a hobby knife to cut a slight slot for the rudder control horn on the rudder. Step19. Glue two side wings on to the main wing. Step2. Glue the control into the slot. Step3. - Page 11 www.valuehobby.com/8mm-epp-laser.html Step4. Insert the guides into the vertical fuselage Step7. Slide a shrink tubing to the pushrod wire. for the rudder servo pushrod. Use a soldering iron to shrink the tubing to connect the pushrod and the control horn. Step5. Slide two pushrods into the guides. Step8.
-
Page 12: Section 3: Motor Installation
www.valuehobby.com/8mm-epp-laser.html Step10. Use the same method to install the rudder Section 3: Motor Installation servo linkage. Step1. Glue the motor mount to the fuselage. Step11. Install the aileron servo linkage using the same method. Step2. Install a 2206 motor to the motor mount Step3. -
Page 13: Section 4: Landing Gear Installation
www.valuehobby.com/8mm-epp-laser.html Step4. Install the battery, ESC and receiver as Section 4: Landing Gear Installation shown. Step1. Glue the rectangle part into the slot on the fuselage. Step2. Glue two 210mm rods into the fuselage as shown. Section5: Set up CG and control throw The recommended CG is 218mm (8.6in) from the nose of the fuselage. - Page 14 www.valuehobby.com/8mm-epp-laser.html 2015-07-08...
