Phoenix Model CANARY Instruction Manual page 8

Instruction Manual
44

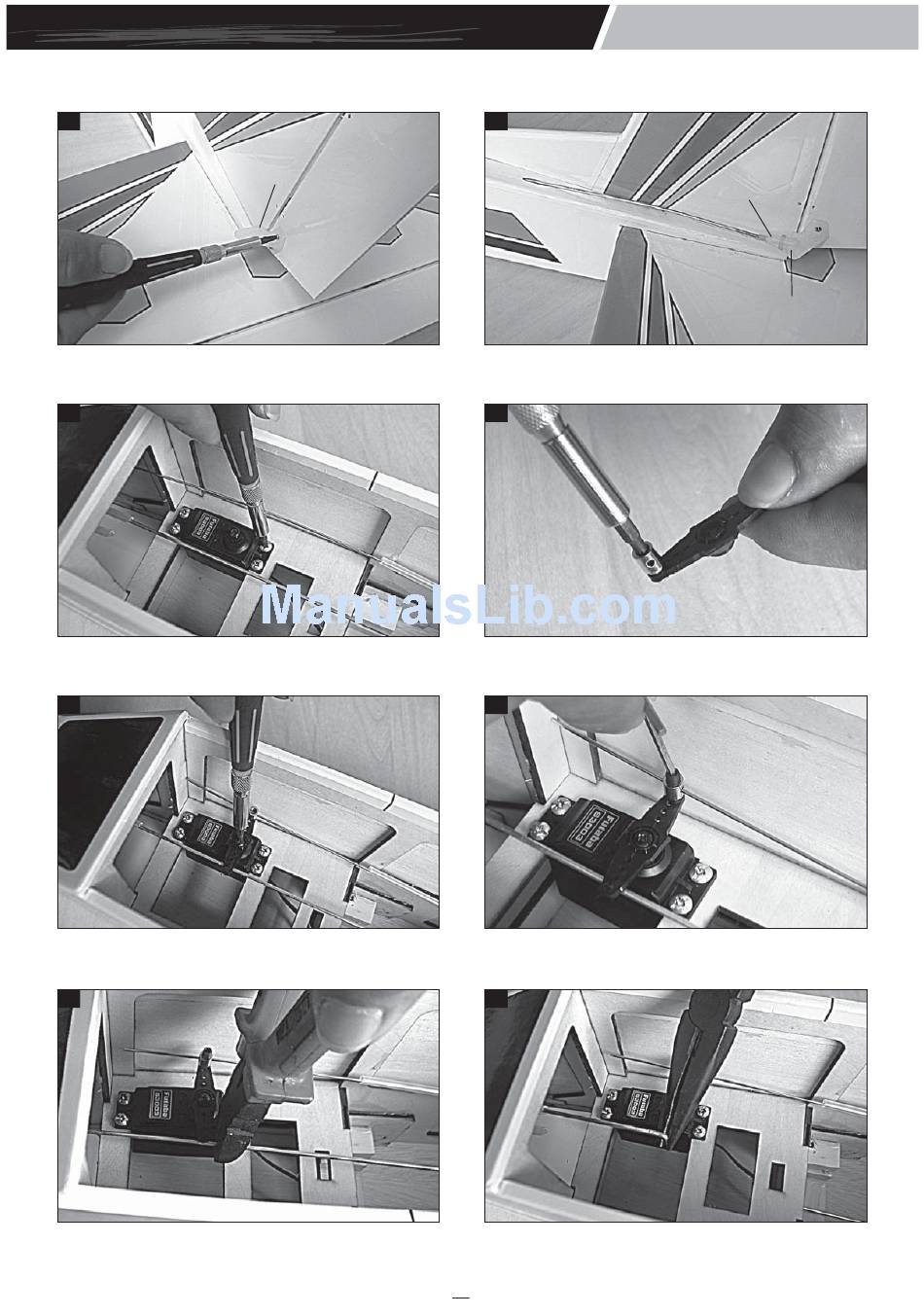

Install the nylon control horn.
46
Install the rudder servo.
48
Connect the rudder pushrod and the nose gear pushrod to
the rudder servo.
50
Cut away the rudder pushrod.
Control horn
45
Attach the clevis to the control horn.
47
Install the metal connector to the servo arm.
49
Secure the nose gear pushrod.
51
Bend "L" the rudder pushrod.
7
Canary
Clevis
Control horn
