Phoenix Model CANARY Instruction Manual page 4

Instruction Manual
17

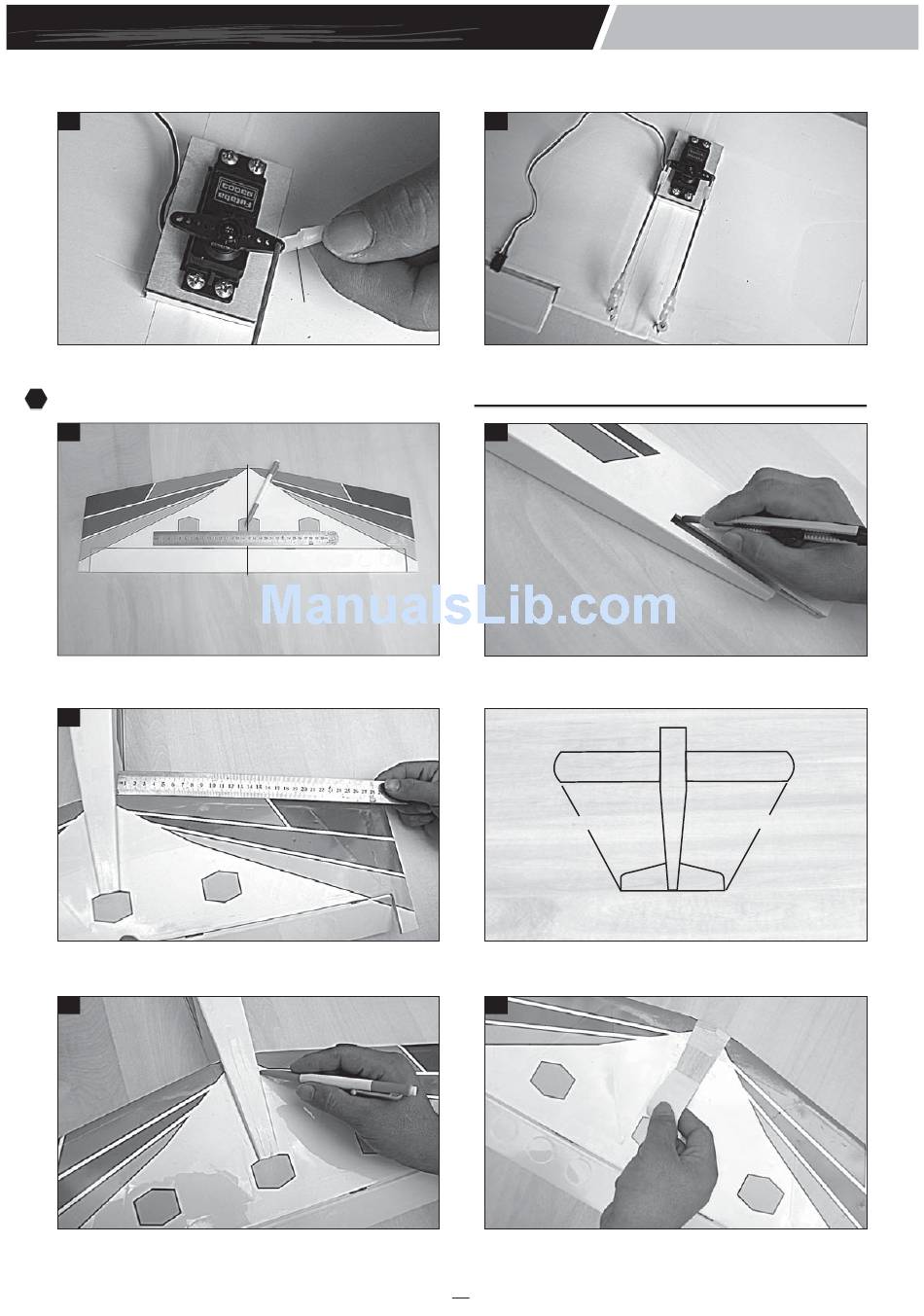

Attach the nylon clasp to the aileron servo arm.
3 Installing the horizontal and vertical.
Installing the horizontal and vertical.
19
Draw a center line.
21
Attach the horizontal to the fuselage and check it.
22
Mark the shape of the fuselage onto the top and bottom of
the horizontal.
Nylon clasp
Center line
18
Make the same way to install the second aileron pushrod.
20
Remove the covering from the fuselage.
A1
Check the horizontal and the wing.
23
Remove the covering from the top of the horizontal.
3
Canary
A2
A1 A2
A1 = A2
