GB
66
ASSEMBLY

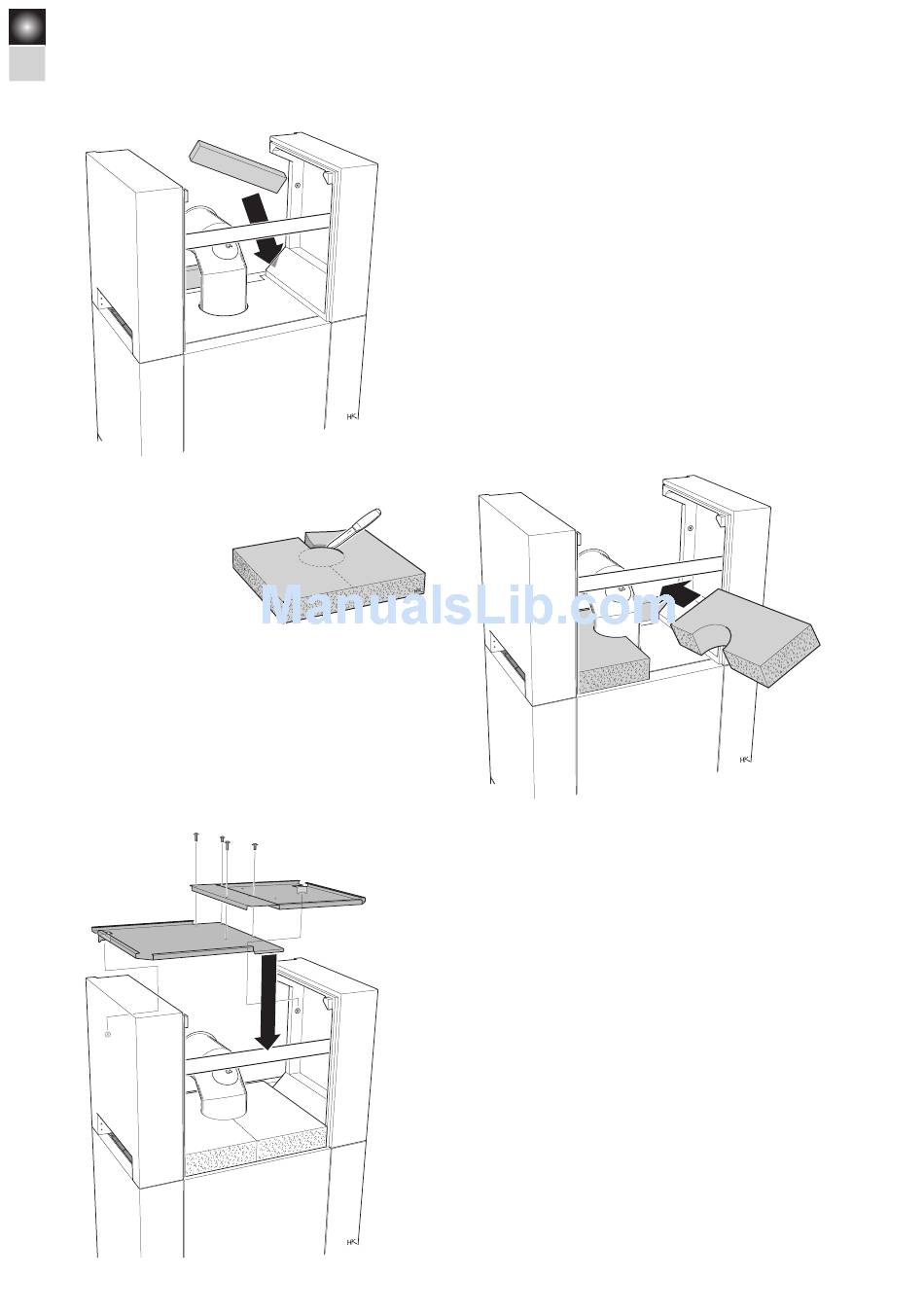

Cut the large sheet of insulation so that it fits around
the chimney flue and position it so that it covers the
whole of the top surface.
Insulate the rear edge of the top surface using
one of the two smaller insulation pieces.
Place the left sealing plate so that it rests on the washer at
the rear edge, and the lock rail at the front.
Lift in the right sealing plates and screw them into place in
each other. Which holes are used depends on whether it is a
Contura 11 or 21.
