ASSEMBLY

Installation height extension sections C11, C21

In combination with flammable wall and accompanying protective screen

Note the different installation methods of the height extension

section. When using a protective screen the airflow must not be

restricted at any point.

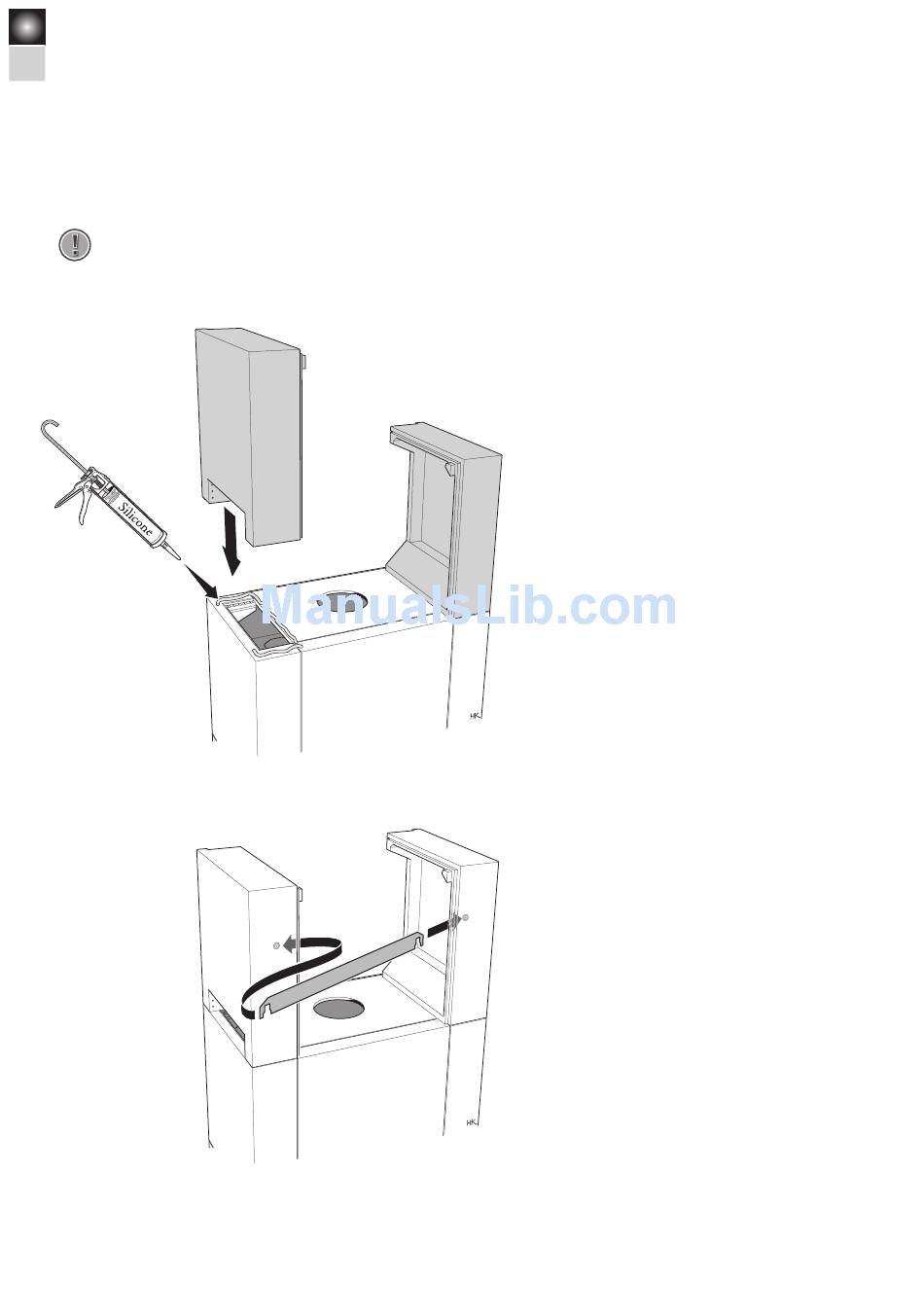

Install the protective screen according to the

separate instruction and the surround at ordinary

height according to page 47-56. Then apply silicone

to the top of the surround and lift up the concrete

sides of the height extension section. Support the

first side so that it does not fall while the other side

is installed.

Hang the safety rail between the sides and ensure

that they are straight. Check that the width is the

same as section 1 at the front and rear edges.
