56 ASSEMBLY
Final inspection of the installation
Before the stove is used, it must be inspected by an authorised chimney sweep. Read the "Instructions for
Lighting the CI 10 / CI 20 series" before lighting the fire for the first time.

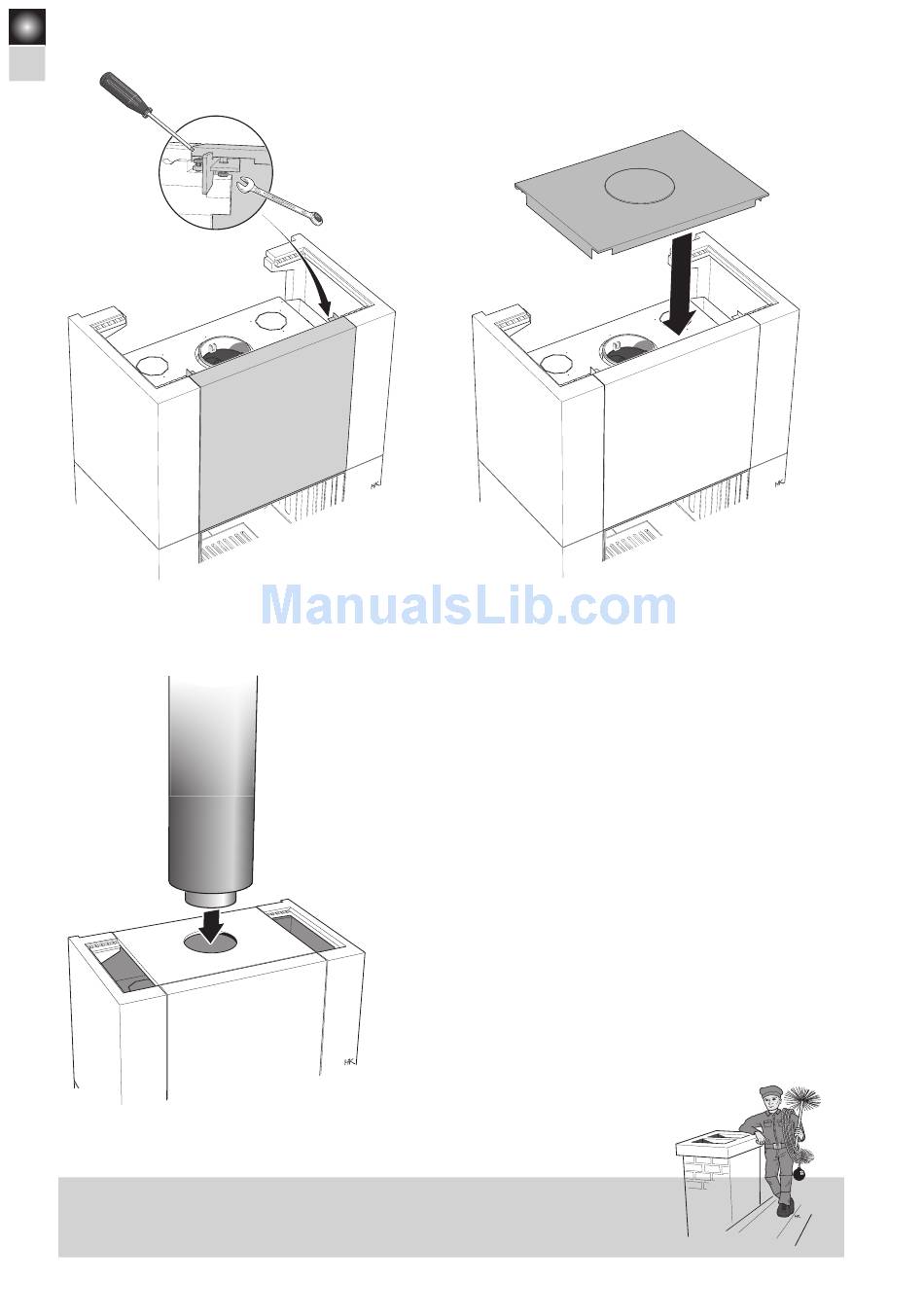

On aluminium and steel fronts there are adjustment screws that
can be used to adjust the front panel by height. When the front
panel is set the outer Torx screws are screwed until they support
against the concrete. The top rests on the turned down angles at
the rear edge, these can be adjusted to get the top to the level of
the concrete.
For installations without height extensions, top
connection to stainless steel flues is now possible;
follow the chimney manufacturer's instructions.
Then continue on page 57 with joining and painting.
When installing the height extension section:
• with an integrated protective screen, go to page 58.
• in combination with a non-flammable wall and
chimney connection straight backwards, go to page 62.
• in combination with a non-flammable wall and
chimney connection angled backwards through the
height extension section, go to page 65.
