ENGINE

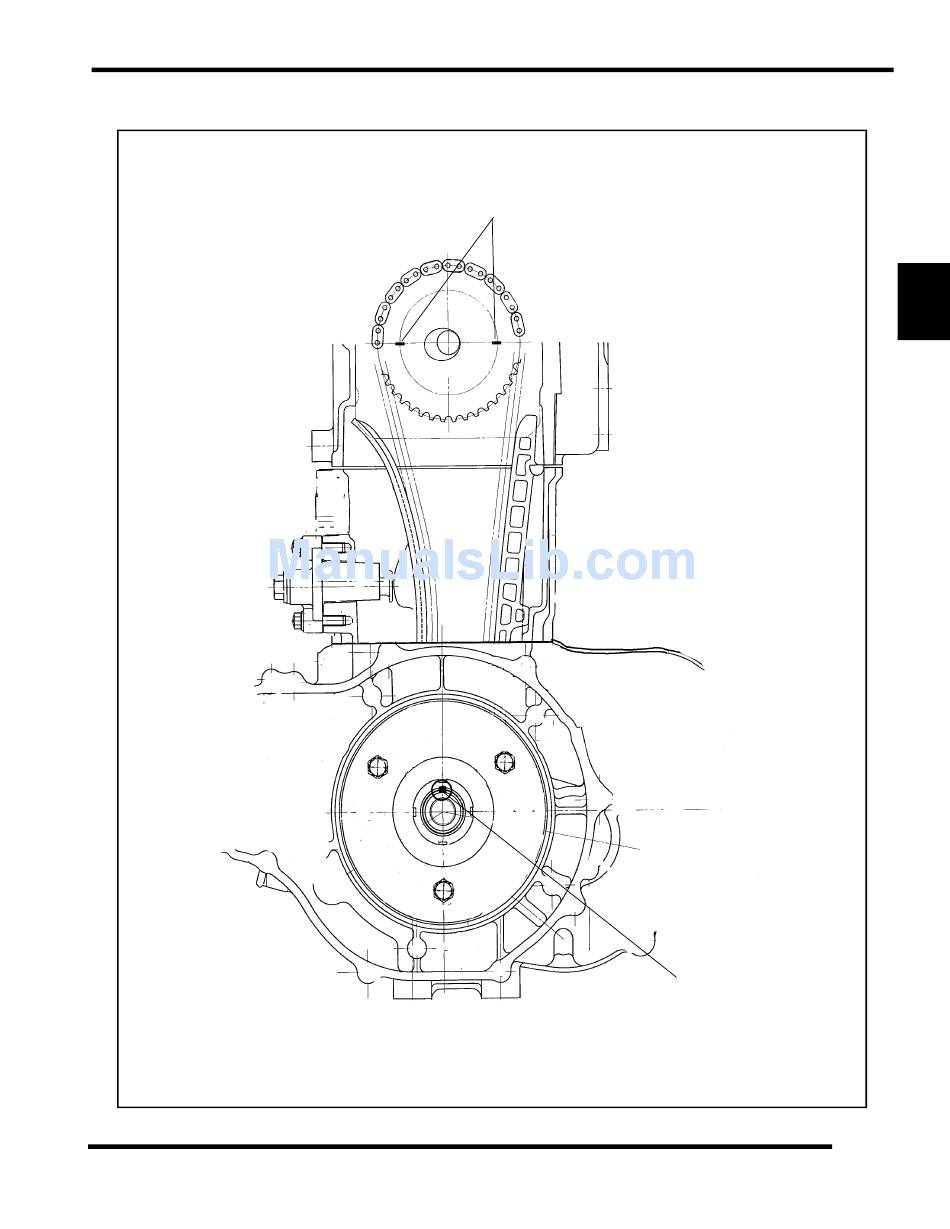

Method 1 - Camshaft Timing with Stator Housing Removed
Sprocket marks aligned with gasket surface at TDC on
compression stroke (cam lobes facing downward)
3
Crankshaft Keyway 'UP'
3.43
9923983 - 2012-2013 RZR 170 Service Manual
