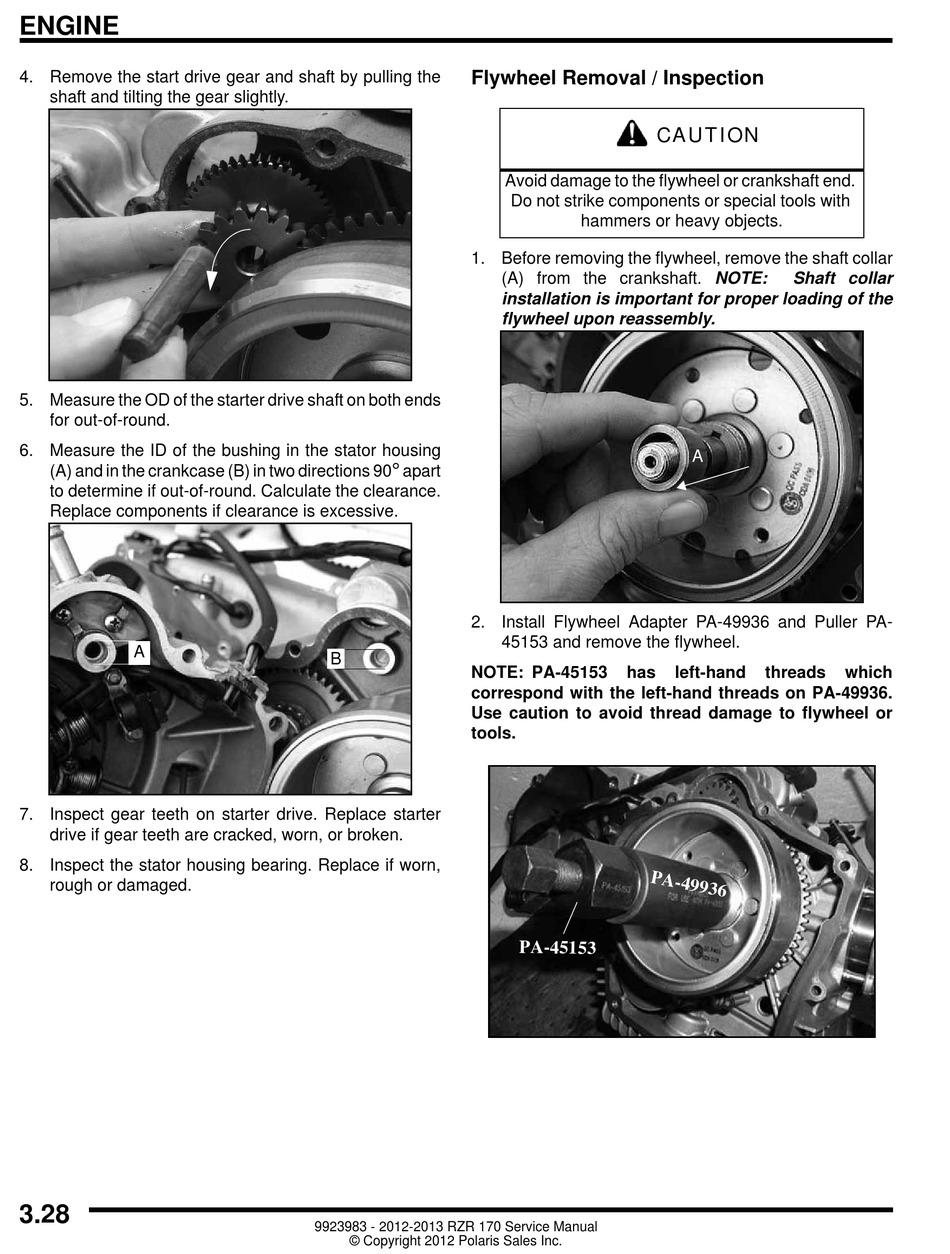

Flywheel Removal / Inspection - Polaris RANGER RZR 170 Service Manual

ENGINE
4. Remove the start drive gear and shaft by pulling the
shaft and tilting the gear slightly.
5. Measure the OD of the starter drive shaft on both ends
for out-of-round.
6. Measure the ID of the bushing in the stator housing
(A) and in the crankcase (B) in two directions 90
to determine if out-of-round. Calculate the clearance.
Replace components if clearance is excessive.
A
7. Inspect gear teeth on starter drive. Replace starter
drive if gear teeth are cracked, worn, or broken.
8. Inspect the stator housing bearing. Replace if worn,
rough or damaged.
3.28

Flywheel Removal / Inspection

1. Before removing the flywheel, remove the shaft collar

apart
2. Install Flywheel Adapter PA-49936 and Puller PA-
B
NOTE: PA-45153
correspond with the left-hand threads on PA-49936.
Use caution to avoid thread damage to flywheel or
tools.
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
CAUTION
Avoid damage to the flywheel or crankshaft end.
Do not strike components or special tools with
hammers or heavy objects.
(A) from the crankshaft. NOTE:
installation is important for proper loading of the
flywheel upon reassembly.
45153 and remove the flywheel.
has left-hand
Shaft collar
A
threads which
