Transmission; Transmission Specification Chart; Transmission Oil Change - Polaris RANGER RZR 170 Service Manual

MAINTENANCE

TRANSMISSION

Transmission Specification Chart

G
EARCASE
Transmission
(Main Gearcase)

Transmission Oil Change

NOTE: It is important to follow the transmission and
gearcase maintenance intervals described in the
Periodic Maintenance Chart.
Transmission Specifications
Specified Lubricant:
AGL Plus Synthetic Gearcase
Lubricant
(PN 2878068)
Approximate Capacity at Change:
23.7 oz. (700 ml)
Fill / Level Plug Torque:
30-45 in-lbs (3-5 Nm)
Drain Plug Torque:
18 ft-lbs (24 Nm)
Transmission Oil Level Check:
2.24
L
UBRICANT
AGL Plus - Synthetic
ATV Gearcase
Lubricant
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
C D
APACITY RAIN
23.7 oz. (700 ml) 18 ft-lbs (24 Nm)

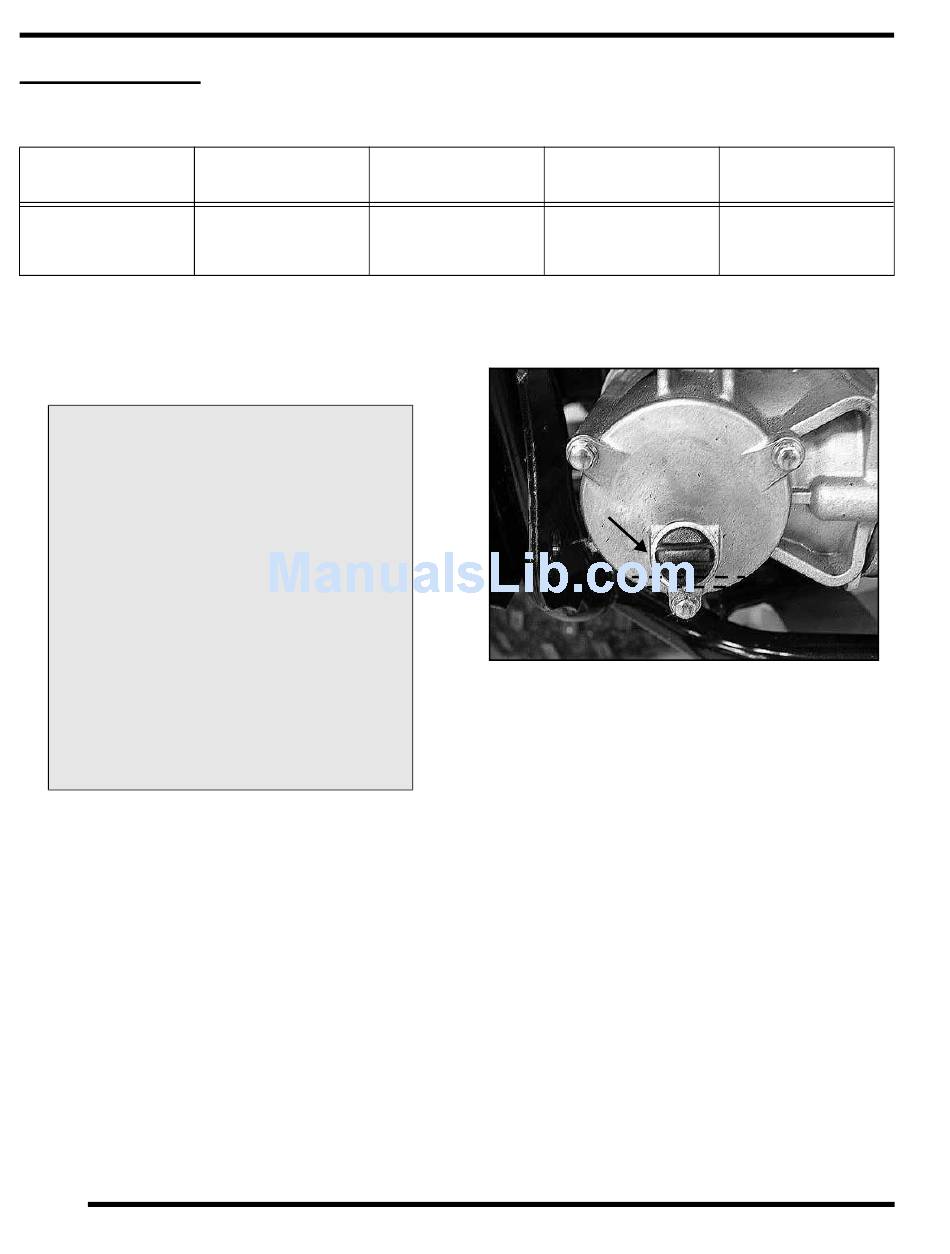

The fill plug is located on the side of the gearcase next to
the shift lever bell crank. The fluid level should be
maintained so it is even with the bottom of the fill plug hole.
• Be sure vehicle is positioned on a level surface
when checking or changing fluid.
• Check vent hose to be sure it is routed properly
and unobstructed.
1. Position vehicle on a level surface.
2. Remove the fill plug.
3. Add the recommended fluid through the fill plug hole
until it is even with the bottom of the check plug hole.
4. Reinstall the check/fill plug and torque to 30-45 in-lbs
(3-5 Nm) or tighten by hand sufficiently.
Transmission Oil Change:
1. Remove the level check plug (refer to "Lubricant
Level Check").
2. Place a drain pan under the main gearcase drain plug.
F / L
ILL
P T
LUG ORQUE
P
LUG
30-45 in-lbs (3-5 Nm)
Transmission Oil Fill/Check
C
EVEL HECK
T
ORQUE
