MAINTENANCE

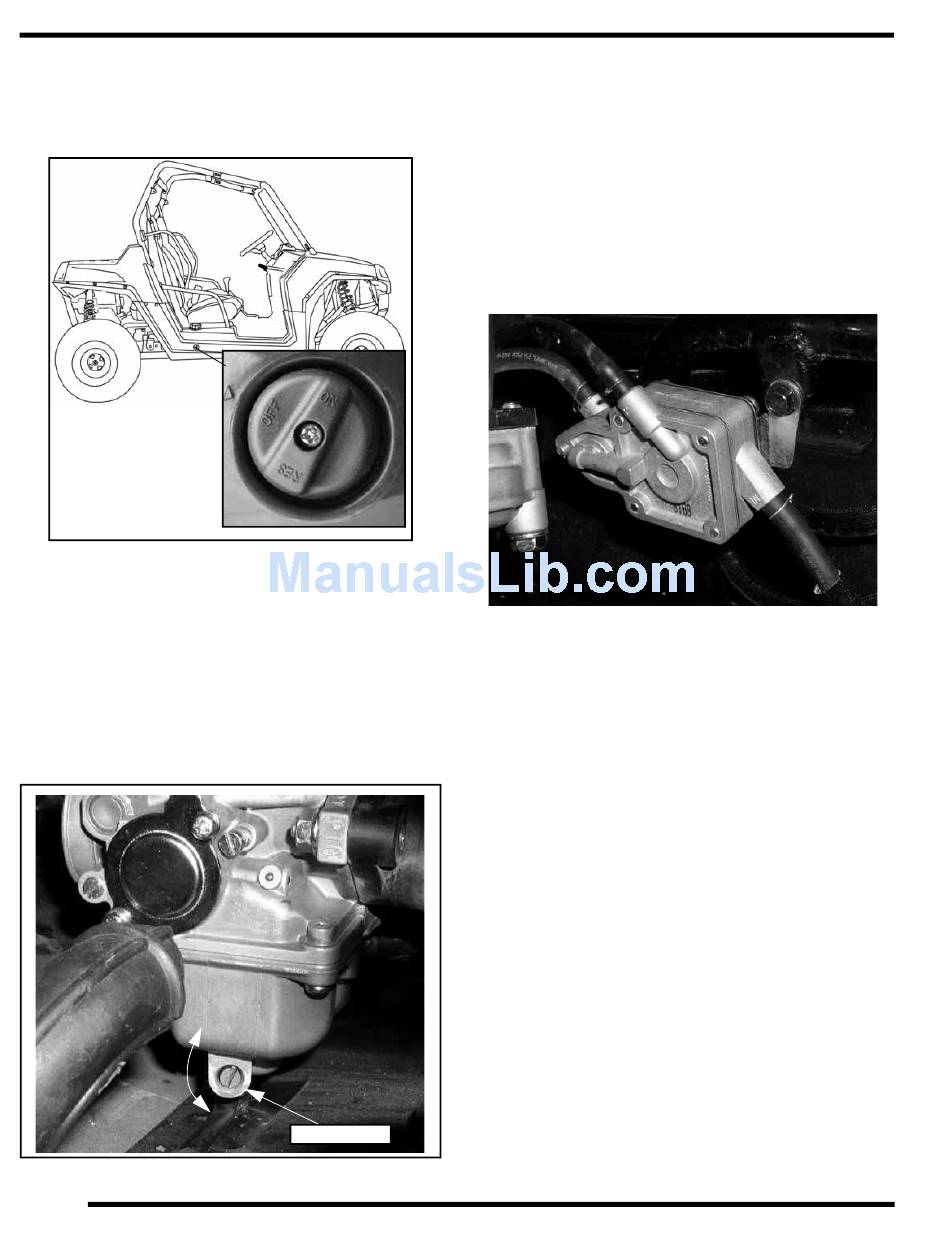

Fuel Valve Location

The fuel valve is located on the passenger side of the
vehicle below the gas cap. Always turn off the fuel when
the vehicle is not in use.
Turn knob to operate
the fuel valve

Carburetor Draining

The carburetor float bowl should be drained before
extended periods of storage, or periodically to remove
accumulated moisture or sediment from the bowl.
1. Turn fuel valve to the 'OFF' position.
2. Place a container under the bowl drain hose.
3. Loosen drain screw and allow fuel in the float bowl and
fuel line to drain completely.
Close
Open
2.16
4. Tighten drain screw.
5. Turn fuel valve to "ON" and check for fuel leaks.
6. Start engine and re–check for leaks.

Fuel Pump / Fuel Lines

NOTE: Thoroughly clean the exterior of all fuel
related components before servicing.
The RZR170 fuel pump is located in the right rear wheel
well.
1. Check the fuel lines for signs of wear, deterioration,
2. Be sure fuel line is routed properly.
IMPORTANT: Make sure line is not kinked or pinched.
3. Replace fuel lines every two years.
NOTE: For all other information related to the fuel
System, refer to Chapter 4.
Drain Screw
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
damage or leakage. Replace if necessary.
