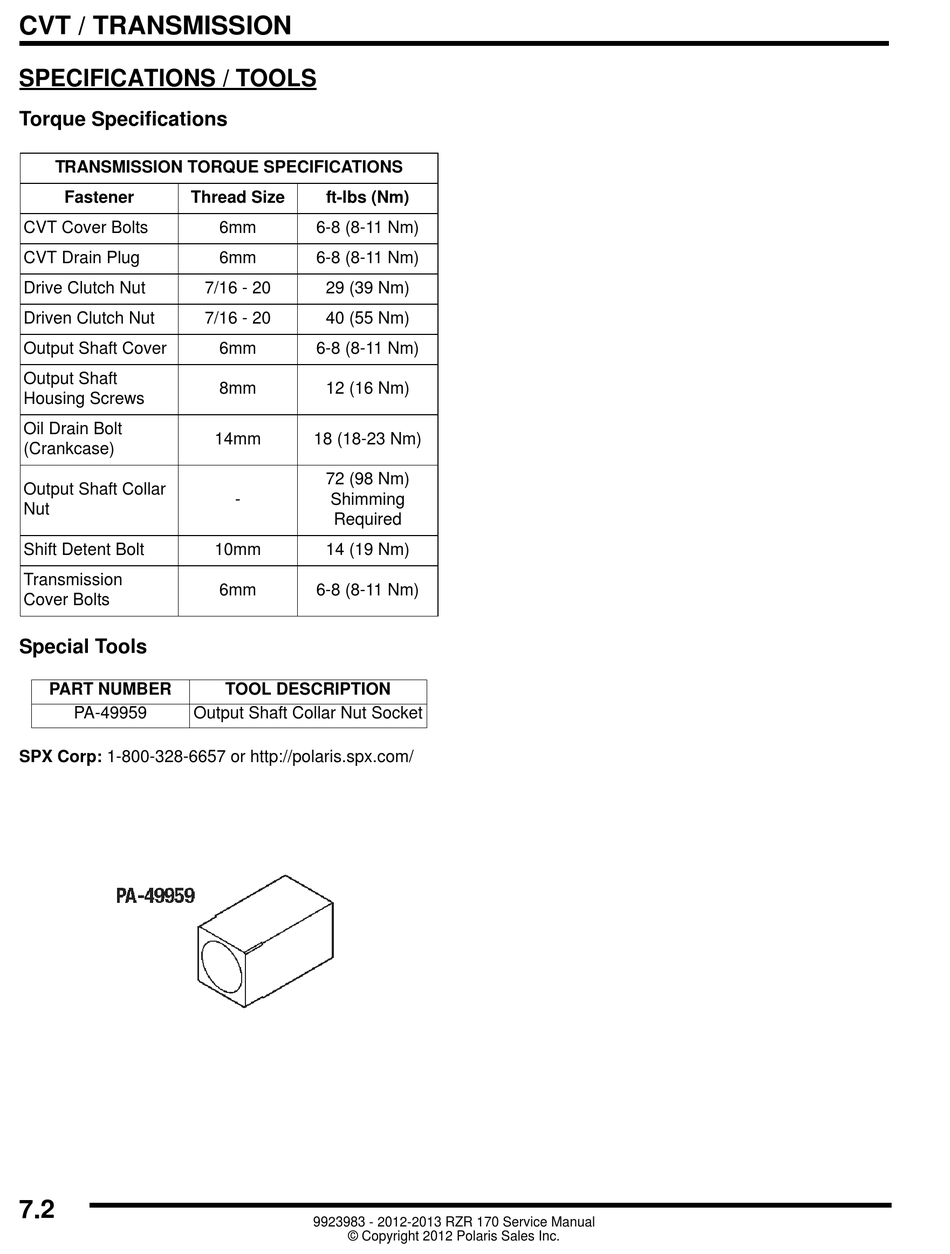

CVT / TRANSMISSION

SPECIFICATIONS / TOOLS

Torque Specifications

TRANSMISSION TORQUE SPECIFICATIONS
Fastener Thread Size
CVT Cover Bolts
CVT Drain Plug
Drive Clutch Nut
Driven Clutch Nut
Output Shaft Cover
Output Shaft
Housing Screws
Oil Drain Bolt
(Crankcase)
Output Shaft Collar
Nut
Shift Detent Bolt
Transmission 
Cover Bolts

Special Tools

PART NUMBER
PA-49959 Output Shaft Collar Nut Socket
SPX Corp: 1-800-328-6657 or http://polaris.spx.com/
7.2
ft-lbs (Nm)
6mm 6-8 (8-11 Nm)
6mm 6-8 (8-11 Nm)
7/16 - 20 29 (39 Nm)
7/16 - 20 40 (55 Nm)
6mm 6-8 (8-11 Nm)
8mm 12 (16 Nm)
14mm 18 (18-23 Nm)
72 (98 Nm)
- Shimming
Required
10mm 14 (19 Nm)
6mm 6-8 (8-11 Nm)
TOOL DESCRIPTION
9923983 - 2012-2013 RZR 170 Service Manual
