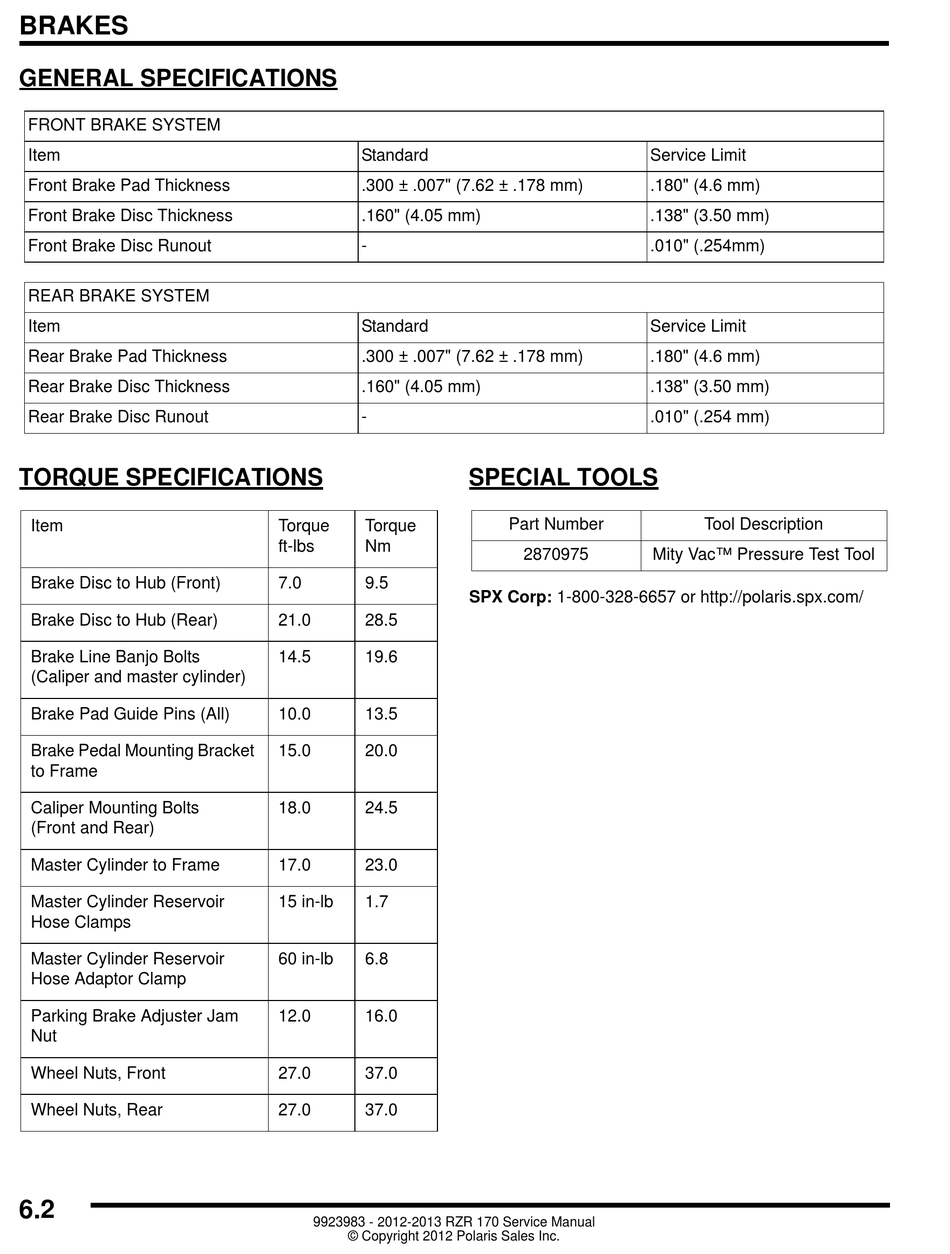

BRAKES
GENERAL SPECIFICATIONS
FRONT BRAKE SYSTEM
Item
Front Brake Pad Thickness
Front Brake Disc Thickness
Front Brake Disc Runout
REAR BRAKE SYSTEM
Item
Rear Brake Pad Thickness
Rear Brake Disc Thickness
Rear Brake Disc Runout
TORQUE SPECIFICATIONS
Item
Brake Disc to Hub (Front)
Brake Disc to Hub (Rear)
Brake Line Banjo Bolts
(Caliper and master cylinder)
Brake Pad Guide Pins (All)
Brake Pedal Mounting Bracket
to Frame
Caliper Mounting Bolts 
(Front and Rear)
Master Cylinder to Frame
Master Cylinder Reservoir
Hose Clamps
Master Cylinder Reservoir
Hose Adaptor Clamp
Parking Brake Adjuster Jam
Nut
Wheel Nuts, Front
Wheel Nuts, Rear
6.2
Standard
.300 ± .007" (7.62 ± .178 mm)
.160" (4.05 mm)
-
Standard
.300 ± .007" (7.62 ± .178 mm)
.160" (4.05 mm)
-
Torque Torque
ft-lbs Nm
7.0 9.5
21.0 28.5
14.5 19.6
10.0 13.5
15.0 20.0
18.0 24.5
17.0 23.0
15 in-lb 1.7
60 in-lb 6.8
12.0 16.0
27.0 37.0
27.0 37.0
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
SPECIAL TOOLS
Part Number
2870975
SPX Corp: 1-800-328-6657 or http://polaris.spx.com/
Service Limit
.180" (4.6 mm)
.138" (3.50 mm)
.010" (.254mm)
Service Limit
.180" (4.6 mm)
.138" (3.50 mm)
.010" (.254 mm)
Tool Description
Mity Vac™ Pressure Test Tool
