Tie Rod Removal / Installation

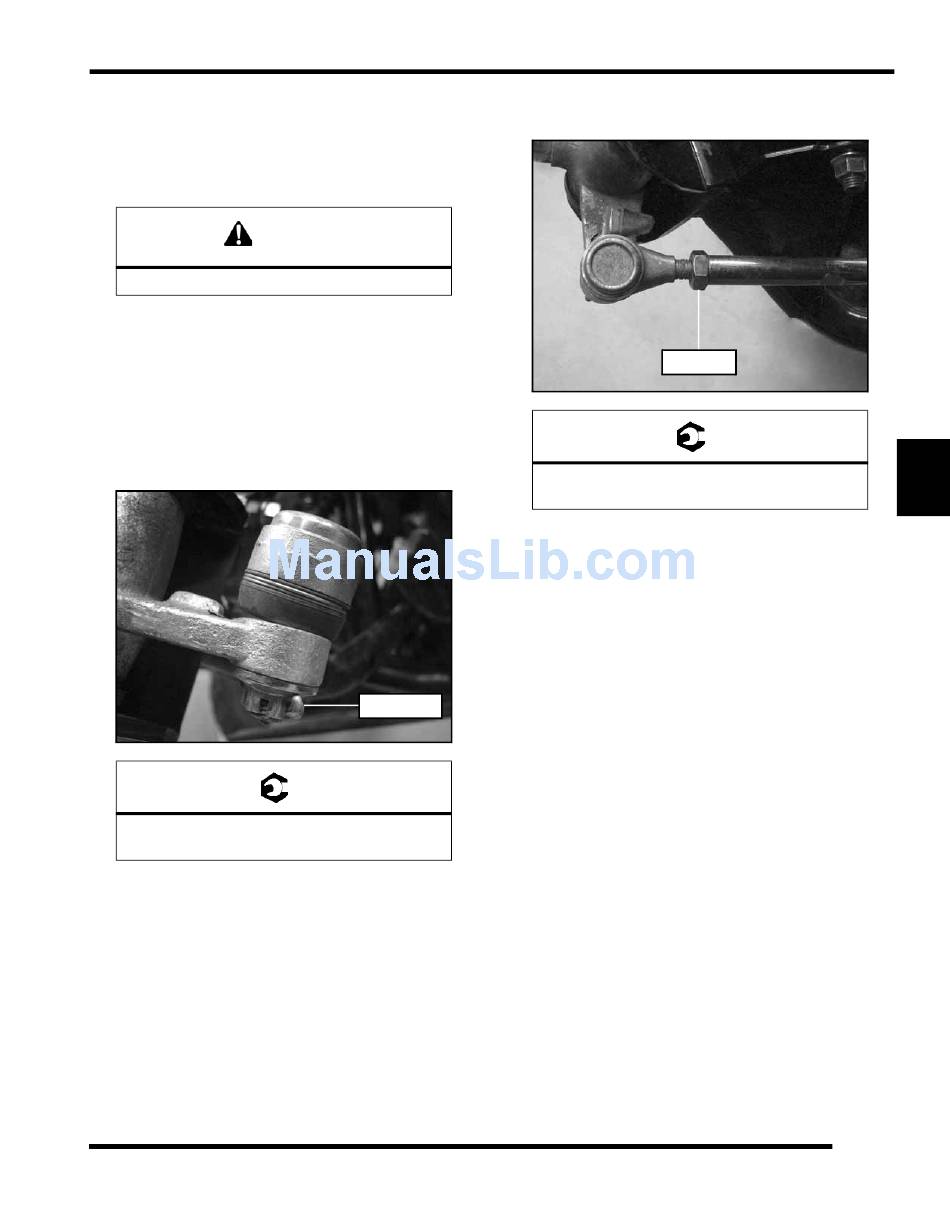

Steering tie rods can be replaced by removing the rod-end
castle nut at the tie rod plate and spindle.
1. Elevate the front end of the vehicle.
CAUTION
Severe injury could occur if machine tips or falls.
2. Remove the cotter pin from each rod end castle nut.
3. Loosen and remove the (2) tie rod end castle nuts and
remove the tie rod from the vehicle.
4. If replacing the tie rod ends, loosen the jam nut(s) and
replace the end(s).
5. Install the tie rod and torque the castle nuts to
specification. Install a new cotter pin in each castle
nut.
Tie Rod End Castle Nuts:
25 ft-lbs (34 Nm)
NOTE: Refer to Chapter 2 "Maintenance" for the
steering toe alignment procedure.
Cotter Pin
= T
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
BODY / SUSPENSION / STEERING
6. After performing the steering toe adjustment, torque
the jam nuts to specification.
Jam Nut
Tie Rod End Jam Nuts:
12-14 ft-lbs (17-19 Nm)
= T
5.31
