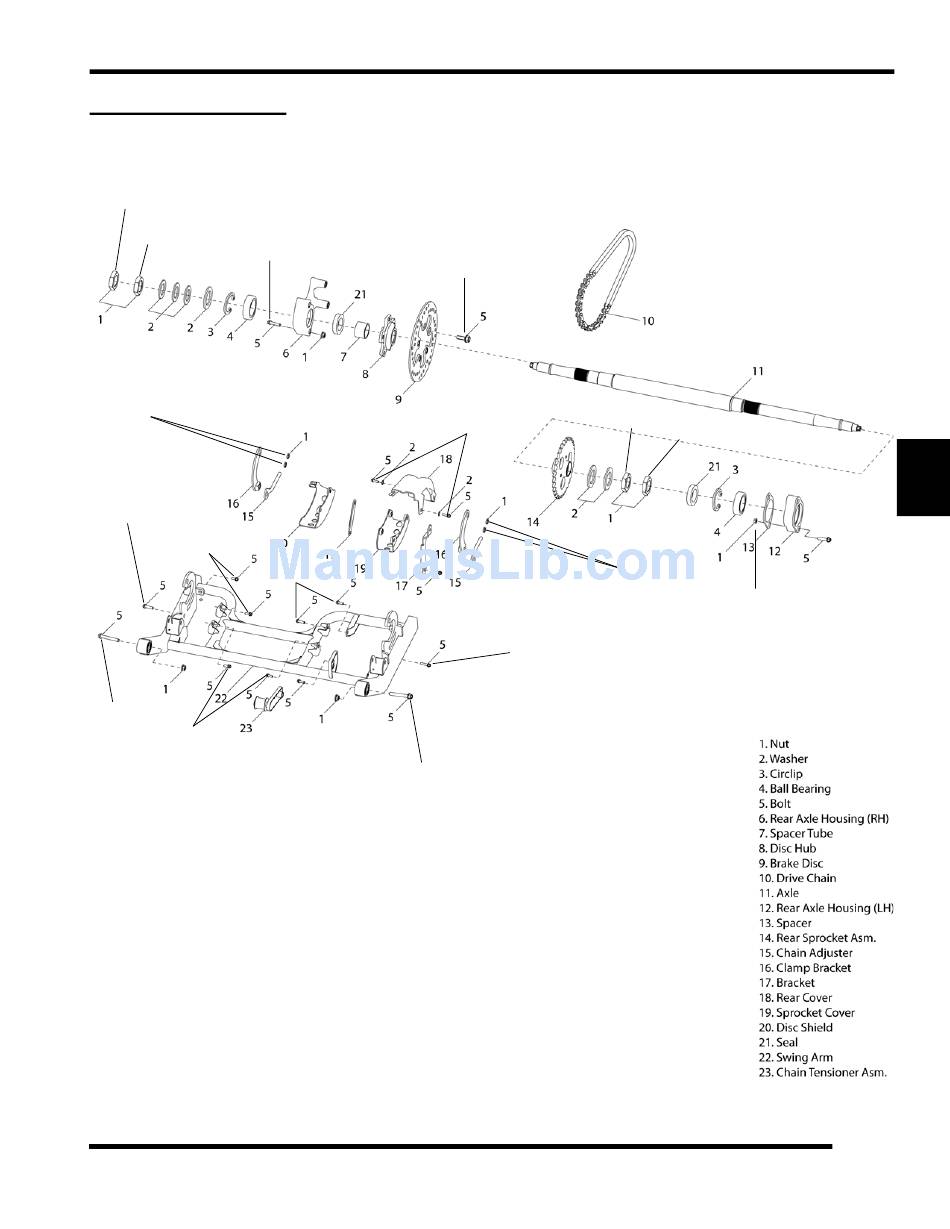

REAR SWING ARM

Exploded View

72 ft-lbs
(98 Nm)
7 ft-lbs
(10 Nm)
72 ft-lbs
(98 Nm)
84 in-lbs
(10 Nm)
36 ft-lbs
(49 Nm)
16 ft-lbs
(22 Nm)
72 ft-lbs
(98 Nm)
16 ft-lbs
(22 Nm)
Replace if Removed
22 ft-lbs
(30 Nm)
16 ft-lbs
(22 Nm)
72 ft-lbs
(98 Nm)
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
BODY / SUSPENSION / STEERING
7 ft-lbs
16 ft-lbs
(10 Nm)
(22 Nm)
84 in-lbs
(10 Nm)
36 ft-lbs
(49 Nm)
72 ft-lbs
(98 Nm)
72 ft-lbs
(98 Nm)
5.19
