3. Install the washers and torque the castle nut to
specification. Install a new cotter pin into the castle
nut.
40 ft-lbs
(55 Nm)
Replace
Front Hub Nut:
40 ft-lbs (55 Nm)
4. Install the wheel, wheel nuts and rubber dust boot.
Torque the wheel nuts to specification.
Wheel Nuts:
27 ft-lbs (37 Nm)
Washers
= T
= T
9923983 - 2012-2013 RZR 170 Service Manual
© Copyright 2012 Polaris Sales Inc.
BODY / SUSPENSION / STEERING

SHOCKS

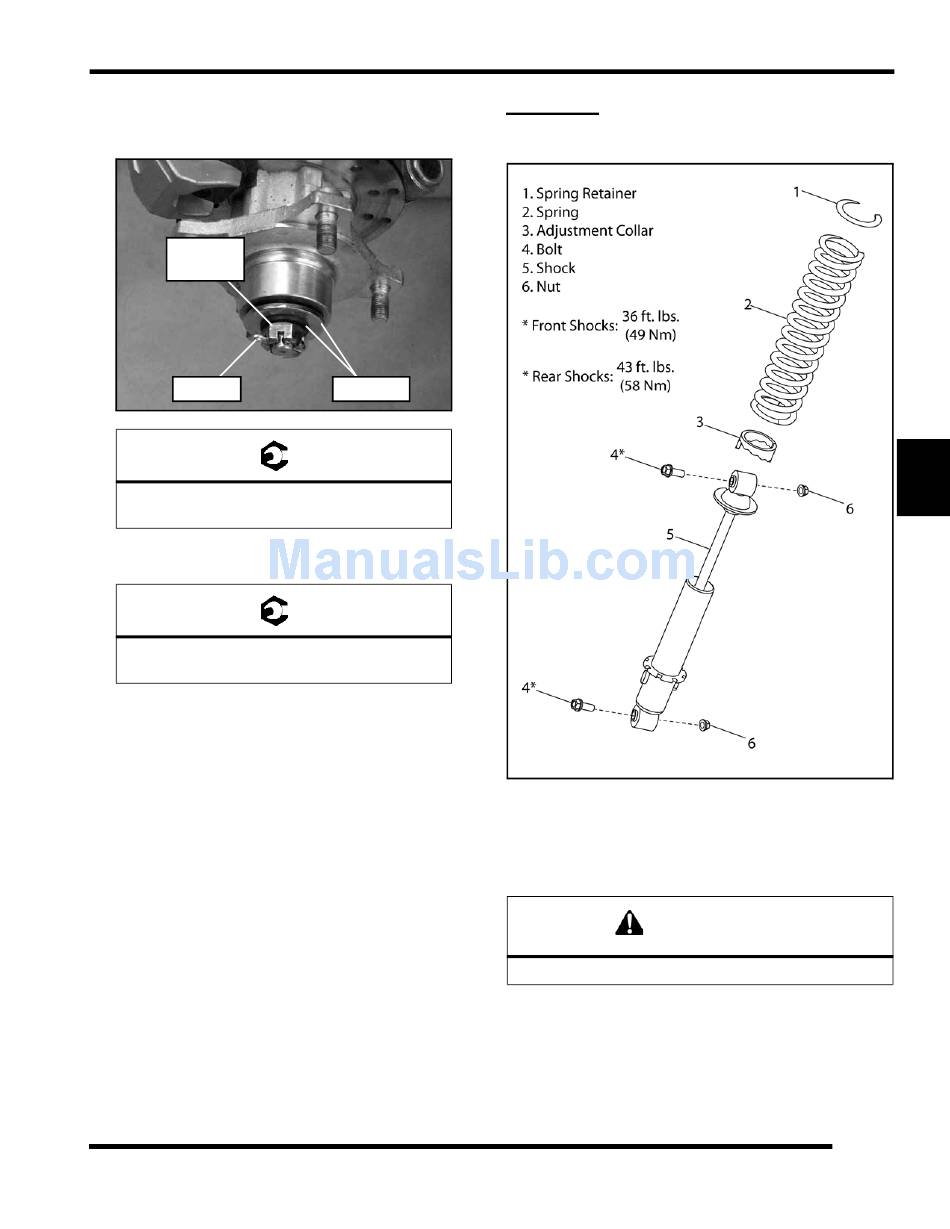

Shock Exploded View

Shock Removal

1. Elevate the front or rear end of the vehicle off the
ground to remove shock spring tension.
CAUTION
Severe injury could occur if machine tips or falls.
2. Remove the shock mounting bolts and remove the
shock from the vehicle.
3. Replace the shock, compression spring or adjustment
collar as required (see "Shock Replacement").
