NetVanta 7000 Series Hardware Installation Guide

NetVanta Dual FXS/FXO VIM, (P/N 1200692E1/L1)

The NetVanta Dual FXS/FXO VIM (see Figure 17) adds voice capability to the NetVanta 7100. Refer to
Table A-4 on page 50 for the FXS/FXO connector pinouts.
Analog Voice Ports
• Dual FXS and Dual FXO ports
• Loop Start (LS), Ground Start (GS)
• Normal and reverse battery operation
Transmission Level
• FXS Receive Gain: -12 to +6 dB,
0.1 dB steps
• FXS Transmit Gain: -12 to +6 dB,
0.1 dB steps
• FXO Transmit Gain: -6 to +10 dB,
0.1 dB steps
• FXO Receive Gain: -6 to +10 dB,
0.1 dB steps
Devices connected to the Station (FXS) ports must be ACTA/FCC Part 68 compliant due to
the direct connection to the PSTN in Life Line mode.
61200796L1-34D
1 2
STATIONS

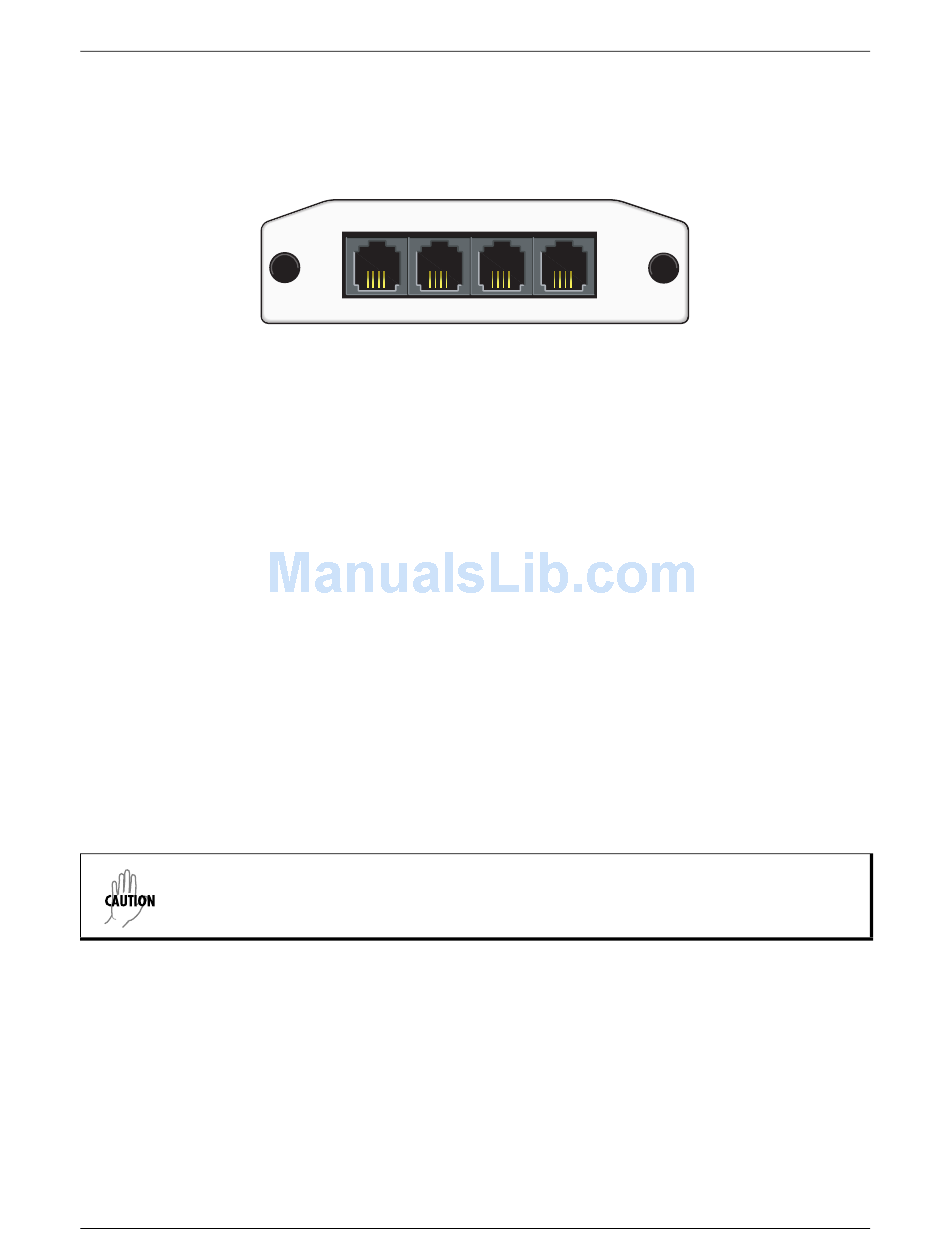

Figure 17. NetVanta Dual FXS/FXO VIM

Features and Specifications
Copyright © 2006 ADTRAN, Inc.
1 2
ANALOG
VIM
TRUNKS
Compliance
• UL 60950, Third Edition/CSA C22.2,
No.60950
• FCC Part 15 Class A and Part 68
• RoHS Compliant (1200692E1 only)
(Telecommunications exemption)
Environmental
• Operating temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
