Option Modules

NetVanta T1/PRI VIM, (P/N 1200695L1)

The NetVanta T1/PRI VIM (see Figure 14) adds T1 voice capability to the NetVanta 7100. Refer to
Table A-7 on page 51 for the T1 connector pinouts.
Operating Modes
• Primary Rate ISDN (PRI), CAS
T1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR54016, Bellcore TR 194,
ANSI T1.403
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized
(multiples of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Line
• Internal
61200796L1-34D
NetVanta 7000 Series Hardware Installation Guide

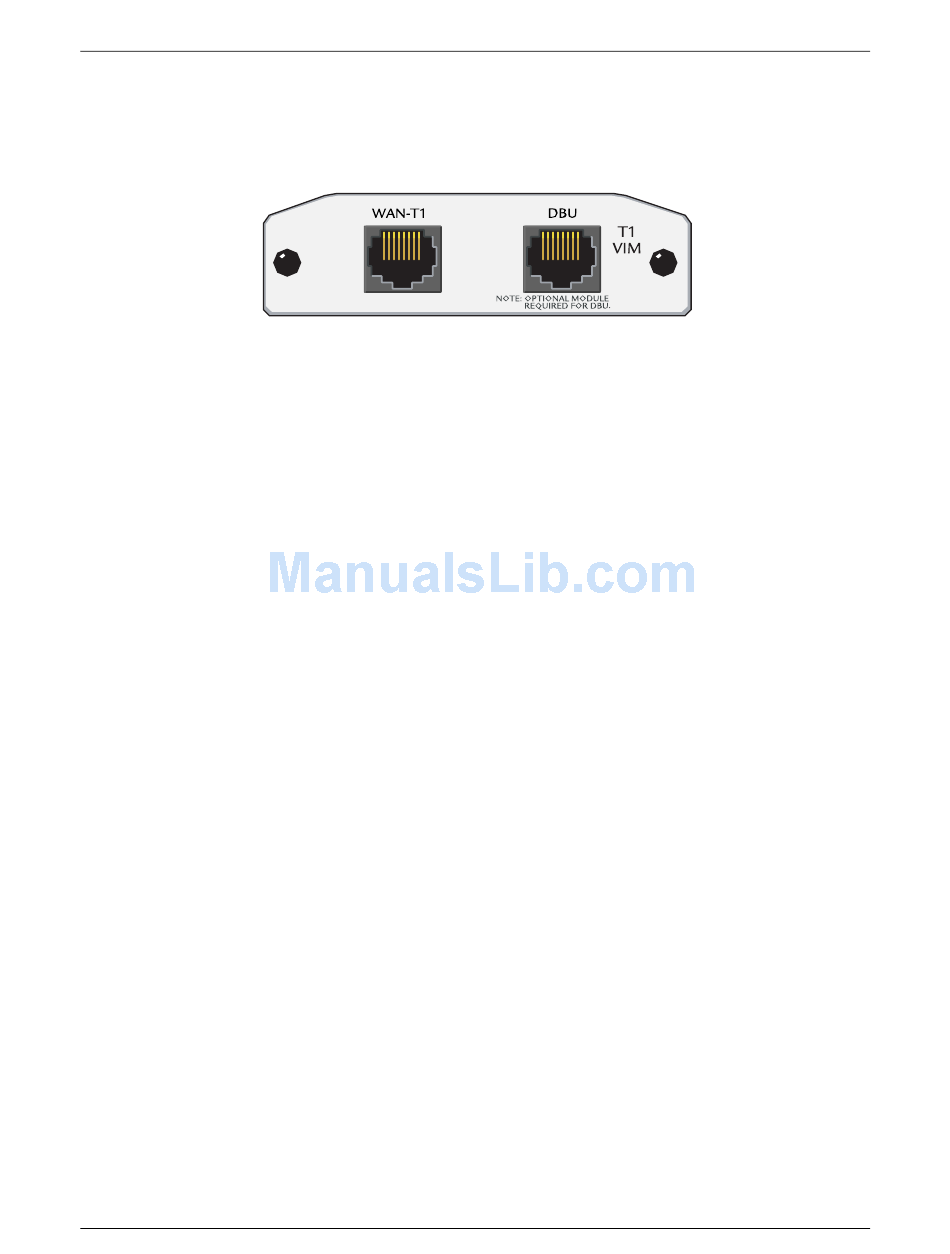

Figure 14. NetVanta T1/PRI VIM

Features and Specifications
Diagnostics
•
•
•
•
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2006 ADTRAN, Inc.
Test Pattern Generation and Detection:
15
QRSS, 2 - 1, all ones, all zeros
Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
Alarm generation detection
Network performance data (15 minutes
and 24 hours)
FCC Part 15 Class A, EN 55022 Class A
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
