Option Modules

NetVanta E1/FE1 NIM (P/N 1200868E1/L1)

The NetVanta E1/FE1 module (see Figure 8) provides a WAN-E1 interface for the NetVanta 7100 meeting
the requirements of ITU-T G.703/G.704. The module provides a single 2.048 Mbps network interface.
Refer to Table A-8 on page 51 for the pinouts. Refer to Table A-14 on page 54 for the DBU connector
pinouts. An optional DIM is required for dial backup applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
WAN-E1 Interface
• Supported Standards: ITU G.703,
ITU-T G.704 (CRC-4), ITU-T G.823,
ITU-T G.797
• Line Rate: 2.048 Mbps +50 PPM
• Line Code: AMI or HDB3
• Framing: FAS with optional CRC-4
• FE1 Line Rate: Channelized timeslot (in
multiples of 64 kbps)
• Receiver Sensitivity: -30 dB
• Connector: RJ-48C
Clock Source
• Network
• Internal
Diagnostics
• Test Pattern Generation and Detection:
QRSS, 511, all ones, all zeros
• Network loopbacks
• Network performance data (15 minutes and
24 hours)
• Alarm generation and detection
61200796L1-34D
NetVanta 7000 Series Hardware Installation Guide
WAN-E1

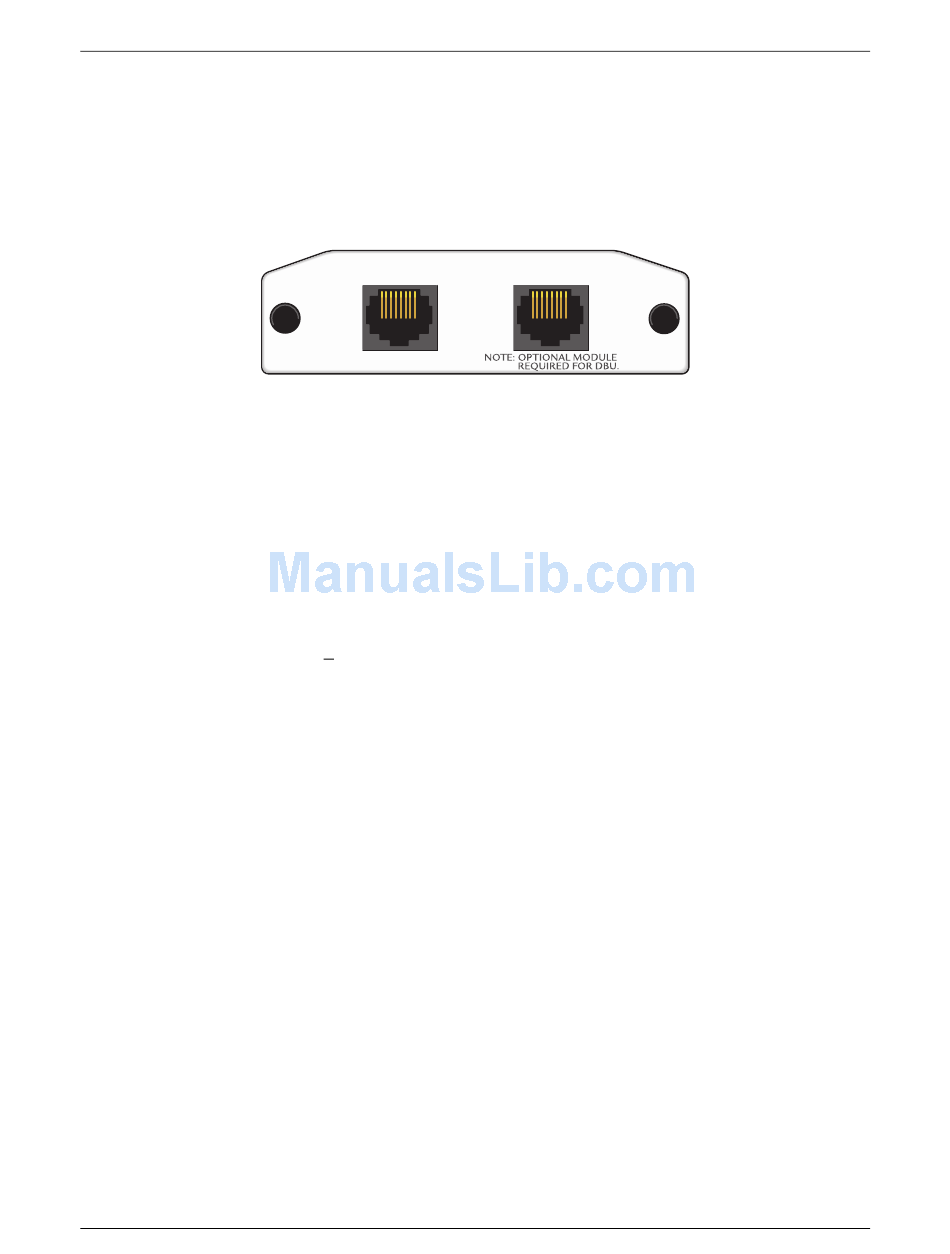

Figure 8. NetVanta E1/FE1 NIM

Features and Specifications
Compliance
•
•
•
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2006 ADTRAN, Inc.
DBU
EMC - see Electromagnetic Compatibility
(EMC) Table for the NetVanta 7100 on
page 6.
AS/ACIF S016
ETSI TBR 12/TBR 13
EN 60950
IEC 60950
AS/NZS 60950
RoHS Compliant (1200868E1 only)
(Telecommunications exemption)
Operating temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
