NetVanta 7000 Series Hardware Installation Guide

Network Interface Modules

NetVanta 56K/64K NIM (P/N 1200861L1)

The 56K/64K NIM (shown in Figure 3) provides a DDS WAN interface for the NetVanta 7100. This
module provides a single 56K or 64K DDS network interface. Refer to Table A-6 on page 51 for the
WAN-DDS connector pinouts, and Table A-14 on page 54 for the DBU connector pinouts. An optional
DIM is required for dial backup applications.
Operating Modes
• Dedicated DDS (leased line)
DDS Interface
• Supported Standards: AT&T TR 62310
• 4-wire, full-duplex
• Receiver Sensitivity: -45 dB, all rates
• Data Rates: 56K, 64K, and auto
• Connector: RJ-48C
Clock Source
• Network
• Internal
Diagnostics
• CSU and DSU Loopbacks
61200796L1-34D

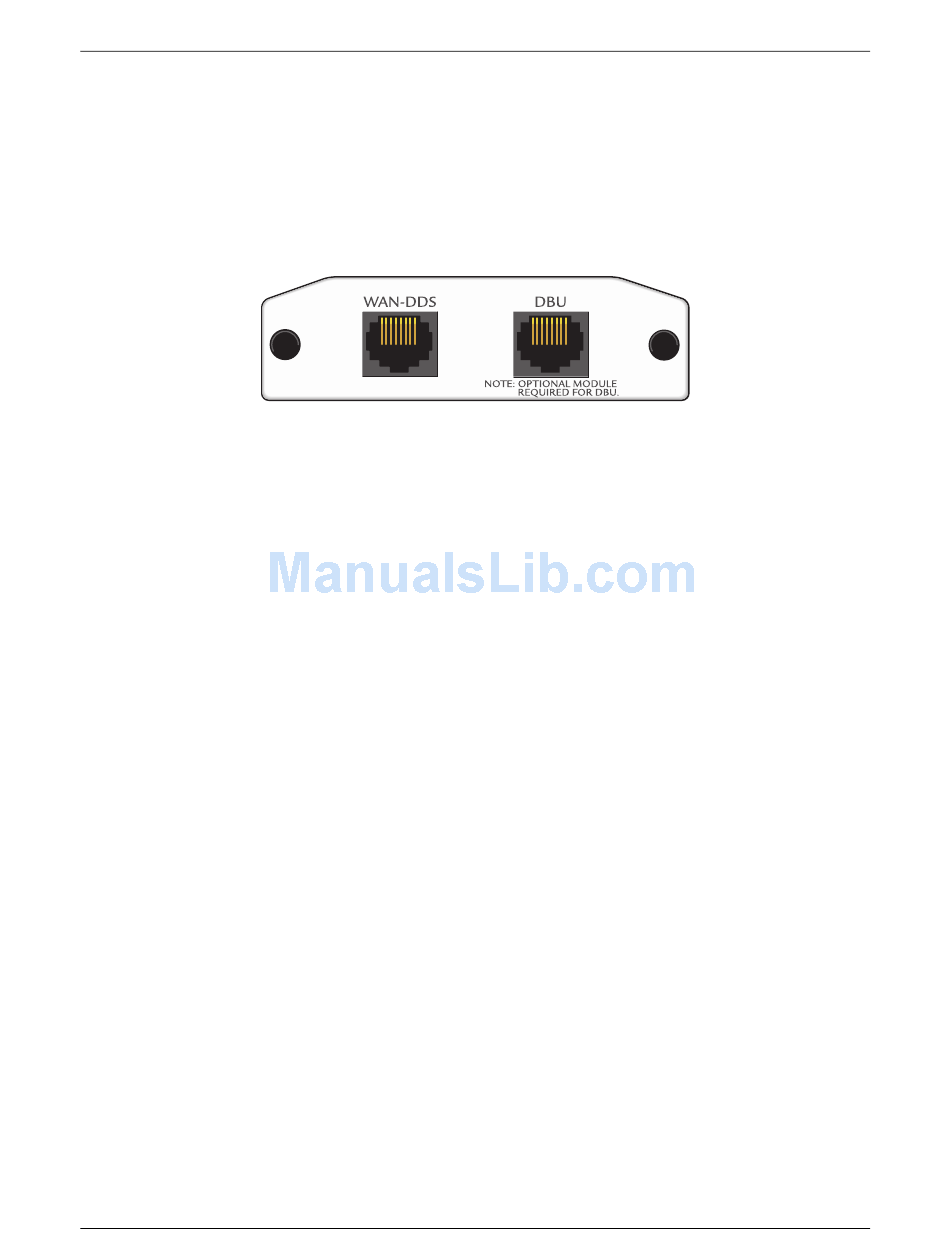

Figure 3. NetVanta 56K/64K NIM

Features and Specifications
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2006 ADTRAN, Inc.
EMC - see Electromagnetic Compatibility
(EMC) Table for the NetVanta 7100 on
page 6.
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
