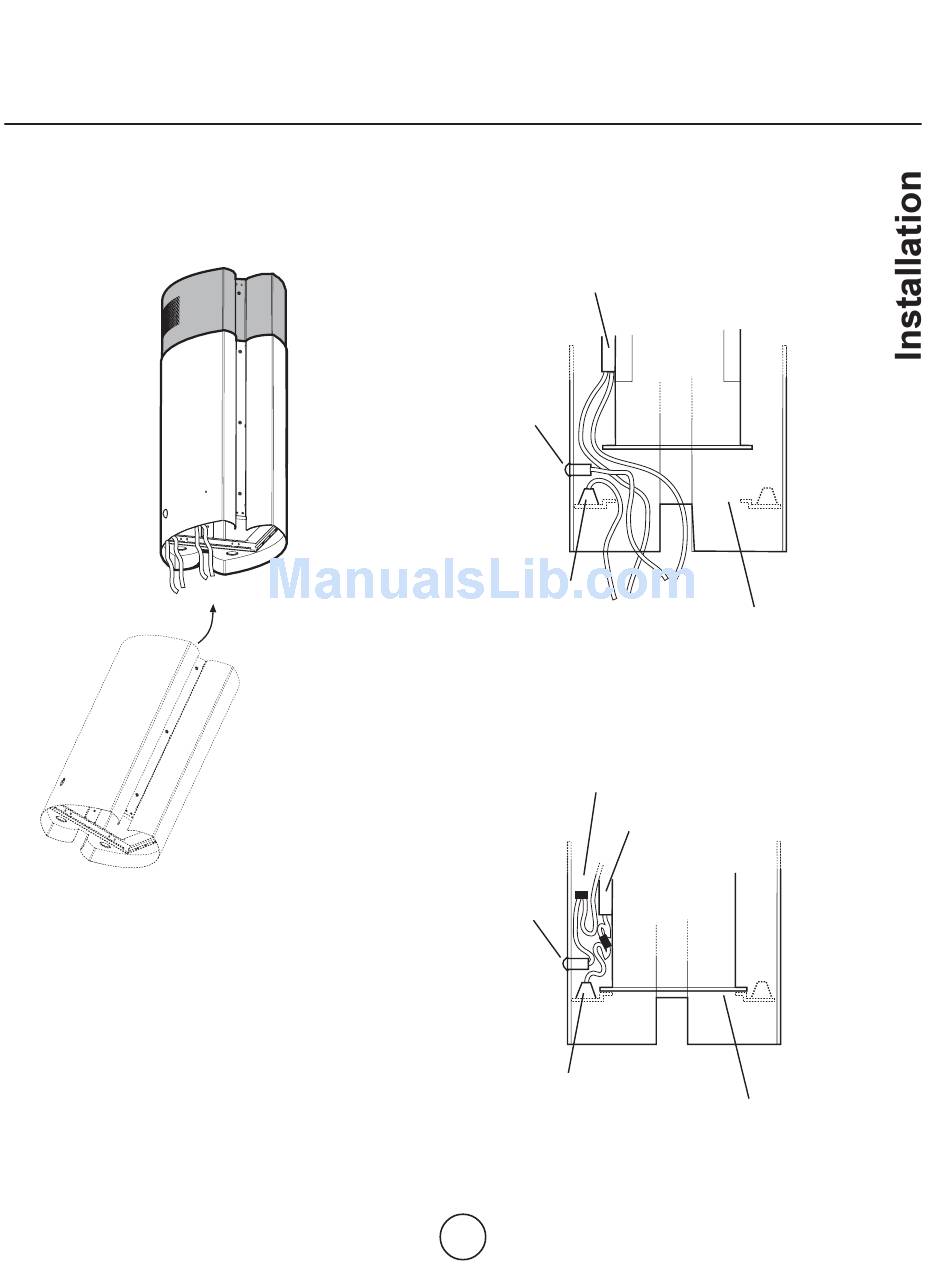

14. Partially raise lower duct cover assembly so to wrap
upper duct cover assembly....................
...................and to have enough space to perform all
connections (lamps and blower) from the inside of
the grease filter housing.............
Electronic box
(Front of the hood)
Control
Ball
Halogen
lamps
...............fold all cables so to avoid any damage
when raising the lower duct cover assembly...........
Check all cables are well
folded in this area
Electronic box
(Front of the hood)
Control
Ball
Halogen
lamps
15
www.zephyronline.com
Chimney
structure
Lower
duct
cover
assembly
Grease
filter
housing
Lower
duct
Chimney
cover
structure
assembly
Grease
filter
housing
