Summary of Contents for Zephyr Milano Wall ZMI-M90AG

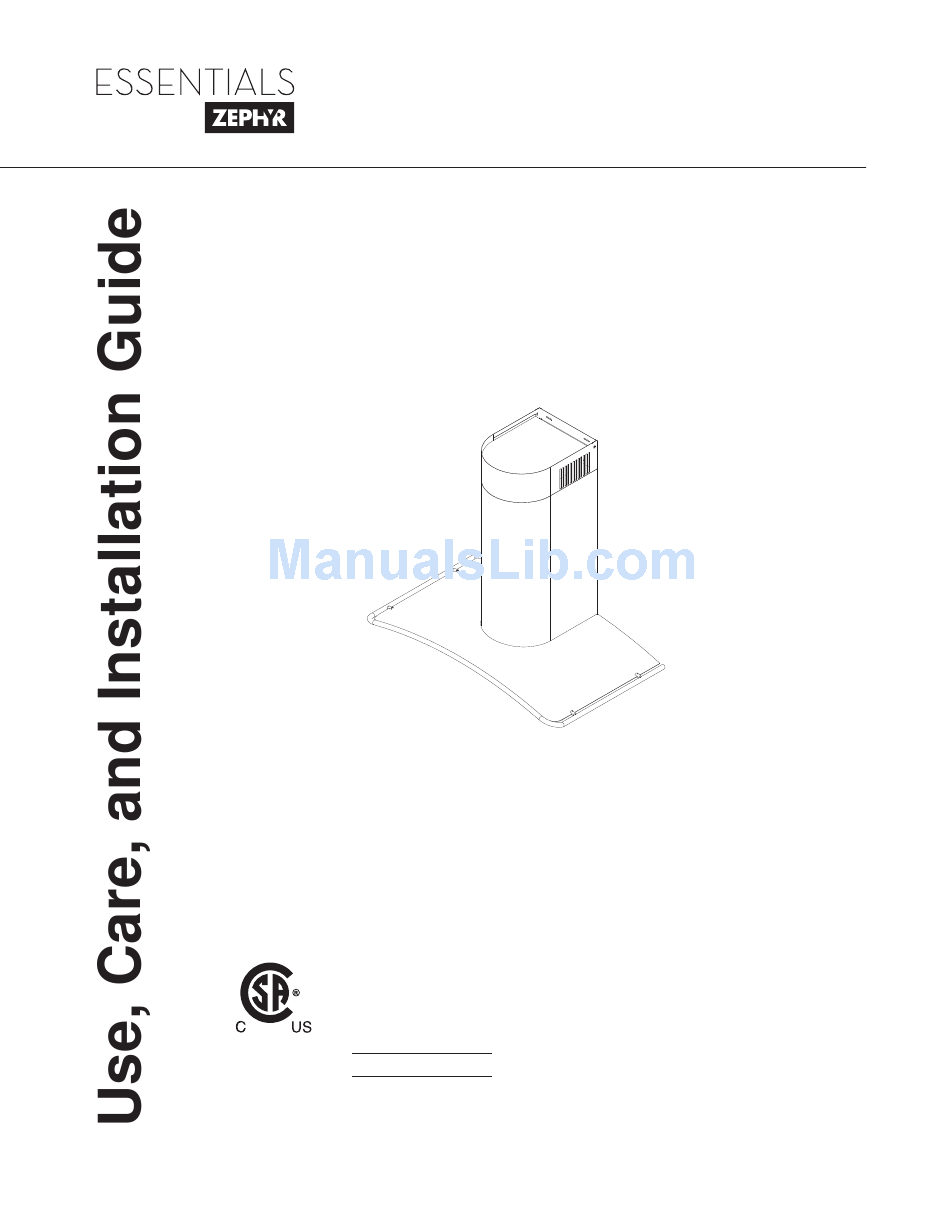

- Page 1 Milano Wall ZMI-M90AS ZMI-M90AG Model number: Serial Number: FEB09.0201 © Zephyr Corporation...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE LIST OF MATERIALS INSTALLATION Ducting Calculation Sheet Mounting Height & Clearance Ducting Options Hood Specifi cations Mounting the Range Hood Ductless Recirculating FEATURES & CONTROLS Touch Controls Charcoal Filter Replace Reminder Metal Mesh Filter Clean Reminder MAINTENANCE Hood and Filter Cleaning Lights TROUBLESHOOTING LIST OF PARTS AND ACCESSORIES...
- Page 4 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 5: Operation
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi... -
Page 6: Hardware Package Contents
MODELS: ZMI-M90AS ZMI-M90AG PARTS SUPPLIED HARDWARE PACKAGE CONTENTS (4) 3/16” x 8 (3) M4 x 1-1/2” (1) Suction Cup (3) Wire Nuts PARTS NOT SUPPLIED - Ducting, conduit and all installation tools - Cable connector (if required by local codes) - Duct cover extension accessory - Z1C-00MI - Recirculating kit accessory - ZRC-0040 www.zephyronline.com... - Page 7 Equivalent number Duct pieces length x used 3- 1/ 4” x 10” 1 Ft. Rect., straight 7” Round, 1 Ft. straight 8” Round, 1 Ft. straight 3- 1/ 4” x 10” 15 Ft. Rect. 90 elbow 3- 1/ 4” x 10” 9 Ft.
-
Page 8: Damage - Shipment/Installation
Min. ducted 26-1/2” Min. recirc. 30” Max. 49” * Min 91” Max 121” 36” * The min ceiling height is 94” for recirculating option DUCTING A minimum of 6” round duct must be used to maintain maximum air fl ow effi ciency. Always use rigid type metal ducts only. - Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 www.zephyronline.com side of hood front of hood 10 1/2” 14” min. ducted - 26 1/2” min. recirc. - 30” max. - 49” 23 15/16” 20 1/2” 35 7/16” top of hood 4” 6” Ø 8 1/2” elec. k/o...
- Page 11 CAUTION: At least two installers are required due to the weight and size of the hood. 1. Measure from range top to hood bottom and mark line A. (28” minimum from range top) . 2. Plum and mark center line. 3.
- Page 12 Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and fi ltered by a set of optional charcoal fi lters. The air is then purifi ed and re- circulated back within the home.
- Page 13 Blower On/Off 1. Blower On/Off By pressing the blower is switched on and off. When switched on, the blower starts up on speed level 3. 2. Speed Selection The 6 speed levels are selected by pressing selected. 3. Delay Off This feature is used for programmed shut down of dot flashes in the lower right side of display minutes.
- Page 14 Charcoal Filter Change Reminder (charcoal filter, if installed) When your hood is installed as a recirculating unit, it is fitted with a set of charcoal filters to purify exhaust and fumes from cooking, then re-circulates the air within the home. These charcoal filters are required to be replaced after every 120 hours of use.
- Page 15 Metal Filter Clean Reminder (metal mesh filter) Whether your hood is installed as an exhaust or purifying unit, a set if metal mesh filters are fitted by the factory, These metal mesh filters are intended to filter out residue from cooking. They need not be replaced on a regular basis but are required to be kept clean.
-
Page 16: Surface Maintenance
SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent , or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 17: Replacing Light Bulbs
If bulbs are diffi cult to turn due to prolonged use, fi rmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove and turn counter clockwise. Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen. For Zephyr part numbers please turn to page 17 of the manual. of the... - Page 18 TROUBLESHOOTING PROCEDURES FOR MILANO WALL Issue Cause After installation, 1. The power source is not turned ON. the unit doesn’t work. 2. The power line and the cable locking connector is not connecting properly. 3. The switch board and control board wirings are disconnected.
- Page 19 DESCRIPTION Replacement Parts Light Bulb GU-10 50W (each) Metal Mesh Filter (each) Optional Accessories Recirculating Kit Replacement Charcoal Filter Duct Cover Extension To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368 PART# Z0B-0020 50200011 ZRC-0040 Z0F-C002 Z1C-00MI...
- Page 20 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
