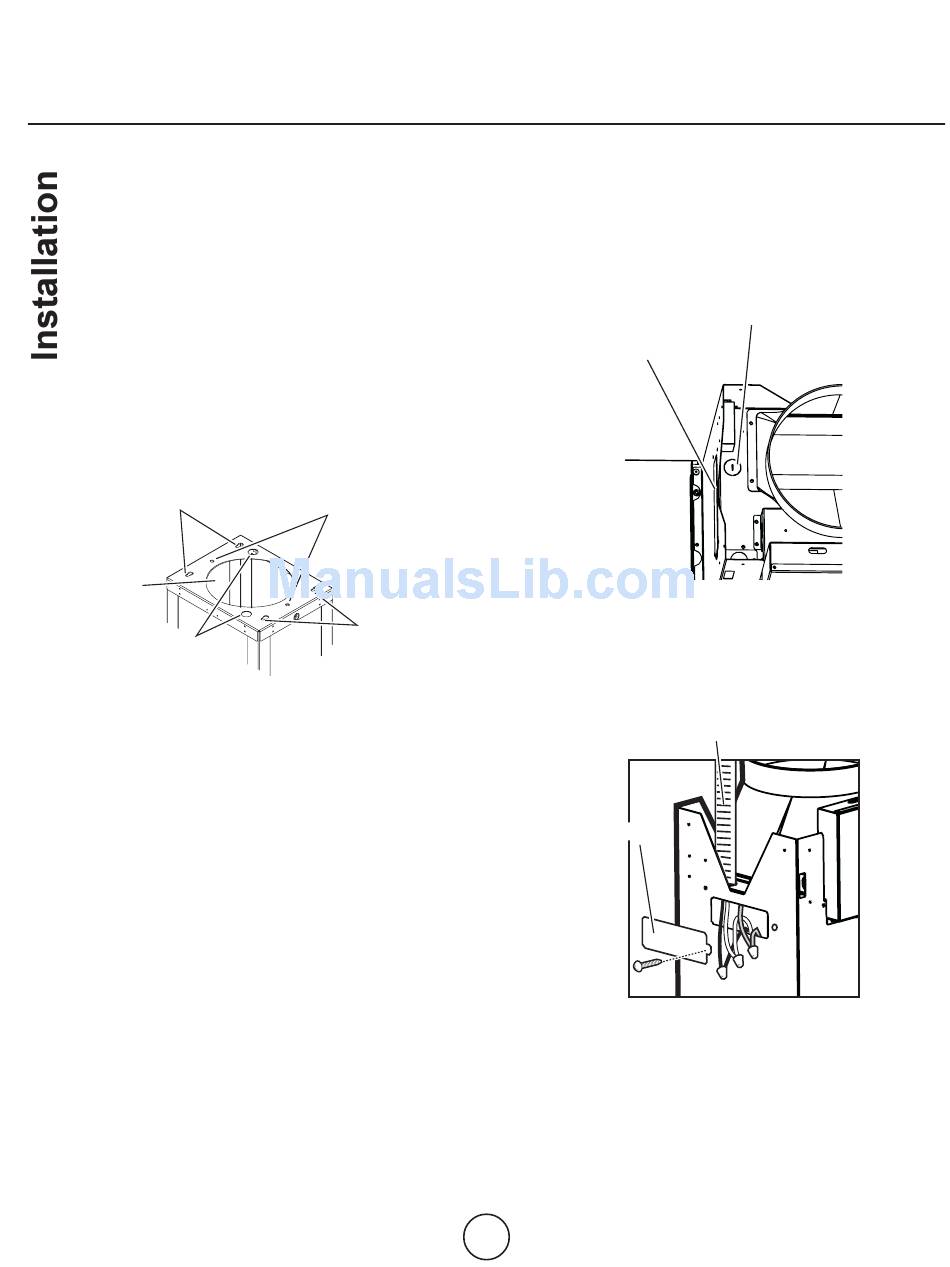

5. Raise chimney structure up to ceiling (keep 1/2“
conduit and 8“ duct inside the proper passage), use
the 4 screws (see step 2/e and 2/f) to hang the hood.
Note: Chimeny structure front corresponds to side
with electronic box.
WARNING
Excessive Weight Hazard
Use two or more people to move and install range
hood.
Failure to do so can result in back or other injury.
Make final angular adjustment to structure at ceiling if
necessary then securely tighten 4 ceiling lag screws.
Fit two additional screws for definitive fixing.
Lag
screws
Duct
passage
Conduit
passage
6. Connect ducting to transition. Seal with duct tape.
Do not use duct smaller than the transition.
For Ductless - recirculating - installations only:
provide and install a duct to connect hood transition to
deflector (the deflector is available as an extra kit).

7. Electrical connection

WARNING
Electrical Shock Hazard
Warning: Turn off power circuit at the service panel
before wiring this unit.
120 VAC, 15 or 20 Amp circuit required.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FITTED WITH AN ELECTRICAL
JUNCTION BOX WITH 3 WIRES, ONE OF WHICH
(GREEN/YELLOW) SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST ELECTRIC
SHOCK, THE GREEN AND YELLOW WIRE MUST BE
CONNECTED TO THE GROUNDING WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST UNDER
NO CIRCUMSTANCES BE CUT OR REMOVED.
Definitive
fixing
Lag
screws
12
Failure to do so can result in death or electrical
shock.
Facing the front of the range hood, remove the left
knockout and the Junction box cover and install the
conduit connector (cULUS listed) in junction box.
knockout
J-Box
cover
Run 3 wires; black, white and green ,according to the
National Electrical Code and local codes and
ordinances, in 1/2" conduit from service panel to
junction box.
Conduit
J-Box cover
Connect black wire from service panel to black or red in
junction box, white to white and green to green-yellow.
Close junction box cover.
