c. Install a 8” exhaust duct and extend length = S - 16“
5/8 from ceiling. Duct shall be securely fastened to
joists. Do not use duct smaller than specified.
Attention: Duct installation is not required for non-
vented (recirculating) installations
d. Install 1/2" electrical conduit in location marked on
template and extend length = S - 11“ 1/8 from
ceiling.
e. Install drywall around duct and conduit; then refinish
ceiling, leave enough clearance for easy installation
of chimney structure up to ceiling (see Installation
step 6).
f. Tape Template in place and fit 4 screws on mounting
holes, do not tighten but leave a space of 1/2“,
remove the template.

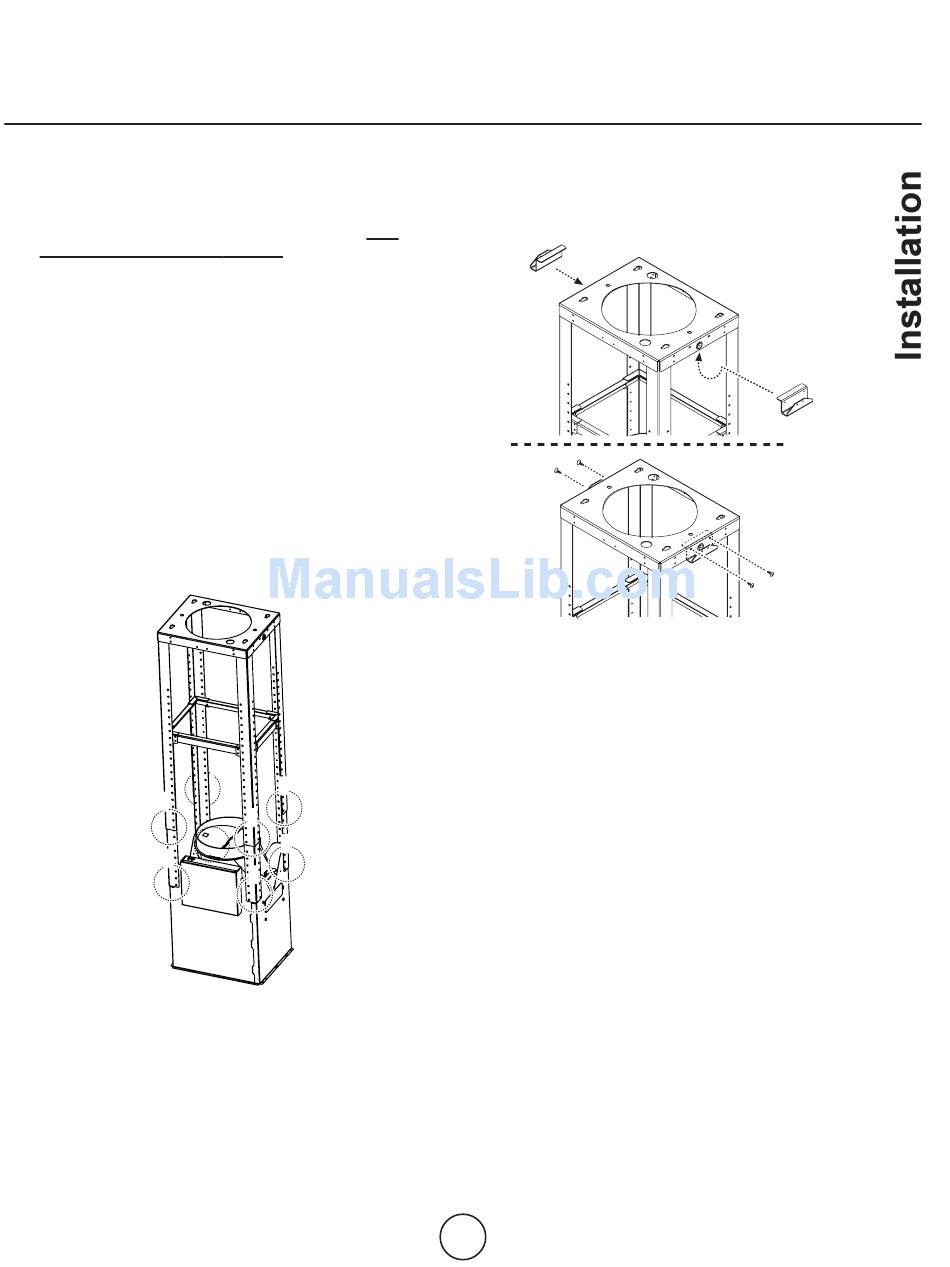

3. Regulate chimney structure according dimension S
(see step 1) and fix all assembly parts with 4 screws
to each bracket (32 screws in total), check structure
is well assembled.
6
7
5
8
FRONT
Total 8 x 4 screws
3
4
2
1
4. Fix two brackets (one per side - with 2 screws
each), these will serve to fix duct covers.
11
