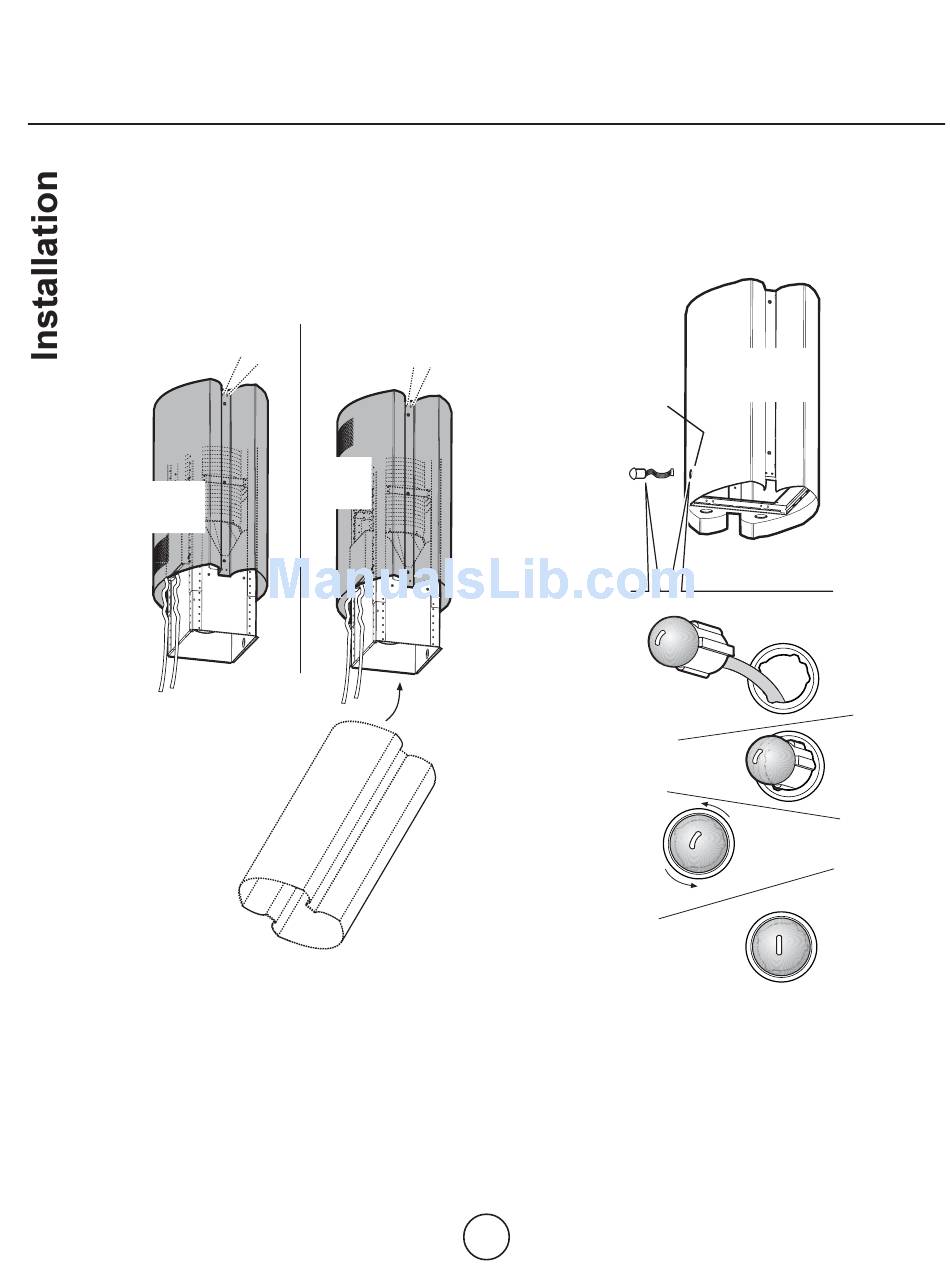

12. Raise top duct covers assembly so to cover the
chimeny structure and fix it on top with 4 screws (2
per side).
Note: Upper Duct Cover may be placed upside down
to hide (or unhide) ductless recirculating slots.
Top fixing screw x 2
recirculating
slots down
-Ducting version only-
Top fixing screw x 2
recirculating
slots
up
14
13. Fit control ball with its molex plug on its housing
and twist in place.
covers assembly
Control Ball
Housing
Control Ball
a
b
OK!
lower duct
°
˜ 15
c
