Summary of Contents for Zephyr Menhir EME-E22AS

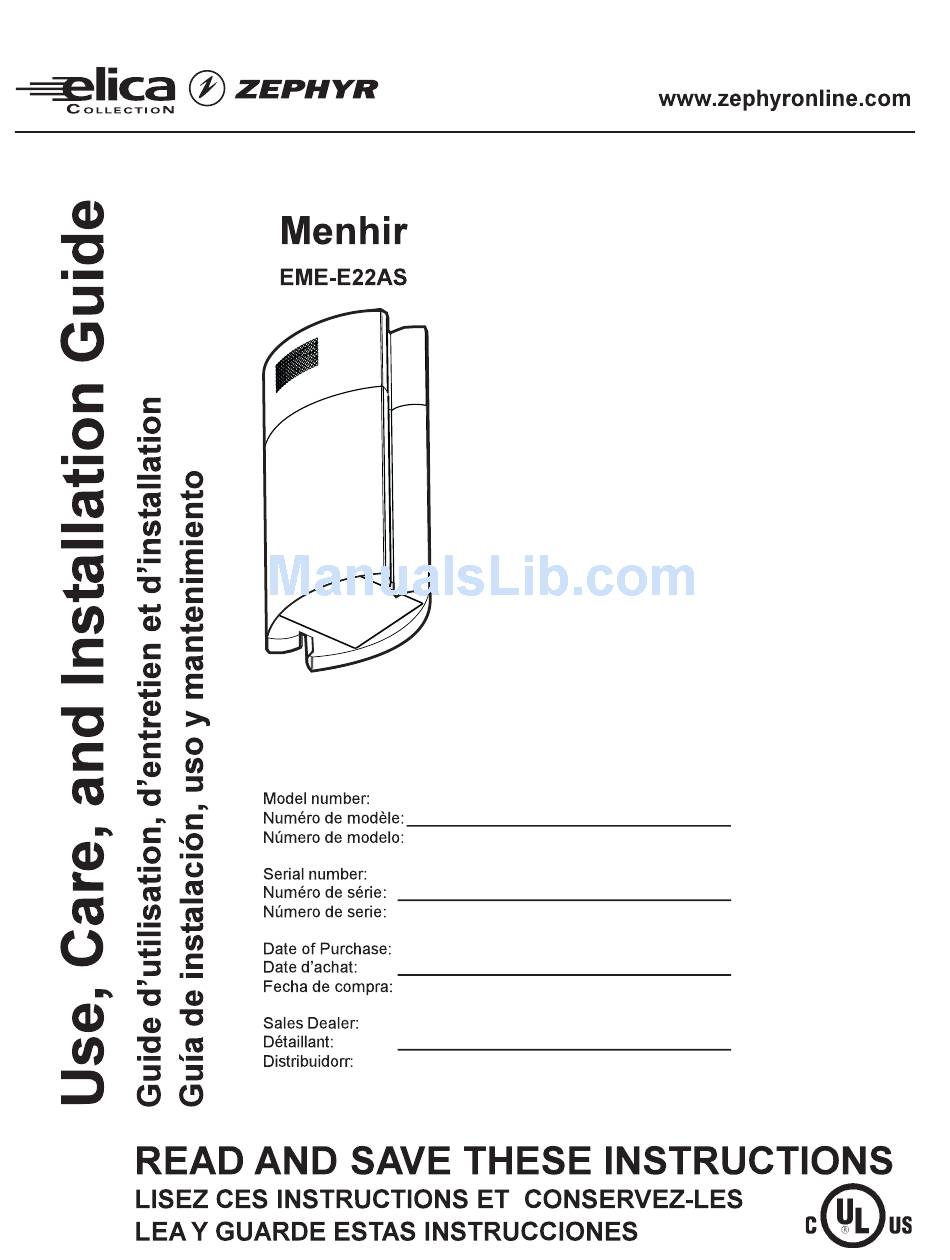

- Page 1 JAN06.0101...
- Page 2 E page F page S page APPROVED FOR RESIDENTIAL APPLIANCES FOR RESIDENTIAL USE ONLY READ AND SAVE THESE INSTRUCTIONS PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING. INSTALLATION MUST COMPLY WITH ALL LOCAL CODES. IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use. INSTALLER: Please leave these Instructions with this unit for the owner.
-
Page 3: Table Of Contents
www.zephyronline.com Important safety Notice ..............4 Electrical & Installation requirements ..........5 Electrical requirements .............. 5 Before installing the hood ............5 List of Materials ................. 6 Parts supplied: ................6 Parts not supplied ..............6 Dimensions and clearances.............. 7 Installation Instructions .............. -
Page 4: Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. B. -
Page 5: Electrical & Installation Requirements
www.zephyronline.com ELECTRICAL REQUIREMENTS Important: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 —... -
Page 6: List Of Materials
PARTS SUPPLIED: • Blower unit • Hood canopy with lower Duct covers assembly • Metal filter x 1 • Halogen light bulb x 4 • Upper Duct covers • Chimney structure • Hardware Packet: Duct supports x 2 Lamp molex plug Control Ball + molex plug Template Use, Care and Installation guide... -
Page 7: Dimensions And Clearances
www.zephyronline.com min 34" 7/16* max 51" 15/16* min 32" 1/16 max 46" 1/16 15" 15/16 22" 1/16 * Ductless (recirculating) version ONLY... -
Page 8: Installation Instructions
Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. VENTING METHODS The hood is equipped with a transition B for discharge of fumes to the outside (Ducting version). Should it not be possible to discharge cooking fumes and vapour to the outside, the hood can be used in the Ductless (recirculating) version. -
Page 9: Installation - Ductwork Calculation Sheet
www.zephyronline.com Duct pieces Equivalent number Duct pieces Equivalent number lenght x used Total lenght x used Total 3 1/4 ” x 10” 1 Ft. 6" Round 30 Ft. x ( Rect., wall cap straight with damper 6 ” Round,, 1 Ft. 6”... -
Page 10: Installation
2. Preparation of mounting surface 1. Pre-installation calculations Installing supports above ceiling drywall. Template Ceiling K = Kitchen Height C = Counter Height (36" standard) P = Prefered Height of Hood 1" 3/4 Bottom above counter (recommended 24”-32”) H = Hood height your installation H = K –... - Page 11 www.zephyronline.com c. Install a 8” exhaust duct and extend length = S - 16“ 4. Fix two brackets (one per side - with 2 screws 5/8 from ceiling. Duct shall be securely fastened to each), these will serve to fix duct covers. joists.
-
Page 12: Electrical Connection
Failure to do so can result in death or electrical 5. Raise chimney structure up to ceiling (keep 1/2“ shock. conduit and 8“ duct inside the proper passage), use the 4 screws (see step 2/e and 2/f) to hang the hood. Facing the front of the range hood, remove the left Note: Chimeny structure front corresponds to side knockout and the Junction box cover and install the... - Page 13 www.zephyronline.com 8. For Ductless (recirculating) installations 11. Assemble top duct covers (those with ductless Install one charcoal filter (available as an extra kit). recirculating slots). Fix each other with 6 screws (3 per side). 9. Connect the molex plug to the electronic box. PLAN DIAGRAM NUTS...
-
Page 14: Description Of Control Panel
12. Raise top duct covers assembly so to cover the 13. Fit control ball with its molex plug on its housing chimeny structure and fix it on top with 4 screws (2 and twist in place. per side). Note: Upper Duct Cover may be placed upside down to hide (or unhide) ductless recirculating slots. - Page 15 www.zephyronline.com 14. Partially raise lower duct cover assembly so to wrap ....and to have enough space to perform all upper duct cover assembly....connections (lamps and blower) from the inside of the grease filter housing..... Electronic box (Front of the hood) Chimney structure Lower...
- Page 16 ....Fix canopy (lower duct cover assembly) to 15. Assemble the lower trim strips (those with hooks) chimney structure with 12 screws. to the lower vent cover assembly. Cut the upper trim strips to length to fit the upper duct cover assembly. Assemble the upper trim strips to the upper duct cover assembly.
-
Page 17: Description Of The Hood & Controls
www.zephyronline.com 1 Control panel 2 Grease filter 3 Halogen lamp (position and nr. of lamps may vary) 4 Hood canopy 5 Duct cover 6 Air outlet (used for Ductless version only) -
Page 18: Controls
CONTROLS Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. -
Page 19: Maintenance
www.zephyronline.com USING THE REMOTE CONTROL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 20: Cleaning
Prior to any maintenance operation ensure that the cooker hood is disconnected from the power supply. CLEANING The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with a neutral liquid detergents. Avoid abrasive detergents. Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. -
Page 21: Trouble Shooting
www.zephyronline.com Issue Cause What to do After installation, the 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit doesn’t work? unit’s power is ON. 2. The power line and the cable locking 2. -
Page 22: Warranty
Product damaged through negligence, misuse, abuse, accident. Improper installation and failure to follow installation instructions. When product is used commercially or other than its intended purpose. Damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than Zephyr’s Authorized Agents. What is Not Covered: Consumable parts such as light bulbs, filters, and fuses. -
Page 23: List Of Parts And Accessories
www.zephyronline.com Part Description Part# Z0B-0009 halogen bulb, 12V 20 W metal filter GF02IA 2009C remote control (RF) remote control battery ..394 of 1.5V. (4 needed) Part Description Part# Ductless Recirculating Kit ZRC-00ME Z0F-C060 charcoal replacement filter duct cover extension kit internal blower - 600 cfm EBI-600A in-line blower - 1100 cfm... - Page 25 www.zephyronline.com...
