ElliptiGO 8S Owner's Manual page 29

Adjusting the Internally-Geared Hub on the 3C Model
1. Place your bike on the kickstand.
2. Do a visual inspection of your shifter cable. Make
sure it is fully seated in the gear shift housing.
Then follow it through the frame to ensure it is not
pinched in the mudguard and is seated properly in the
frame bosses. Finally check to make sure it is seated
correctly in the hub cable bracket that attaches to the
hub.
3. Use the gear shifter to shift up into 3rd gear and then
down into 2nd gear.

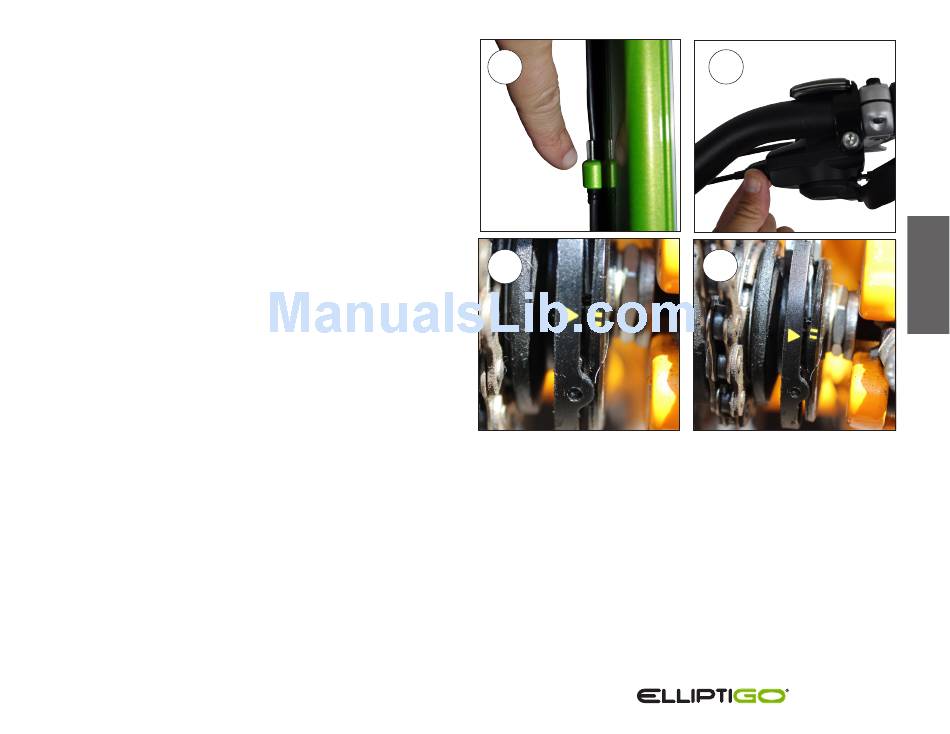

4. Move to the rear of the ElliptiGO and check the
location of the yellow arrow relative to the yellow
lines on the outside of the hub. The point of the arrow
should be in the middle of the yellow lines.
5. If the point of the arrow is not in the middle of the
two yellow lines, you will need to adjust it using the
barrel adjuster on the gear shifter.
6. Stand on the right side of the bike facing towards the
bike. If the point of the arrow is above the yellow
lines, rotate the barrel adjuster clockwise (forward
towards the front wheel) one full turn. If the point
of the arrow is below the yellow lines, rotate the barrel
adjuster counterclockwise (back towards the rear
wheel) one full turn.
7. Now shift into 3rd gear and then back to 2nd gear and
check the alignment. If the point of the arrow is still
not in the middle of the yellow lines, repeat steps 6-7
until it is.
