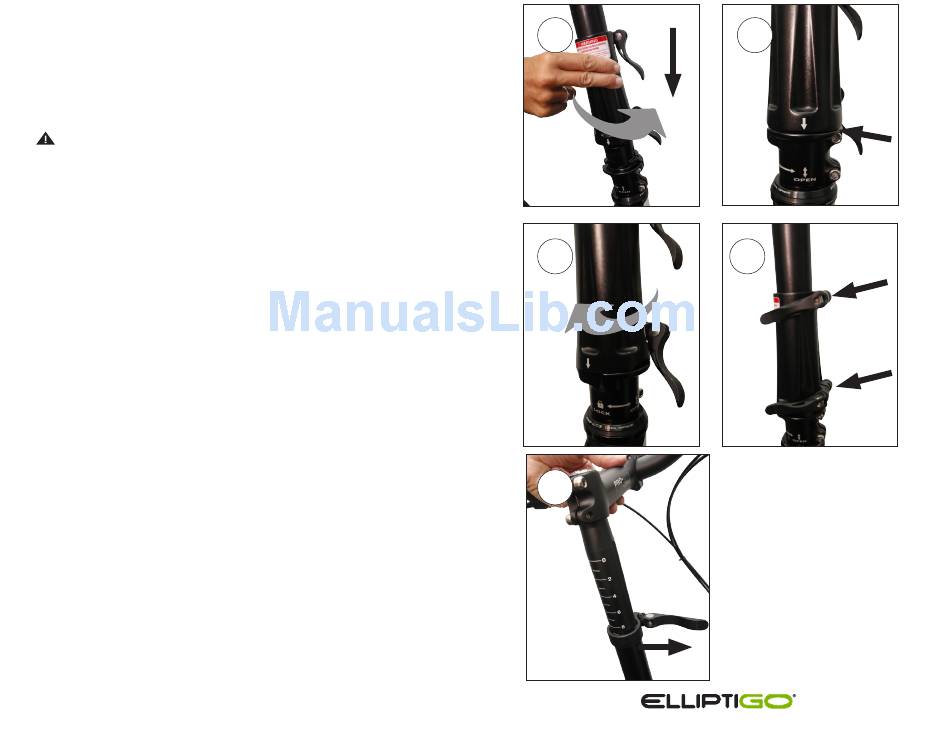

5. Rotate the collar so that the arrow aligns with the "OPEN"
marking on the right side of the steering base.
6. Slide the collar down over the pivot until the bottom of
the collar sits flush on the flange of the base.
WARNING! ENSURE THAT THERE IS NO GAP BETWEEN
THE BOTTOM OF THE COLLAR AND THE STEERING BASE
FLANGE! Allowing a gap between the collar and the base
could result in the collar rising above the pivot during a ride
and the entire steering column collapsing unexpectedly. This
would likely result in the rider losing control and suffering
serious injuries from an ensuing fall.
7.
Rotate the collar clockwise until the arrow on the collar
aligns with the "LOCK" marking on the back of the
steering column base.
8. Close both collar quick releases to lock the collar onto the
steering column. The force applied to closing the lever
should leave an imprint in your hand. See the section on
Quick Release Clamping Systems above for details.
9. Open the steering extender quick release.
5
7
9
6
NO GAP
8
