Outlet Status

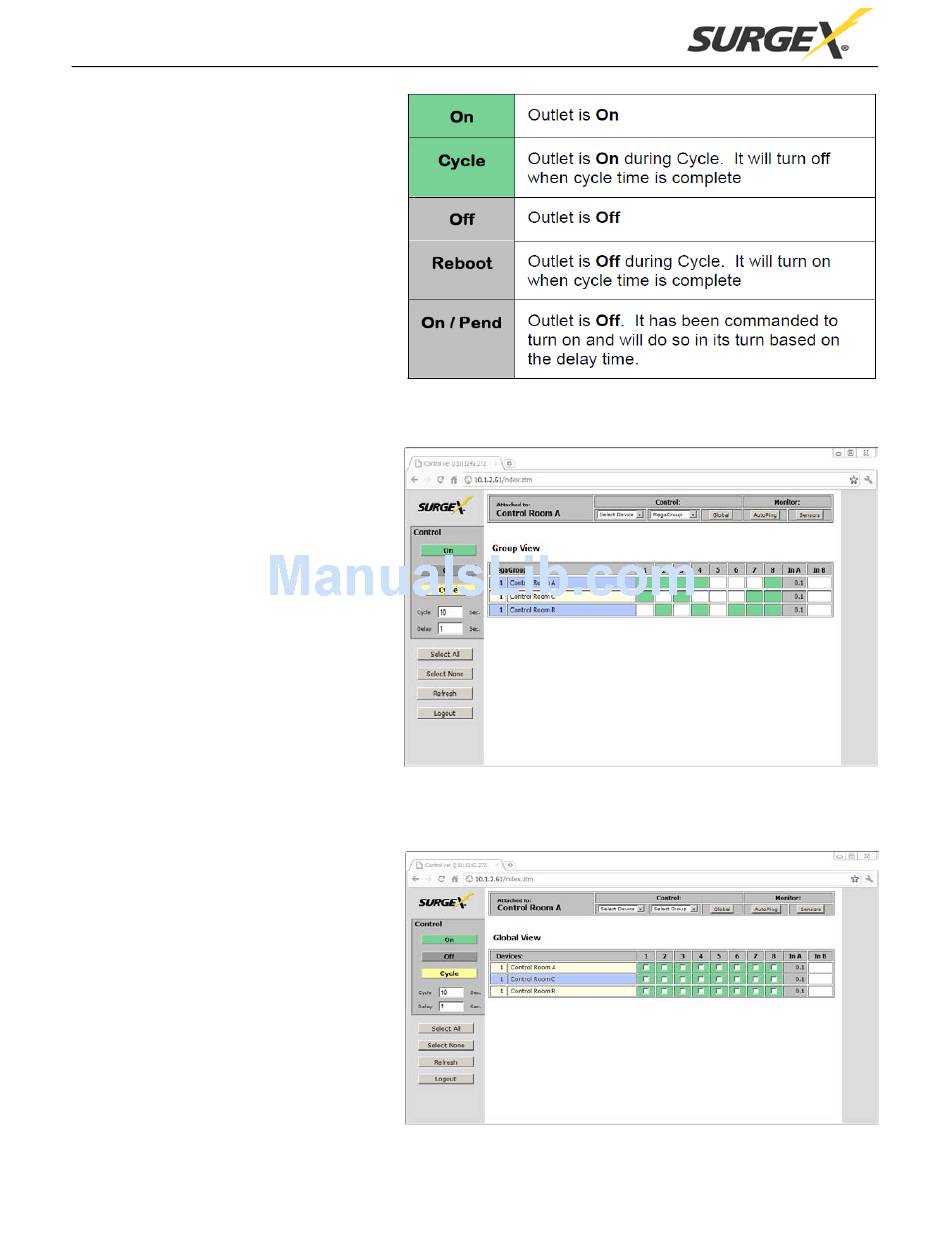

Outlet Status is displayed by a colored
text box. The color indicates the
current status of the outlet, and the
text indicates the function being
performed.
High current or voltage alarms are
highlighted in red; low current or
voltage alarms are highlighted in
yellow.

Group View

The Group View displays the status
of a single group. Groups are two or
more outlets linked together for
simultaneous control. In the group
view, each device containing a
member of the group is displayed on a
line, with the status of the outlets that
are group members. Control the group
by clicking on the appropriate button
in the Control section.

Global View

The Global View displays all
iControls in one view. Each outlet has
a checkbox, allowing multiple outlets
to be simultaneously controlled
without the need to establish a group.
Only outlets that the user has rights to
will have status and control checkbox
displayed.
