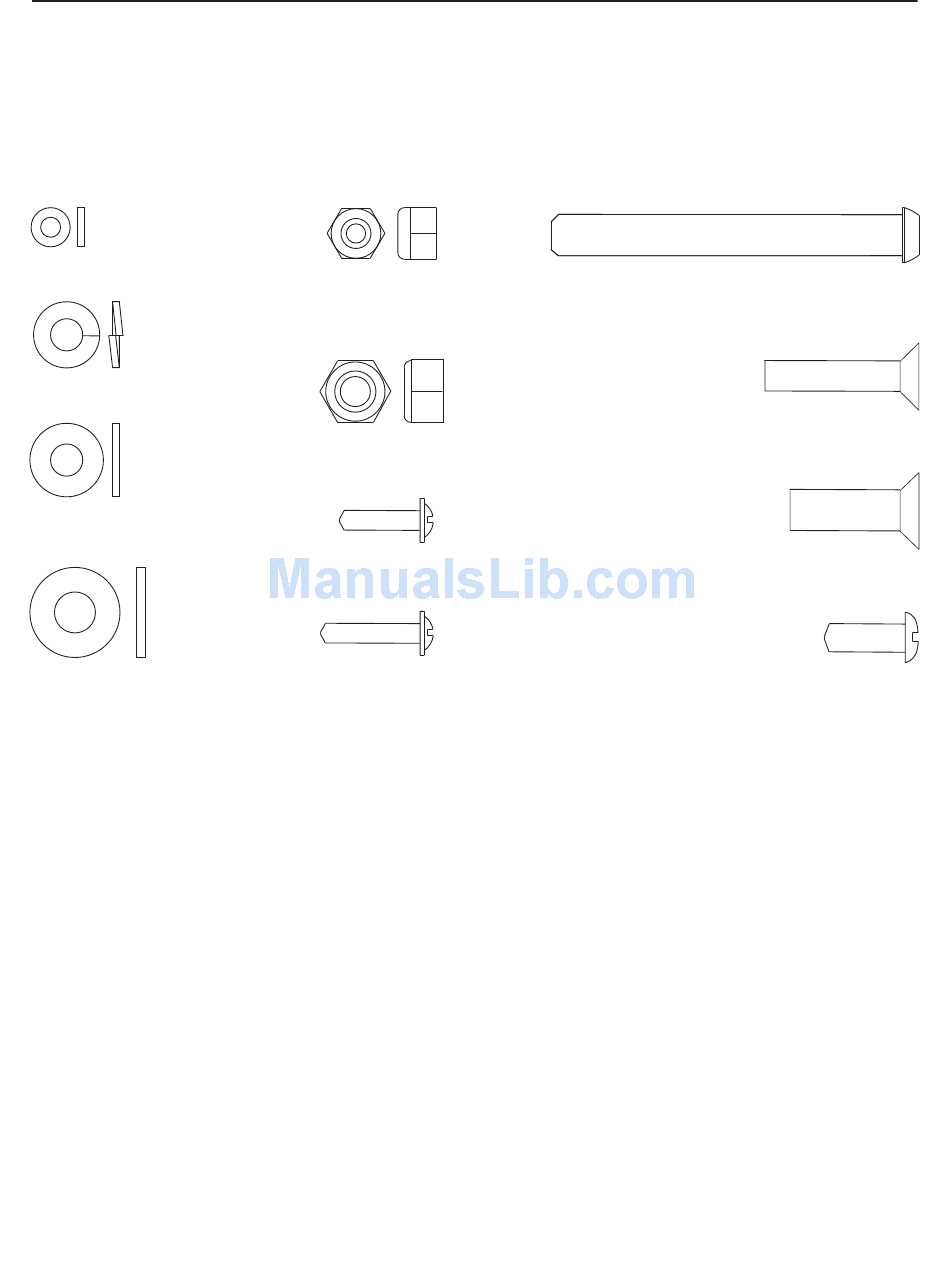

PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST in the center of this manual. Important: Some parts may have
been pre-assembled for shipping purposes. If a part is not in the parts bag, check to see if it has been
pre-attached.
M4 Washer (23)
M6 Lock Washer (39)
M6 Washer (35)
M8 Washer (34)
M6 Nylon Locknut (32)
M8 Nylon Locknut (31)
M4 x 16mm Self-tapping Screw (28)
M4 x 20mm Self-tapping Screw (27)
—Model No. PFBE1144.0
M6 x 27mm Flat Head Bolt (24)
M8 x 25mm Flat Head Bolt (33)
R0205C
M8 x 70mm Button Bolt (25)
M6 x 16mm Screw (38)
