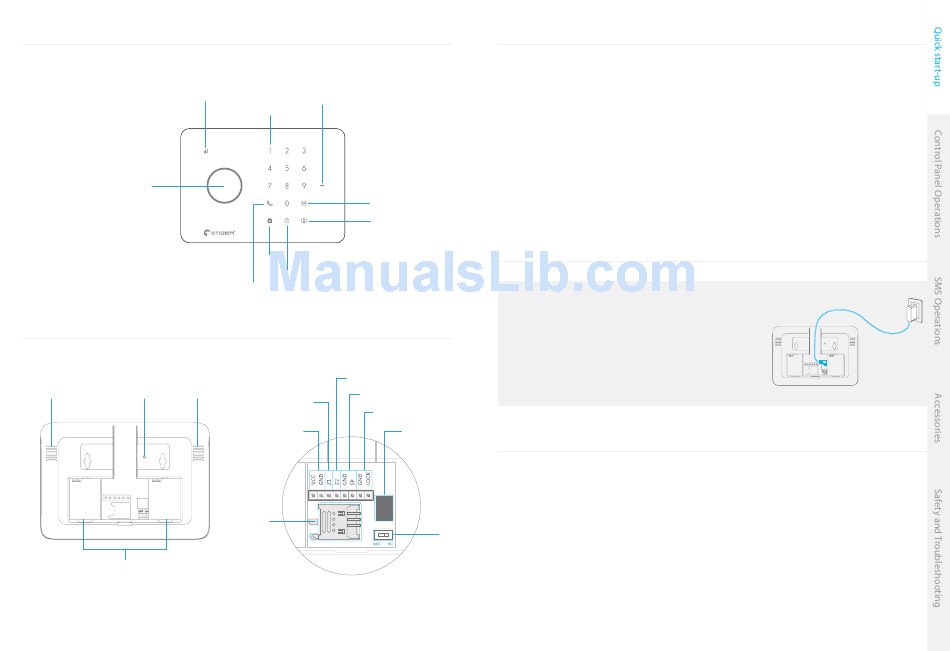

Control Panel Layout (Front)

GSM Signal Indicator
Searching GSM network: Blinks once every second
GSM signal is normal: Blinks once every two seconds
RFID player /
Play Voice Memo

Control Panel Layout (Back)

MIC Tamper switch
Battery compartment
4
Status Indicator
Touch Keypad
Arm
Disarm
Call
Wired sensors
(Normal zone)
Wired sensors
Wired siren 500mA
Loudspeaker
(24h zone)
Electronic lock
Output for
wired sensors
SIM card Slot

Connect your System

Open the battery case at the back of the control panel and insert a SIM card in the control
panel.
Important
Before using the S3b Sim Secual, you need to purchase a SIM card that works on the GSM
network with 850 / 900 / 1800 / 1900 MHz frequency. We recommend you to subscribe to
a plan with unlimited texts and one hour of voice. For more information, please contact
your local reseller.
Important
Make sure the SIM card does not require any PIN code. For more information, please contact
Record Voice Memo /
Connection Button your local reseller.
Stay Arm (Home Mode)
Turn your System On
1. Plug the AC adaptor to an AC socket.
2. Plug the output connector of the AC adaptor into the
adaptor interface in the battery compartment at the
back of the control panel.
3. Turn the power switch to "ON" (in the battery
compartment at the back of the control panel).
Adapter interface

Mount the Control Panel

Before mounting the control panel on the wall, make sure the reception of the GSM signal is
sufficient.
Fix the wall-mounting bracket on the wall with screws. Wedge the panel on the bracket, make
sure they fit well.
Power
On/Off
