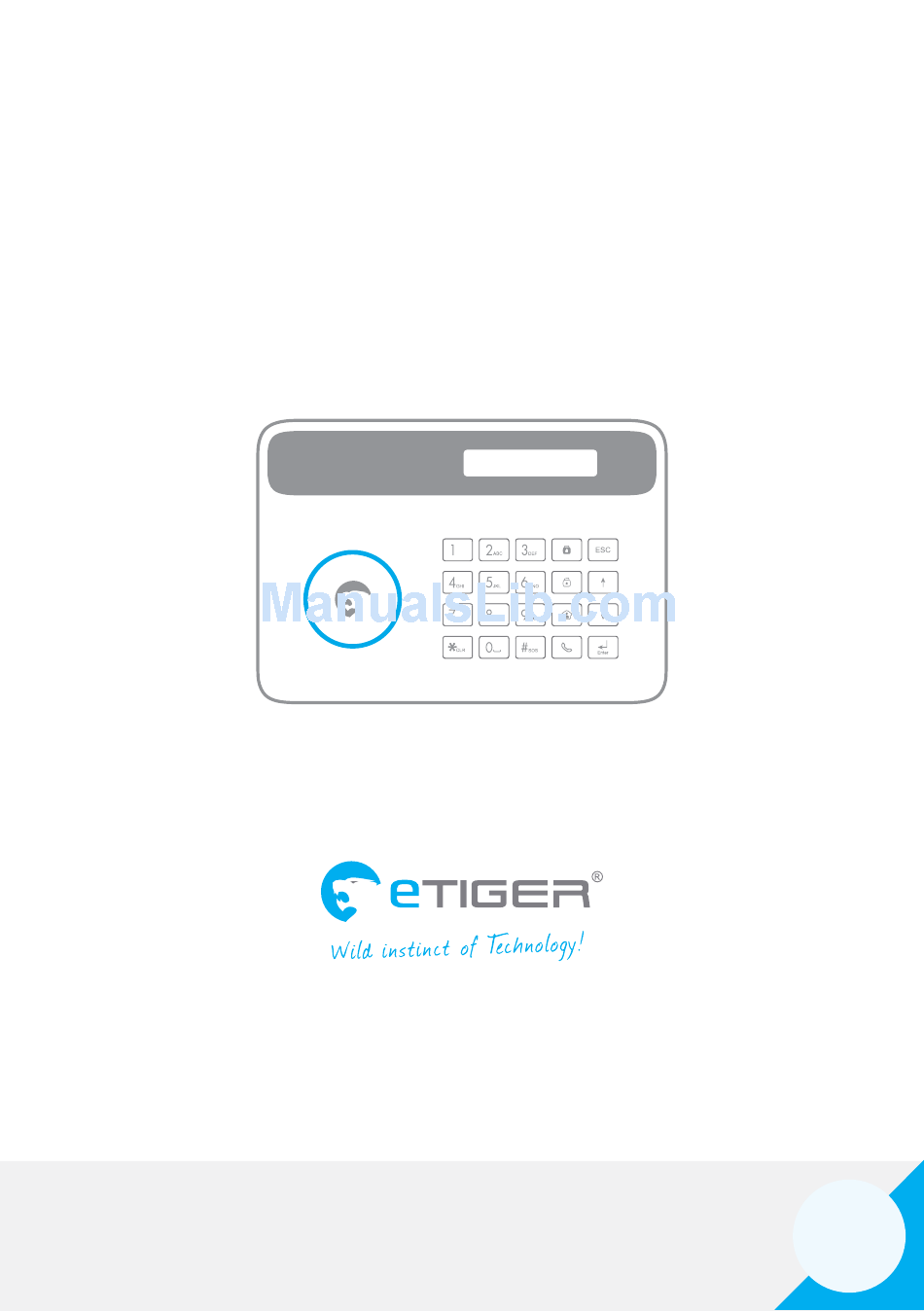

Page 1: Quick Start Guide
Quick Start Guide Security Kit - S4 Cell + Line www.etiger.com... - Page 2 Landline or SIM card? How do you wish to interact with your control panel? Using a landline connection enables a basic interaction with your alarm system (by phone call). Using a SIM card (sold separately) enables a more advance interaction with your system (by phone call, SMS or app). Using both the SIM card and the landline connection offers...
- Page 3 This step only applies if you are using your system with a SIM card. Control panel’s SIM card Settings SIM PIN Request a PIN code to unlock the phone. Disable the security of your control panel’s SIM card The control panel of the Security Kit can interact with you thanks to a SIM card (sold separately).
- Page 4 This step only applies if you are using your system with a SIM card. Insert the SIM card in the control panel Open the battery compartment at the back of your control panel and insert the SIM card in the SIM card slot. Important Insert the SIM card according to the shape of the SIM card slot.
- Page 5 This step only applies if you wish to connect your system to a landline. Connect the control panel to your landline Connect the smaller connector of the telephone cable (supplied in your kit) to the landline interface in the battery compartment at the back of the control panel.
-
Page 6: Turn The Control Panel On
Turn the control panel on Plug the AC adaptor to an AC socket. Plug the output connector of the AC adaptor into the adaptor interface in the battery compartment at the back of the control panel. Turn the power switch to “ON” and put back the cover of the battery compartment. - Page 7 Mount the control panel on a wall Screw the wall mount onto the wall where you wish to install your control panel. Fix the control panel on the wall mount. Some advice Make sure the control panel is firmly fixed on the wall mount. Because of the tamper switch, the alarm rings out if the control panel is separated from the wall mount.
-
Page 8: Change The System Language
System Settings Language Change the system language The language of your system can be changed from the menu of the control panel: Type your Admin Code + on the control panel. (Default Admin Code: 123456) Go to System Settings > Language. Select the language and confirm with A piece of advice Type your Admin Code +... - Page 9 System Settings GSM Fail Tip Activate or deactivate the GSM / Landline mode Ignore this step if you are using the control panel with a SIM card AND a landline connection. Using a landline connection only Type your Admin Code + on the control panel.
- Page 10 Phone 1 is: 057890033 Register a phone number This step enables you to define the phone number(s) on which you receive a phone call when the alarm is triggered. Type your Admin Code + on the control panel. Go to Phone number > Phone 1 is and press Enter your phone number and confirm with If you register a phone number and an SMS number, you will be notified by SMS and by phone call in case of alarm.
- Page 11 This step only applies if you are using your system with a SIM card. SMS Num 1 is: 067890033 Register a SMS number This step enables you to define the phone number(s) to which an SMS is sent when the alarm is triggered. Only stored numbers can control and configure the system by SMS and App.
-
Page 12: Advanced Setup
If you are using a landline connection and a SIM card, the call will be made from the landline. Advanced setup For more settings, please refer to the user manual of the control panel, available for download on www.etiger.com/us/support... -
Page 13: Advanced Settings
Advanced settings Connect more sensors Type your Admin Code + on the control panel. Go to Wireless Sensors and press Select the type of zone and press Within the next 15 seconds, trigger the sensor. You hear one beep: the accessory is registered. Change the Access Codes The User Code enables you to disarm your system from the panel. - Page 14 Arm the system Disarm the system Home Mode System status To enable the control by phone call, please refer to the full user manual on www.etiger.com ETIGER USA, Inc. 1500 Fashion Island Blvd., Suite 102, San Mateo, CA 94404, USA support@etiger.com...
