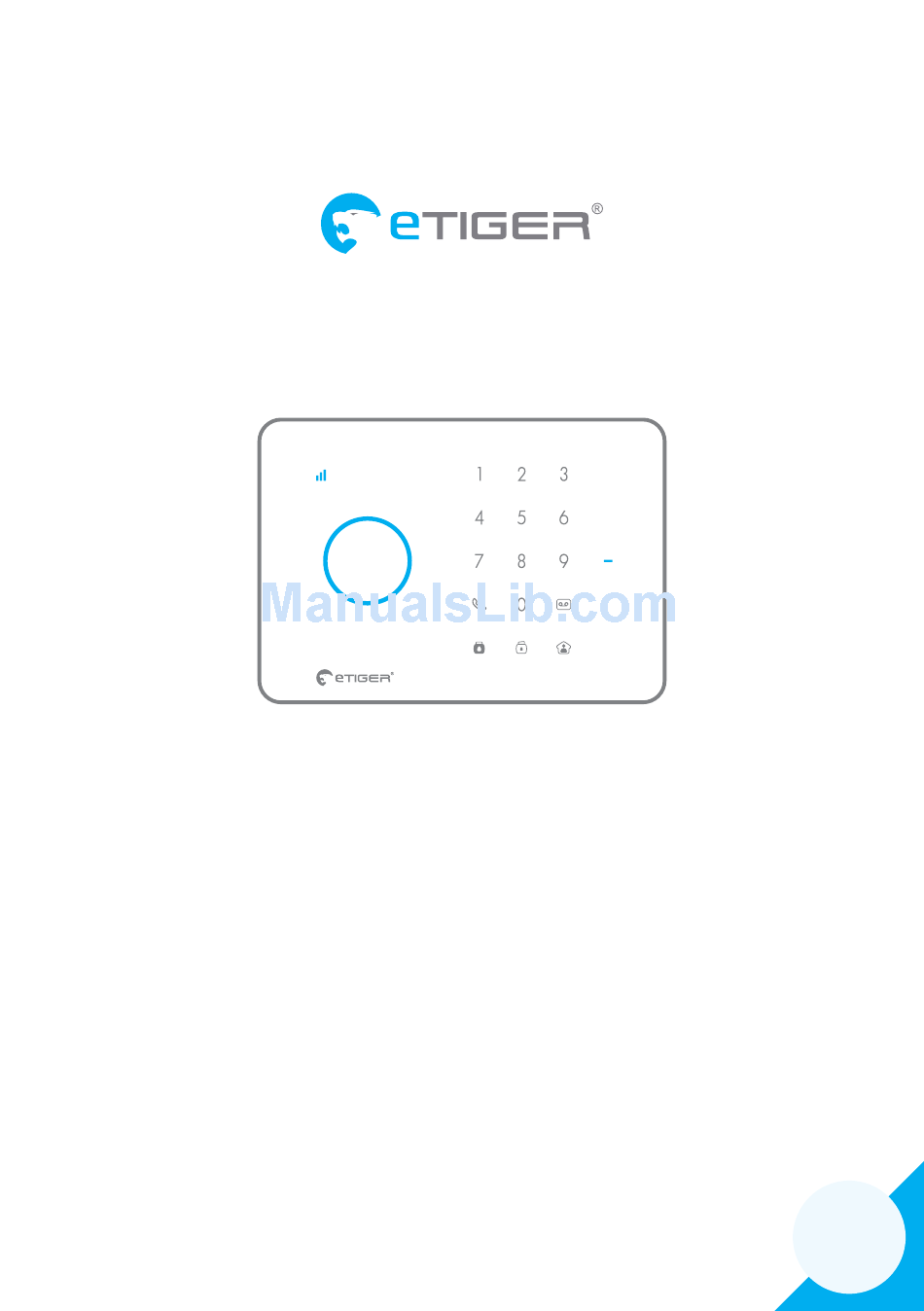

Page 1: Quick Start Guide
Quick Start Guide S3b Sim Secual / S3b Sim Vid Secual www.etiger.com... - Page 2 Control panel’s SIM card Settings SIM PIN Request a PIN code to unlock the phone. Disable the security of your control panel’s SIM card The S3b control panel interacts with you thanks to a SIM card (sold separately). Before inserting your SIM card in the control panel, make sure the SIM security is off.
- Page 3 Insert the SIM card in the control panel Open the battery compartment at the back of your control panel and insert the SIM card in the control panel’s SIM card slot. Attention Insert the SIM card according to the shape of the SIM card slot.
-
Page 4: Turn The Control Panel On
Turn the control panel on Plug the AC adaptor to an AC socket. Plug the output connector of the AC adaptor into the adaptor interface in the battery compartment at the back of the control panel. Turn the power switch to “ON” and put back the cover of the battery compartment. - Page 5 Mount the control panel on a wall Screw the wall mount onto the wall where you wish to install your control panel. Fix the control panel on the wall mount. A piece of advice Make sure the control panel is firmly fixed on the wall mount. Because of the tamper switch, the alarm rings out if the control panel is separated from the wall mount.
-
Page 6: Change The System Language
Blinks once every second: searching GSM network Blinks once every two seconds: GSM reception is ready 0001 Change the system language Send “0001” by SMS to the control panel to set the system language to English. The control panel replies “Ok” as a confirmation. Attention Before sending the SMS, make sure the GSM reception is ready. - Page 7 SMS numbers: SMS numbers: 1.0600112233 Register your phone number(s) This step enables you to define the phone number(s) to which an SMS is sent when the alarm is triggered. Only stored numbers can control and configure the system. Send “6” by SMS to the phone number of the SIM card in the control panel.
-
Page 8: Advanced Settings
You hear one beep: the accessory is registered. A piece of advice Save time and register your accessories using the Connection Assistant in the “Support” section of our website (www.etiger.com). Change the access code Do not forget to change your access code. To change your access code, send “13”... - Page 9 (stop the siren automatically) Start the conversation Start the siren Stop the siren To enable the control by phone call, please refer to the user manual available for download at www.etiger.com eTIGER Europe 18/C, Rue des Procureurs 7500 Tournai, Belgique service@etiger.com...
