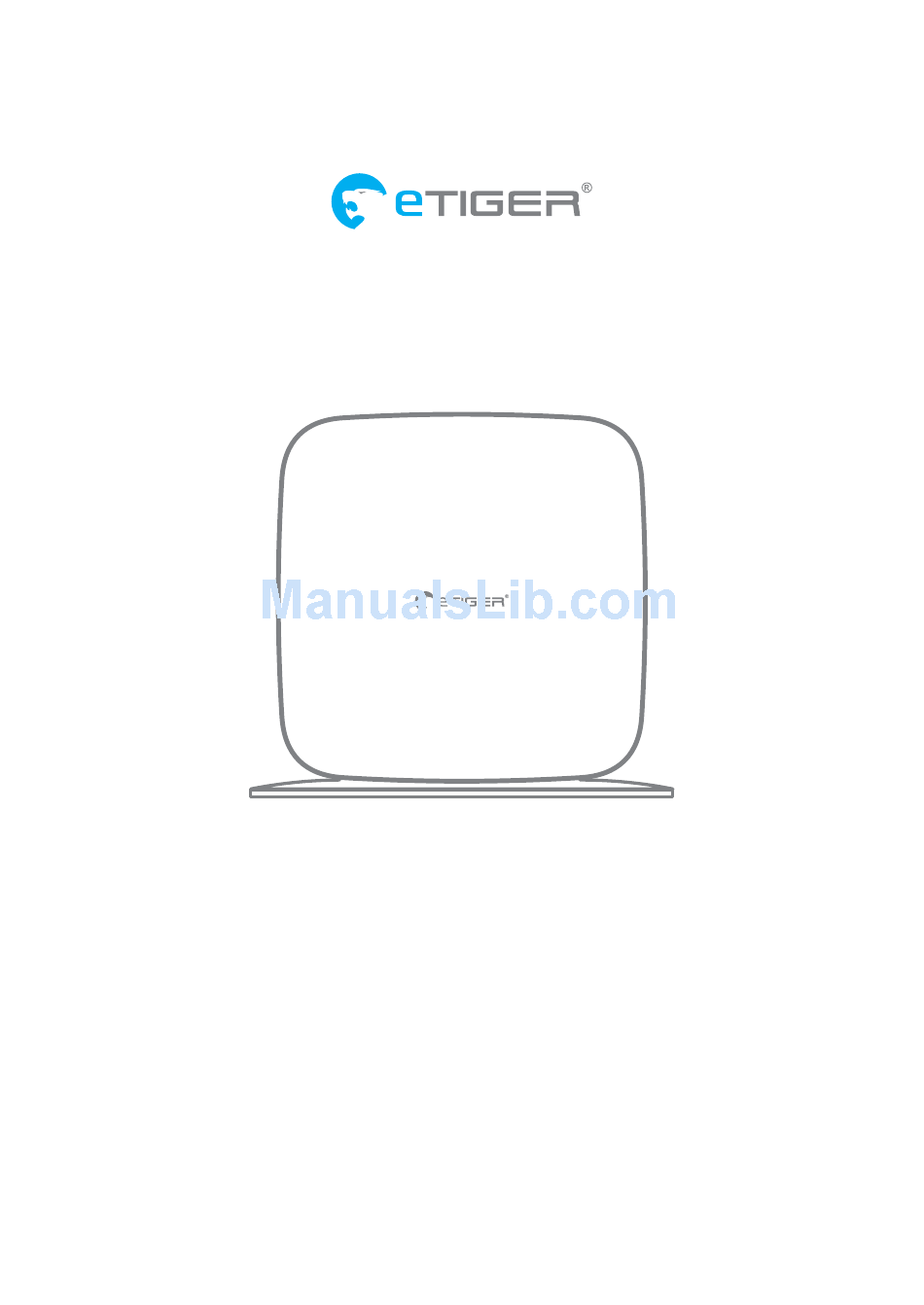

- Page 1 Secual Box User manual www.etiger.com...
-
Page 2: Table Of Contents
.17 Settings How to modify the settings of your Secual Box . . . . . . . . . . . . . . .19 By app (Secual Box connected to Wi-Fi) ......19 By SMS (with a SIM card in the control panel). - Page 3 Rename detectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Change a detector's zone .
-
Page 4: In The Box
Presentation Presentation Setup Daily use Settings Accessories Precautions In the box Control panel x1 ES-D2A (Pet-immune motion sensor) x1 ES-D3C (Door / Window contact) x1 ES-RC1 (Remote controls) x2 AC Adapter x1 Screws and anchors Documentation Design SOS button LED indications SIM card slot Blue fixed: system armed Connection button... -
Page 5: Features
SMS and phone call) Built-in 95 dB siren and backup batteries (lithium, 7.4V 500mAh, up to 8 hours in standby mode) Specifications Product name Backup battery Secual Box Lithium, 7.4V, 500mAh Internal siren ESB-WS1A 95 dB Control panel power supply... -
Page 6: Setup
Secual Setup... - Page 7 Accessories Precautions Before starting: choose your connection The Secual Box can work with a Wi-Fi connection, a SIM card or both. - Wi-Fi connection: enables you to interact with your control panel by app (iOS / Android). All you need is a Wi-Fi connection at home and an Internet connection on your smartphone (Wi-Fi, 4G, 3G).
-
Page 8: Insert A Sim Card In The Control Panel
Insert a SIM card in the control panel This step applies only if you wish to use the Secual Box with a SIM card . You will need a SIM card if you wish to interact with your Secual Box by SMS and phone call. -
Page 9: Turn The Control Panel On
Set up the control panel Setup with Wi-Fi connection Download the ”Secual Box” app on your smartphone. The app is available on the App Store and Google Play. Go to the Wi-Fi settings of your phone and connect to your control panel’s Wi-Fi network. -
Page 10: If You Are Using A Sim Card
If you are using a SIM card If you are using the Secual Box with a SIM card, you can use your Secual Box with or without the app. In both cases, you will need to save at least one SMS number to receive SMS notifications. -
Page 11: Using The App Without Wi-Fi Connection
Precautions Using the app without Wi-Fi connection You can use the Secual Box app even if your Secual Box is not connected to Internet. In such case, the app will rely on SMS to interact with you. Download the ”Secual Box” app on your smartphone and open it. The app is available on the App Store and Google Play. -
Page 12: Daily Use
Daily use... -
Page 13: Arm The System
Daily use Presentation Setup Daily use Settings Accessories Precautions Arm the system When your system is armed, all detectors are active. By app Connect to your alarm and click on "Arm". By SMS Send 1 by SMS to the phone number of the SIM card in the control panel. Only saved SMS numbers can arm the system by SMS. -
Page 14: Disarm The System
Daily use Presentation Setup Daily use Settings Accessories Precautions Disarm the system When your system is disarmed, all detectors are inactive except those assigned to the 24h zone. By app Connect to your alarm and click on "Disarm". By SMS Send 0 by SMS to the phone number of the SIM card in the control panel. -
Page 15: Control By Phone Call
Precautions Control by phone call This function applies only if you are using the Secual Box with a SIM card . This function enables you to control your alarm system by phone call. This can especially be helpful if you are located in an area without Wi-Fi or 3G/4G coverage. -
Page 16: Check System Status
Remark If the dashboard is greyed out, it means you are not connected to your alarm. This can be caused by: No Internet connection on your smartphone Your Secual Box is not connected to your home Wi-Fi network. -
Page 17: If Your Alarm Is Triggered
If you have connected additional sirens, they start ringing out too. On your smartphone (if your alarm is connected to your Wi-Fi network) You receive a push notification in the Secual Box app (you must have an Internet access on your smartphone). -
Page 18: Settings
Settings... -
Page 19: How To Modify The Settings Of Your Secual Box
Read on for the complete list of settings by SMS. A piece of advice You can also modify the settings of your Secual Box by SMS via the app. In such case, you must have set up your control panel as "SIM card only" in the... -
Page 20: Save Sms Numbers
Make sure "SMS" is selected, and edit the numbers as you wish. Important Only the first SMS number will receive notifications in case of low battery of control panel and accessories. Only saved SMS numbers can modify the settings of your Secual Box by SMS. -
Page 21: Save Phone Numbers
Settings Presentation Setup Daily use Settings Accessories Precautions Save phone numbers This function enables you to determine the telephone numbers that will be called by your alarm in case of alert. by app by SMS Send (by SMS, to the telephone number of the SIM card in the control panel): The control panel replies: Phone numbers:... -
Page 22: Entry / Exit Delay
Settings Presentation Setup Daily use Settings Accessories Precautions Entry / Exit delay This function enables you to determine a delay when you leave or enter your home during which detectors will not trigger the alarm. by app by SMS Send (by SMS, to the telephone number of the SIM card in the control panel): The control panel replies: Entry delay time(0-300sec):0... -
Page 23: Siren
Settings Presentation Setup Daily use Settings Accessories Precautions Siren by app by SMS Send (by SMS, to the telephone number of the SIM card in the control panel): The control panel replies: Siren volume(0=Mute,1=High):1 Siren ringing time(1-9min):5 Copy, paste, then edit (case sensitive, do not add spaces): Siren volume(0=Mute,1=High):0 Siren ringing time(1-9min):3... -
Page 24: Change Passcode
Settings Presentation Setup Daily use Settings Accessories Precautions Change passcode The passcode is requested when you want to control your control panel by phone call. by app by SMS Send (by SMS, to the telephone number of the SIM card in the control panel): The control panel replies: Disarm password(4 digits): 1234... -
Page 25: Rename Detectors
Settings Presentation Setup Daily use Settings Accessories Precautions Rename detectors by app by SMS Only detectors 1 to 9 can be renamed by SMS. Send (the second digit corresponds to the detector you wish to rename). The control panel replies: Zones names: Copy, paste, then edit (case sensitive, do not add spaces):... -
Page 26: Change A Detector's Zone
SMS This function cannot be modified by SMS. If you are using your Secual Box only with a SIM card, you can modify the zone of a detector by moving the jumpers with tweezers, according to the drawings below. The jumpers are located on each detector's circuit board. -
Page 27: Rename Controls
Settings Presentation Setup Daily use Settings Accessories Precautions Rename controls by app by SMS Controls (remote controls and keypads) cannot be renamed by SMS. From the dashboard of your control panel, slide from the right to display the options, and click on "Controls". Click on the control you wish to rename, and then tap on the name to modify it. -
Page 28: Delete Accessories
Settings Presentation Setup Daily use Settings Accessories Precautions Delete accessories by app by SMS You cannot delete accessories individually by SMS. However, you can delete all accessories at once. Send: The control panel replies: From the dashboard of your control panel, slide from the right to display the options, and click on "Detectors"... -
Page 29: Change System Language
Settings Presentation Setup Daily use Settings Accessories Precautions Change system language by app by SMS Send the code corresponding to the language you want to set. For example, for English, send: 0001 The control panel replies: All the languages available are listed below: English German 0001... -
Page 30: Restore Default Settings
Settings Presentation Setup Daily use Settings Accessories Precautions Restore default settings by app on the control panel Press the SOS button and the Connection button of the control panel at the same time. The control panel beeps 3 times then 2 times, as a confirmation that it has reset successfully. -
Page 31: Reset Wi-Fi
Settings Accessories Precautions Reset Wi-Fi If you cannot connect to the Wi-Fi network of your Secual Box or if the network is secured, you can reset the Wi-Fi. by app on the control panel This function cannot be done in the app. -
Page 32: Accessories
Accessories... -
Page 33: Pet-Immune Motion Sensor (Es-D2A)
Accessories Presentation Setup Daily use Settings Accessories Precautions Pet-immune motion sensor (ES-D2A) Your kit contains 1 x ES-D2A Design Jumpers for zone setup Tamper switch Antenna Test / Connection button LED indicator Infrared sensor AA 1.5V LR6 Back view Circuit board Detection scope 110°... -
Page 34: Mounting
Accessories Presentation Setup Daily use Settings Accessories Precautions Mounting Fix the bracket on the wall with screws and attach the detector to the bracket. We recommend to mount the detector at a height of 2.2m. The detector is more sensitive to horizontal movements than vertical movements, and does 2.2m not detect animals under 25 kg. -
Page 35: Led Indications
Accessories Presentation Setup Daily use Settings Accessories Precautions LED indications Blinks continuously: self-testing Blinks once: an intruder is detected Blinks twice: self-testing is complete; entering working mode Blinks once every 3 seconds: the batteries must be replaced. (You will be informed by SMS when the batteries are low if the motion detector is registered in the control panel.) Connection to your alarm system... -
Page 36: Door / Window Contact (Es-D3C)
Accessories Presentation Setup Daily use Settings Accessories Precautions Door / Window contact (ES-D3C) Your kit contains 1 x ES-D3C Design Tamper switch Magnet Jumpers for zone setup Transmitter AAA 1.5V Battery LED indicator LED indicator Front view Circuit board Mounting Mount the magnet max. -
Page 37: Specifications
Accessories Presentation Setup Daily use Settings Accessories Precautions Specifications Power supply Housing material AAA 1.5 V Battery x1 ABS plastic Static current Operating conditions ≤ 30 uA Temparature: -10°C~55°C Relative humidity: ≤ 80% (non- Alarm current condensing) ≤ 15 mA Dimensions (LxWxH) Transmitting distance Transmitter: 60 x 45 x 18 mm... -
Page 38: Remote Control (Es-Rc1)
Accessories Presentation Setup Daily use Settings Accessories Precautions Remote control (ES-RC1) Your kit contains 2 x ES-RC1 Design Disarm LED indicator Home Mode Connection to your alarm system The remote controls in your kit are already connected and ready to use. If you have deleted a remote control from the control panel, you can reconnect it as follows: Press once on the Connection button... - Page 39 Accessories Presentation Setup Daily use Settings Accessories Precautions Transmission distance ≤ 80 m (in open area) Radio-frequency: 433MHz (±75KHz) Housing material ABS plastic Operating conditions Temperature: -10°C ~ +55°C Relative Humidity: ≤80% (non-condensing) Dimensions 57 x 31 x 11 mm...
-
Page 40: Connect Additional Accessories
A piece of advice Before connecting your siren to your control panel, make sure there is no entry / exit delay on your Secual Box. If so, delete the delay for the time of the connection. During the connection of your siren, make sure you do not trigger any... - Page 41 Precautions...
-
Page 42: Precautions
Precautions Presentation Setup Daily use Settings Accessories Precautions Precautions For a safer use of the product and to optimize the lifespan of the product, we recommend you to follow the precautions below: The wireless accessories must be connected to the control panel. Low power voltage may affect transmission distance. -
Page 43: Warning
Precautions Presentation Setup Daily use Settings Accessories Precautions Warning ATTENTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 44: Normes
Directive - RoHS) and is deemed to comply with the maximum concentration values set by the European Technical Adaptation Committee (TAC). Manufactured in China. Images, illustrations and text are non-contractual. eTIGER and the eTIGER logo are registered trademarks and the property of eTIGER. Copyright © 2016 eTIGER. All rights reserved. - Page 45 EUROPE 18/C, Rue des Procureurs, 7500 Tournai, Belgium service@etiger.com...
