Wireless Motion Detector

Features
The ES-D1A is a high performance wireless motion detector boasting a digital dual-
core fuzzy logic infrared control chip with intelligent analysis. This technology identifies
interferences created by body motion and reduces the false alarm rate.
With automatic temperature compensation and anti-air turbulence technology, it easily
adapts to environmental changes.

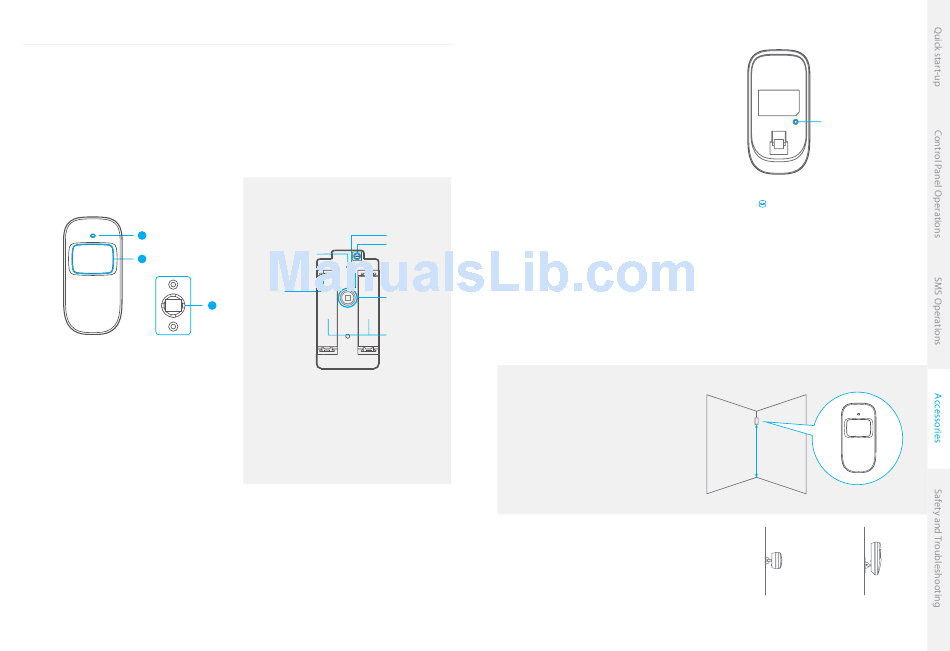

Design
1
2
1. LED indicator
2. Detection window
3. Bracket
LED indications
Blinks continuously: self-testing
Blinks once: an intruder is detected
Blinks twice: self-testing is complete; entering working mode.
Blinks once every 3 seconds: under-voltage indication: the batteries must be replaced. (You
will be informed by SMS when the batteries are low if the motion detector is registered in the
control panel.)
Usage
22
PCB Layout
LED working
indicator
Antenna
3
*Tamper switch
When the alarm system is armed, the tamper
switch will trigger the alarm if the case is
opened.
**Infrared sensor
Detects the infrared rays released by human
body motion. Do not touch the surface. Keep
the surface clean.
Open the case and remove the battery activation strip. Self-testing will start for 30 seconds.
When the sensor is in operation, if it is
triggered more than twice within 3 minutes,
it switches to standby mode to save power.
If no movement is detected within the next
3 minutes, the sensor goes back to working
mode.
Register in the control panel
Type your password followed by the Connection button " " on the control panel to enter the
Connection Mode. Press the connect button at the back of the motion sensor or trigger the
Alarm zone
sensor (by moving in front of it).
setup
Tamper
Installation
switch*
Avoid mounting the detector close to windows, air conditioner, heater, refrigerator, oven,
Infrared
sunshine and places where the temperature changes fast or where the air stream flows
sensor**
frequently.
If two detectors are installed in the same detection scope, adjust the location to avoid
AA 1.5V LR6
interferences and false alarms.
Fix the bracket on the wall with screws
and attach the detector to the bracket.
Adjust the bracket to change the
detection distance and angle. It is
recommended to mount the detector
2,2 m from the ground.
The detector is more sensitive to
cross movements
movements.
2.2 m
Ground
Top view
than vertical
Connect Button
Top
Bottom
Side view
