- Page 1 S3b Sim Secual / S3b Sim Vid Secual GSM Alarm System www.etiger.com...
-
Page 2: Box Content
Audio surveillance of the site from distance 2 x 800 mAh lithium batteries included (8h battery life in standby mode) Specifications Product name Alarm current S3b Sim Secual 340 mA Backup batteries S3b-S Lithium batteries: 3.7 V / 800 mAh x 2 (BL-5B) -
Page 3: Quick Start-Up

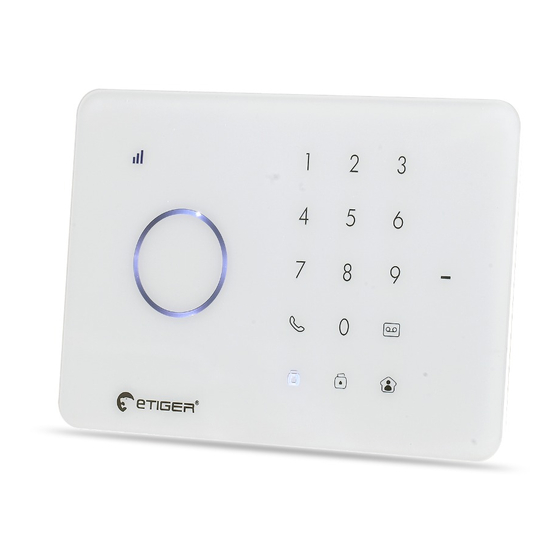

Quick Start-up... - Page 4 Control Panel Layout (Front) GSM Signal Indicator Searching GSM network: Blinks once every second GSM signal is normal: Blinks once every two seconds Status Indicator Touch Keypad RFID player / Play Voice Memo Record Voice Memo / Connection Button Stay Arm (Home Mode) Disarm Call Control Panel Layout (Back)
-
Page 5: Connect Your System
Important Before using the S3b Sim Secual, you need to purchase a SIM card that works on the GSM network with 850 / 900 / 1800 / 1900 MHz frequency. We recommend you to subscribe to a plan with unlimited texts and one hour of voice. For more information, please contact your local reseller. - Page 6 By app In the app, click on “Arm” or “Disarm” to respectively arm or disarm the system. The app is available for download on the App Store and Google Play (more information on etiger.com). Register Wireless Accessories & RFID Tags Type your password followed by the Connection button "...
-
Page 7: Speed Dial
Speed Dial This function is only available when the system is disarmed. Press the Call button “ ” on the control panel for 3 seconds: the panel auto-dials the first stored phone number. Press the Call button “ ” to end the call. Hands-Free Phone Call from the Panel This function is only available when the system is disarmed. -
Page 8: Control Panel Operations
Control Panel Operations... -
Page 9: Disarm The System
Arm the System Press the Arm button " " on the control panel. The control panel beeps once: the system is armed. Note If the Entry / Exit Delay is activated, only the Delay zone will be armed after the delay set (refer to instructions on page 16 of this manual “Entry / Exit Delay”). -
Page 10: Control By Phone Call
Control by Phone Call Method 1 When an alarm has been triggered, the control panel dials the pre-stored phone numbers. When you take the call, you can control the panel from distance according to the instructions in the table below. Method 2 1. - Page 11 SMS Operations...
- Page 12 SMS Operations IMPORTAnT: BEFORE USInG FOR THE FIRST TIME INSERT A SIM CARD IN THE CONTROL PANEL. MAKE SURE THE SIM CARD DOES NOT REQUIRE ANY PIN CODE. SAVE A PHONE NUMBER FOR SMS NOTIFICATIONS. (Refer to instructions on the opposite page) Only stored numbers can control and configure the system.
- Page 13 Store Phone numbers for SMS Disarm the System notifications Send: Send: System disarmed. SMS numbers: Arm the System Send: Copy, paste, then edit (case sensitive): SMS numbers: 1.067890033 2.067890022 System armed. 3.067890011 4.067890000 Home Mode Send: Note The first SMS number will receive SMS notifications when the system is disarmed by RFID tag.
- Page 14 Settings Enquiry Store Phone numbers Send: Send: System:Disarmed Phone numbers: AC power:on Note The values indicated hereinabove will change after having set up the system. Copy, paste, then edit (case sensitive): Phone numbers: 1.067890033 2.067890022 3.067890011 4.067890000...
- Page 15 Rename Zones SMS Alert for Accessory Low Battery (available for two-way acessories such as Motion Detectors) Send "91~99". For example for zone 1, send: For accessories assigned to zones that have been renamed, an SMS will be sent under the format “Zone number zone name...
-
Page 16: Entry And Exit Delay Time
Rename RFID Tag Entry and Exit Delay Time Send: Send: Rename RFID tags: Entry delay time(0-300sec):0 Exit delay time(0-300sec):0 Copy, paste, then edit (case sensitive): Copy, paste, then edit (case sensitive): Entry delay time(0-300sec):10 Exit delay time(0-300sec):20 Rename RFID tags: 1.Tom 2.Nurse 3.Nancy... -
Page 17: Change The Password
Siren Volume and Ringing Time Change the Password Send: Send: Siren volume(0=Mute,1=High):1 Disarm password (4 digits): Siren ringing time(1-9min):3 1234 Copy, paste, then edit Copy, paste, then edit (case sensitive): (case sensitive): Siren volume(0=Mute,1=High):0 Disarm password (4 digits): Siren ringing time(1-9min):1 8888... - Page 18 Change System Language Restore System to Factory Settings by SMS Send the code corresponding to the language you want to set. For example, for Send: English, send “0001”. 0000 0001 The settings will be restored to default Refer to the table below for the full list of values.
- Page 19 Accessories...
-
Page 20: Wireless Remote Control
Wireless Remote Control Disarm LED indicator Home Mode Arm the system Press the Arm button " " to arm the alarm system. The LED indicator lights up (the control panel beeps once). The system is armed. If an intruder is detected, the siren rings out. - Page 21 Mute Mode Press the Home Mode button " " and the Arm " " or Disarm " " button immediately after. Doing so, the control panel does not ring out when you arm or disarm your system. Emergency Mode Regardless the status of the system, the alarm is triggered when the SOS button "SOS"...
-
Page 22: Wireless Motion Detector
Wireless Motion Detector Features The ES-D1A is a high performance wireless motion detector boasting a digital dual-core fuzzy logic infrared control chip with intelligent analysis. This technology identifies interferences created by body motion and reduces the false alarm rate. With automatic temperature compensation and anti-air turbulence technology, it easily adapts to environmental changes. - Page 23 Usage Open the case and remove the battery activation strip. Self-testing will start for 30 seconds. When the sensor is in operation, if it is triggered more than twice within 3 minutes, it switches to standby mode to save power. If no movement is detected within the next Connect Button 3 minutes, the sensor goes back to working...
- Page 24 Test A. After the installation, turn the detector on. After one minute of self-testing, press the test button, walk in the scope of detection and watch the LED indicator to make sure the detector is working. B. The LED indicator blinks once when body movement is detected. C.
-
Page 25: Wireless Door / Window Contact
Wireless Door / Window Contact Features The ES-D3A is a Door / Window Contact that can be installed on doors, windows, and any other objects that open and close. The sensor sends signals to the control panel when the magnet is separated from the transmitter. - Page 26 Installation Open the case and remove the battery activation strip. Mount the sensor on the door and the magnet on the door frame. Make sure the magnet is placed above the transmitter. Mount the magnet max. 1 cm away from the transmitter and secure the transmitter and magnet with double- sided tape or screws.
- Page 27 Your eTiger security systems supports additional indoor and/or outdoor sirens so to enable you to extend your system according to your needs. To register an additional eTiger siren, refer to the instructions provided in the manual that comes with your siren.
- Page 28 Zone Setup of Accessories Every detector can be assigned to 4 different categories of zones: Home Mode Zone, Single Delay Zone, Normal Zone and 24hZone. To assign a detector to a zone, open its case and move its jumpers according to the drawing below: Home Mode zone Delay zone Normal zone...
-
Page 29: Safety And Troubleshooting
Safety and Troubleshooting... - Page 30 6 of this manual to connect the the system panel RFID tag to the control panel If you are experiencing issues that are not described in the FAQ above, visit etiger.com download the latest update of this user manual and for additional support.
- Page 31 Precautions For a safer use of the product and to optimize the lifespan of the product, we recommend you to follow the precautions below: The wireless accessories must be connected to the control panel. Low power voltage may affect transmission distance. Do not press the SOS key on the remote control if it is unnecessary to avoid disturbing neighborhood.
- Page 32 European Technical Adaptation Committee (TAC). Manufactured in China. Images, illustrations and text are non-contractual. ETIGER and the ETIGER logo are registered trademarks and the property of ETIGER. Copyright © 2015 ETIGER. All rights reserved. ETIGER EUROPE Rue de la Loi, 25, 7100 La Louvière, Belgium...
- Page 33 www.etiger.com...
