Summary of Contents for eTIGER S3b

  • Page 1 S3b Sim Secual Product Training...
  • Page 2 Index Presentation of the System Quick Start Guide Accessories Everyday Use Standalone Systems...
  • Page 3 Connected to your smartphone Interact with your system everywhere you are Control by phone call, SMS, app SIM card required, on the GSM net- work Protection 24/7 Easy to install. Easy to setup System installed in a few minutes 2 x Lithium-ion backup batteries Up and running in case of power failure Does not require a professional installer Wireless accessories...
  • Page 4 Communication by SIM card GSM Alarm System Protect your home easily Control from distance by phone call, app or SMS Installation in a few minutes Up to 50 wireless accessories with secure connection Built-in 100 dB siren Backup batteries in case of power failure Perfect for homes and small business premises.

  • Page 5: Box Content

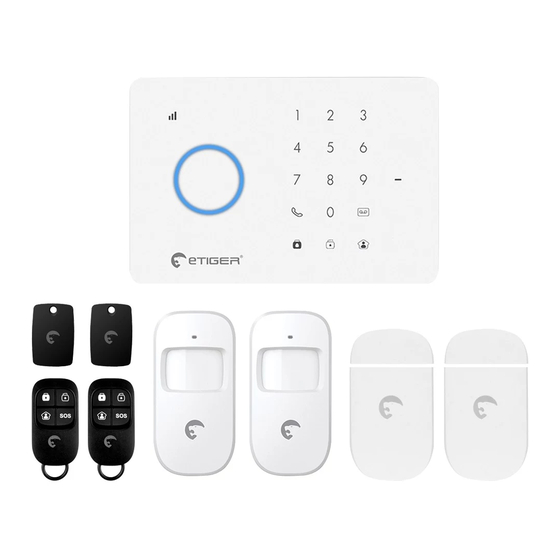

    Motion Detectors Door/Window Contacts Remote Controls RFID Tags Box content S3b Control Panel x1 Motion Detectors x2 Door / Window Contacts x2 Remote Controls x2 RFID Tags x2 AC Adapter x1 Documentation SIM card not included S3b Sim Vid Secual...
  • Page 6 Quick Start Guide...
  • Page 7 Get a SIM card (GSM) and remove the SIM PIN lock Disable SIM security on SIM card Your PIN code may be requested All you need is a basic voice and text plan, no data required SIM card not included (on the GSM network) Control panel’s SIM card Settings...
  • Page 8 Insert the SIM card in the control panel Make sure the control panel is off Insert the SIM card according to the drawing at the back of the control panel...
  • Page 9 Plug your control panel Connect the AC Adapter Turn your control panel on Use the 12 Volts power supply with the label “Control Panel”...

  • Page 10: Mount The Control Panel

    Mount the control panel Make sure the control panel is firmly fixed The tamper switch will now trigger the alarm if the panel is removed Make sure the GSM signal is sufficient (the LED blinks once every 2 seconds)

  • Page 11: Change The Language

    Change the language Send the language code by SMS to your control panel: English: 0001 Swedish: 0007 French: 0002 German: 0008 Danish: 0004 Spanish: 0009 Dutch: 0005 Finnish: 0010 Italian: 0006 Norwegian: 0011 The control panel confirms and replies “OK” Blinks once every second: searching GSM network Blinks once every two seconds: GSM reception is ready 0001...
  • Page 12 Save a SMS number Send 6 by SMS to your control panel Edit the reply, and send it back The control panel confirms and replies “OK” Only the SMS numbers saved can control the system and receive notifications in case of alarm SMS numbers: SMS numbers:...
  • Page 13 Accessories...
  • Page 14 Accessories Register additional accessories (optional) Type your Access Code + on the control panel Trigger your accessory within 15 seconds The control panel beeps once: your accessory is registered in the control panel Default Access Code: 1234 (can be changed for optimal security)
  • Page 15 ES-D1A Wireless Motion Detector Features Infrared motion detector Detects movements inside a room Radio-frequency: 433 MHz (wireless) Transmission distance: up to 80 m Powered by batteries (2 x AA 1.5V LR6) How to register in the control panel Press the button at the back...
  • Page 16 ES-D2A Pet-immune Motion Detector Features Infrared motion detector Detects human movements inside a room Does not detect pet (up to 25 kg) Radio-frequency: 433 MHz (wireless) Transmission distance: up to 80 m Powered by batteries (2 x AA 1.5V LR6) How to register in the control panel Press the button at the back...

  • Page 17: Door / Window Contact

    ES-D3B/C Door / Window Contact Features Detects the opening of a door, window, or any object that opens Radio-frequency: 433 MHz (wireless) Transmission distance: up to 80 m Powered by battery (1 x AAA) How to register in the control panel Separate the magnet from the transmitter...
  • Page 18 ES-D4A Long-Distance Door / Window Contact Features Detects the opening of a door, window, or any object that opens Radio-frequency: 433 MHz (wireless) Transmission distance: up to 300 m Powered by battery (1 x A23) How to register in the control panel Separate the magnet from the transmitter...

  • Page 19: Smoke Detector

    ES-D5B Smoke Detector Features Connected to your alarm system or standalone In case of fire, rings out and sends a signal to your alarm system Volume: 85 dB Radio-frequency: 433 MHz (wireless) Transmission distance: up to 100 m Powered by batteries 2 x AA 1,5 V (1-year battery life) How to register in the control panel Press the Test button of the detector...

  • Page 20: Remote Control

    ES-RC1 Remote Control Features Arms or disarms the alarm system Activates the Home Mode Radio-frequency: 433 MHz (wireless) Transmission distance: up to 80 m Powered by battery (1 x CR2025) How to register in the control panel Press any key of the remote control...
  • Page 21 ES-T1A Disarming Tag (RFID) Features Disarms the alarm system Can be renamed Notifications by SMS upon disarming Does not require power supply (no battery required) How to register in the control panel Swipe it in front of the control panel...

  • Page 22: Wireless Keypad

    ES-K1A Wireless Keypad Features Additional access point in your home Functions: Arm, Disarm, Home Mode and Trigger the alarm Include a RFID tag reader Radio-frequency: 433 MHz (wireless) Transmission distance: up to 80 m Powered by batteries (3 x AAA) How to register in the control panel Type your User Code 1, 2...

  • Page 23: Indoor Siren

    ES-S6A Indoor Siren Connection button Features Ideal for large flats or houses Transmission distance: up to 80 m (in open area) Powered by AC plug (Built-in backup battery 4.2 V) Connect the siren to the control panel Press briefly the Connect Button on the siren The siren’s LEDs light up: the siren is now in Connection Mode Press “Arm”...
  • Page 24 ES-S7A Outdoor Siren Connection button Features Ideal for houses Can be used as additional siren or standalone alarm system Powered by AC adaptor (Built-in backup battery, 7.4 V 800 mA) Connect the siren to the control panel Press briefly the Connect Button on the siren The siren’s LEDs light up: the siren is now in Connection Mode Press “Arm”...
  • Page 25 ES-CAM2A HD Wi-Fi Camera Features Wi-Fi connection HD 720p streaming 8 LEDs for night vision Powered by AC Adaptor Unlimited live streaming with motion detection alerts Record a video or a photo on your smartphone (or in the cloud in option) Internet connection required (4G or Wi-Fi recommended)
  • Page 26 ES-CAM3A Outdoor HD Wi-Fi Camera Features Wi-Fi connection IP 66 certified: completely sealed from dust and protected against strong jets of water and rain HD 720p streaming / Digital zoom x2 24 LEDs for night vision Powered by AC Adaptor Unlimited live streaming with motion detection alerts Record a video or a photo on your smartphone (or in the cloud in option)
  • Page 27 ES-CAM4A Motorized HD Wi-Fi Camera Features Wi-Fi connection Vertical / horizontal rotation HD 720p streaming / Digital zoom x2 6 LEDs for night vision Powered by AC Adaptor Unlimited live streaming with motion detection alerts Record a video or a photo on your smartphone (or in the cloud in option) Internet connection required (4G or Wi-Fi recommended)

  • Page 28: Everyday Use

    Everyday use...
  • Page 29 Control your alarm Full control from any mobile phone By SMS By phone call (your Access Code will be requested) To control your system by phone call, read the user manual first.
  • Page 30 Control your alarm Easier control with the app On Android On iOS Only a text plan is required (no data, no internet connection)
  • Page 31 Control your cameras Easy setup / Easy control Powered by iSecurity+ Alert in case of motion detection Live streaming in HD 720p Possibility to record a video or take a photo Access from any web browser Optional cloud storage for $9.99/ month...

  • Page 32: Standalone Systems

    Standalone systems...
  • Page 33 A basic and affordable alarm system 1 x Siren 1 x Remote Control or more 1 x Detector or more Up to 50 accessories...

  • Page 34: Set Up Your System

    Activate the Connection Mode Trigger the accessory Activate the Connection Mode Trigger the accessory Set up your system Press briefly the Connect Button of the siren The siren’s LEDs light up: the siren is now in Connection Mode Trigger your detector or your remote control Press the Disarm Button to finish to install...

  • Page 35: Additional Support

    Additional support More support online On the FAQ online In the user manual: find all the languages available online With the online Connection Assistant for our accessories...
  • Page 36 ETTRS3b-EN20160427-2.0 Product specifications subject to change (design, color, function, etc.). Images and text are non-contractual. Copyright © 2016 ETIGER. All rights reserved. All brands and product names are registered trademarks and the property of their respective owners.
  • Page 37 www.etiger.com...
