Summary of Contents for eTIGER S5
- Page 1 WIFI+GSM Security Alarm System www.etiger.com...
-
Page 2: Box Contents
1 Box contents ES-S5 x1 ES-D2A (Pet-immune motion sensor) x1 ES-D3C(Door/Window contact) x2 ES-RC1 (Remote controls) x2 AC Adapter x1 Crews and anchors Documentation 2 Design TOP View Bottom View... -
Page 3: Specifications
600mAh lithium batteries included for more than 8hours standby mode. 4 Specifications Product name Transmission distance up to 80M in open space Backup batteries S5-GSM+WIFI Lithium Batteries: 7.4V / 600 mAh Power Supply Internal siren Input: AC 110-240V / 50-60 Hz 95dB Output: DC 12V / 1A... -
Page 4: Led Indicator

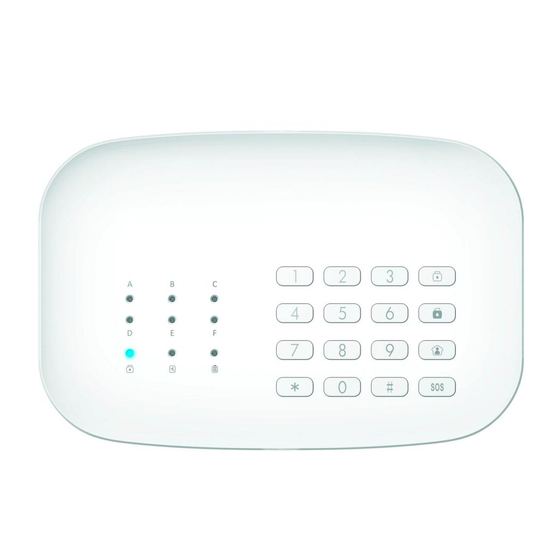

5 LED Indicator Function Function OFF—There is not alarm triggered LED-A Blinking—When the alarm is triggered from Normal Zone sensor LED-B Blinking—When the alarm is triggered from Home Zone sensor Alarm status LED-C Blinking—When the alarm is triggered White LED from Delay Zone sensor LED-D Blinking—When the alarm is triggered from 24H Zone sensor... - Page 5 6 Get your APP ready 6.1 Download APP “etigerhome” on your smart phone. The app is available on the App Store and Google Play. 6.2 Run and install the APP on your smart phone. 6.3 Register by your Mobile number/e-mail address. 6.4 Login and create family.
- Page 6 Step 2. Choose the device which will be add choose “Add +”→”All devices”→”S5” in the APP. Step 3. Set the Wi-Fi network which will be connect Enter Wi-Fi password of the router which the alarm will be connect to, waiting for about 20 seconds to get a response.
- Page 7 Choose Add Device Enter Wi-Fi password Connecting Set Alarm’s Name...
- Page 8 7.2 To connect in AP mode Step 1. Enter Wi-Fi AP Mode: User code1234 + connection button Ensure the system is disarmed, the Blue LED is OFF. After enter Wi-Fi AP mode, the Wi-Fi white LED start fast blinks, now your alarm is ready for network setting.
- Page 9 Enter Wi-Fi Password Connect to SmartLife_xxxx Connecting Set Alarm’s Name...
-
Page 10: App Operation Interface
8 APP Operation Interface Device List Interface Operation interface Settings interface Accessories Interface... -
Page 11: Connect Wireless Accessories
9 Use Alarm system with SIM card You will need a SIM card if you wish to interact with your Alarm system by SMS and phone calls. 8.1 Insert the SIM card in the control panel. 8.2 Plug the AC adapter to the DC Jack. 8.3 Turn on the Power switch. -
Page 12: Daily Use
11 Daily use Arm the system When your system is armed, all detectors are active. By app Connect to your alarm and click on “Arm”. By SMS Send 1 by SMS to the phone number of the SIM card in the control panel. - Page 13 By SMS Send 0 by SMS to the phone number of the SIM card in the control panel.Only saved SMS numbers can disarm the system by SMS. On the control panel User code1234 + Disarm button. By remote control Press on the “Disarm” button of the remote control ( SOS function The SOS function enables you to trigger your alarm immediately.
-
Page 14: Control By Sms
Delete all accessories *20*user code* Clear every connected accessory. Delete RFID tags *21*user code* Clear every connected RFID tag. Delete Remote Clear every connected *22*user code* control Remote control. Delete wireless Clear every connected *23*user code* detector wireless detector. *30*0* Deactivate the siren Siren setup *30*1*... - Page 15 How it works For each setting you want to modify by SMS, it works as below: - Send a code by SMS. - The control panel replies you with the corresponding settings currently saved in your alarm. - Copy this SMS and paste it as a reply to the control panel. - Modify the SMS according to the setting you wish to change, before sending back to the control panel.
-
Page 16: Control By Phone Call
14 Control by phone call This function applies only if you are using the Alarm system with a SIM card. This function enables you to control your alarm system by phone call. This can especially be helpful if you are located in an area without Wi-Fi or 3G/4G coverage. - Page 17 On your smartphone (with a SIM card in the control panel) The control panel sends an SMS notification to every SMS number saved. The control panel calls every Phone number saved. If you take that call, you can decide to stop the siren, disarm the system or other functions as listed below, by dialing the corresponding code in Table1.
- Page 18 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. To prevent fire or shock hazards, do not expose this product to rain or moisture.
- Page 19 www.etiger.com...
