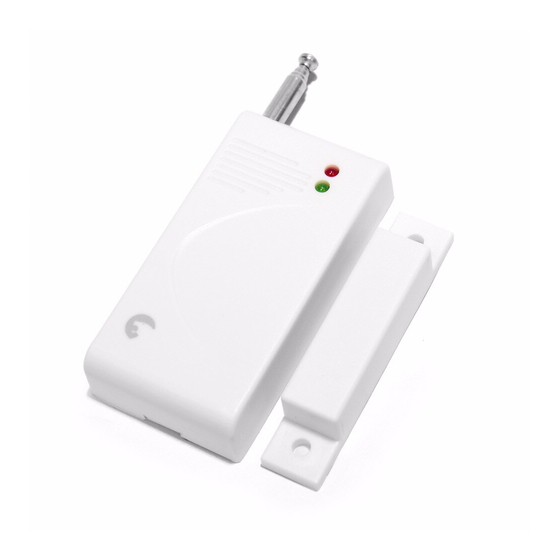

Installation Clean the door on which the detector will be installed. Tear apart the double-sided tape on the front of the magnet and fix it to the desired location. The magnet must be installed less than 2 cm away from the transmitter For stronger installation, the detector can also be mounted with screws: remove the plastic cover of the magnet and drive two screws through it.
The detector is assigned to zone C by default. The detector can be assigned to a different zone depending on your needs. For more information on the zone set up, please refer to the instruction manual of your eTiger alarm system.
Specifications Power Supply: Housing material: DC 12V (A23 12V ABS plastic battery x1) Operating conditions: Static current: Temperature: ≤30 uA -10°C ~ +55°C Relative Humidity: Alarm current: ≤80% (non-con- ≤40 mA densing) Transmission distance Transmitter dimensions: ≤ 300 m (in open area) 92 x 36 x 20 mm Radio-frequency: Magnet dimensions:...
Page 6
Standards This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
