Engine Specifications

Engine Model ...................................................FJ400D
Type.....................................................Four cycle, OHV
Number of Cylinders.................................................... 1
Displacement.......................................................401 cc
Rated Horsepower ............................................... 13 hp
Spark Plug Type ..................................... NGK BPR2ES
Spark Plug Gap ...................028" - .031" (.70 - .80 mm)
Cooling ............................................. Forced Air Cooled
Oil Filter ......................... Cartridge Type Full Flow Filter
Oil Pump.......................... Positive Displacement Pump

Checking the Oil Level

l
Do not overfill the engine. Too much oil can cause the
engine to smoke or cause spark plug fouling.
Do not overfill the engine. Too much oil can allow oil to
enter the air filter enclosure.
The oil should be checked when the engine is warm and the
vehicle parked on a level surface with the parking brake
engaged. Allow oil to drain into crankcase before checking.
Remove the dipstick and wipe off the entire area with a lint free cloth.
Insert the dipstick fully into the dipstick hole and remove. Examine
the level of the oil on the dipstick.
The engine can be operated safely as long as oil is within the safe
operating range as indicated on the dip stick. Do not operate vehi-
cle if oil level is below the safe area indicated on the dipstick.
Oil should be added to bring the level into the safe operating range.
Oil expands as it gets hot, so do not overfill. Check that the oil cap
is firmly in place.
The oil dipstick/fill cap must be in place before operating the engine. Failure to install the dipstick/fill cap will result in
oil contamination or oil being discharged into the engine compartment.

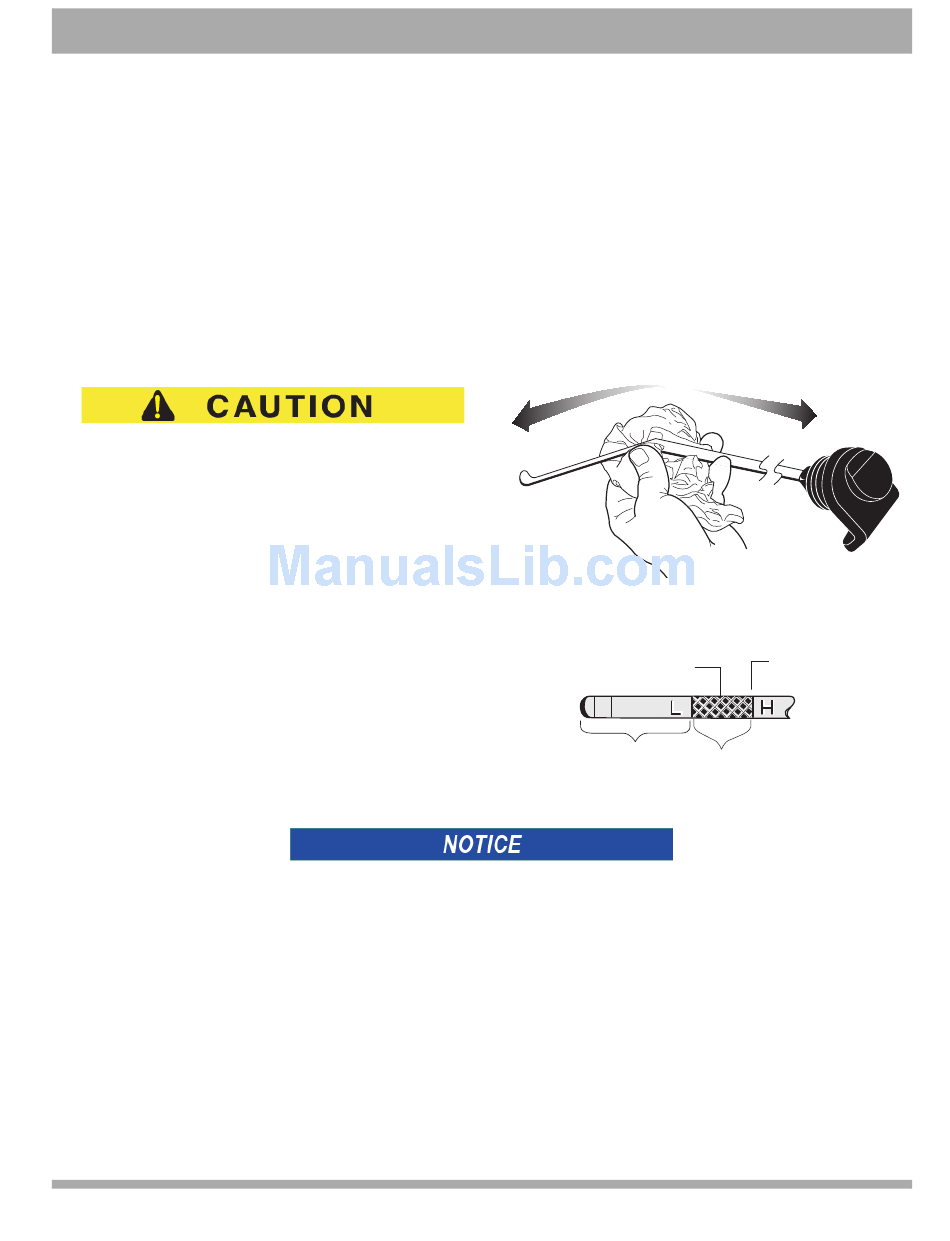

Fill Cold Engine
To This Point
Add Oil
Owner's Guide
MAINTENANCE
Maximum Oil Level
For Hot Engine
Do Not Overfill
Safe
Operating Range
Hot Engine
